2006 Yamaha PW50 (PW50V) Front Wheel Diagram

← All diagrams

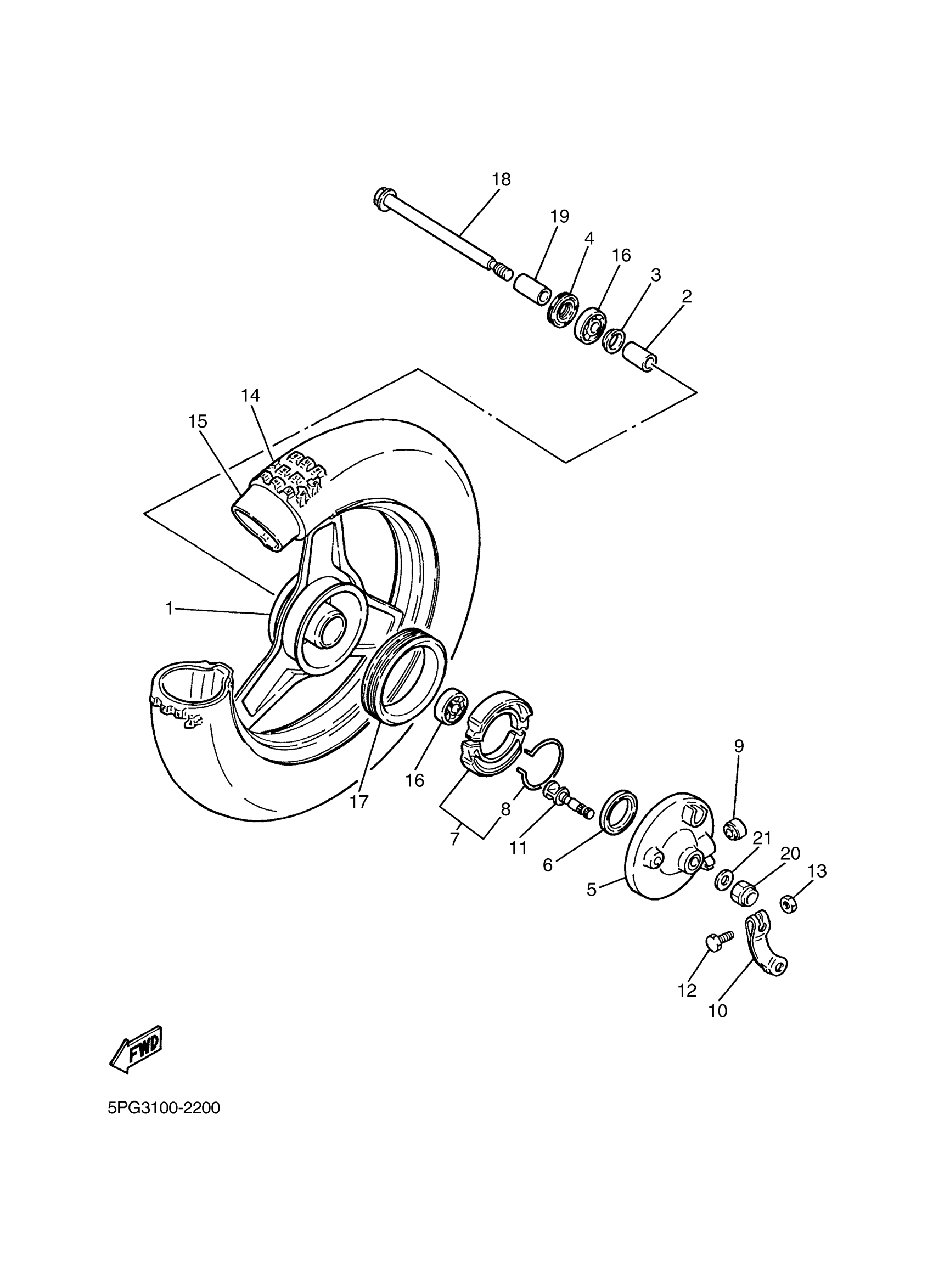

Find the part on the Front Wheel diagram for your 2006 Yamaha PW50 (PW50V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Yamaha PW50 (PW50V) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL COMP.

5M0-25180-01-UJ

1
Out of stock

2

SPACER

90560-10173-00

1
Out of stock

3

FLANGE, SPACER 2

2E9-25116-00-00

1
Out of stock

4

OIL SEAL (2E9)

93106-17015-00

1
Out of stock

5

PLATE, BRAKE SHOE

2T4-25121-00-98

—
Out of stock

6

OIL SEAL(2JA)

93109-34057-00

1
Out of stock

7

BRAKE SHOE KIT

3PT-W253A-10-00

1
Out of stock

8

SPRING, SHOE RETURN

2E9-25133-00-00

1
Out of stock

9

PLUG, TAPER (4X4)

90336-15033-00

1
Out of stock

10

LEVER, CAMSHAFT 1

2T4-25155-00-00

—
Out of stock

11

CAMSHAFT

2E9-25151-01-00

—
Out of stock

12

BOLT(3JK)

97027-05020-00

1
Out of stock

13

NUT, HEXAGON

95317-05600-00

1
Out of stock

14

TIRE (INOUE 2.50-10)

94125-10650-00

1
Out of stock

14

TIRE(BRIDGESTONE2.50-10 4PM29)

94125-10651-00

1
Out of stock

15

TUBE (2.50-10)(3LL)

94225-10270-00

—
Out of stock

16

BRG, R-B 6200

93306-20006-00

—
Out of stock

17

RING 1

2T4-25185-00-00

—
Out of stock

18

AXLE, WHEEL

4N0-25181-01-00

—
Out of stock

19

COLLAR (2E9)

90387-10620-00

—
Out of stock

20

NUT, SELF LOCKING (3G1)

90185-10091-00

—
Out of stock

21

958-69527-00 WASHER, PLAIN

92990-10200-00

—
Out of stock
