2005 Yamaha PW50 (PW50T1) Starter Diagram

← All diagrams

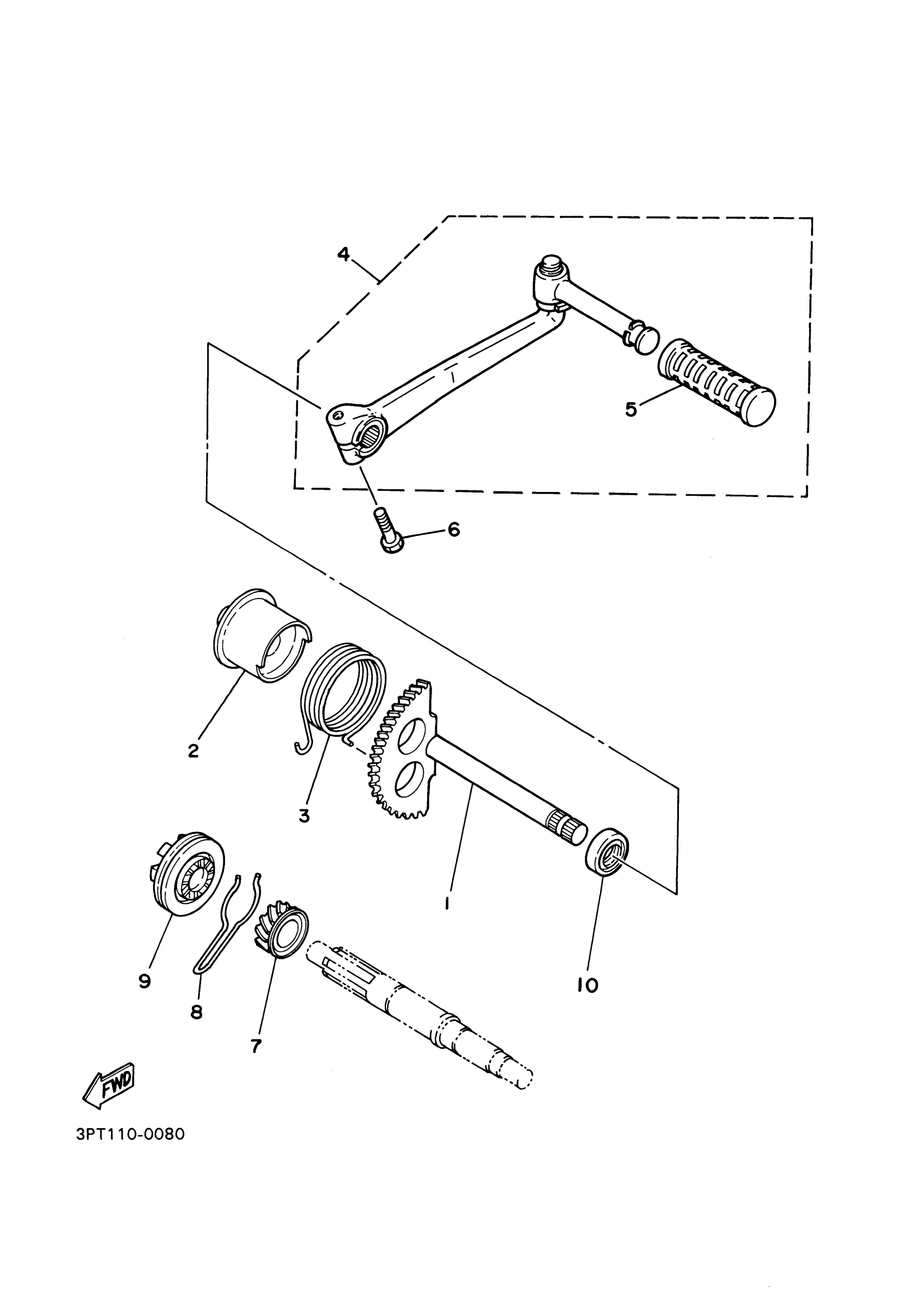

Find the part on the Starter diagram for your 2005 Yamaha PW50 (PW50T1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Yamaha PW50 (PW50T1) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK SHAFT ASSY

3L5-15601-01-00

1
Out of stock

2

GUIDE, SPRING

3L5-15664-00-00

1
Out of stock

3

SPRING, TORSION (3L5)

90508-28399-00

1
Out of stock

4

KICK CRANK ASSY

17J-15620-01-00

1
Out of stock

5

COVER, KICK LEVER

156-15618-01-00

1
Out of stock

6

BOLT, HEXAGON

97017-06025-00

1
Out of stock

7

GEAR, KICK PINION (13T)

3L5-15631-00-00

1
Out of stock

8

CLIP

3L5-15673-00-00

1
Out of stock

9

GEAR, DRIVE

3L5-13178-00-00

1
Out of stock

10

OIL SEAL (15X26X6-102)

93109-15001-00

1
Out of stock
