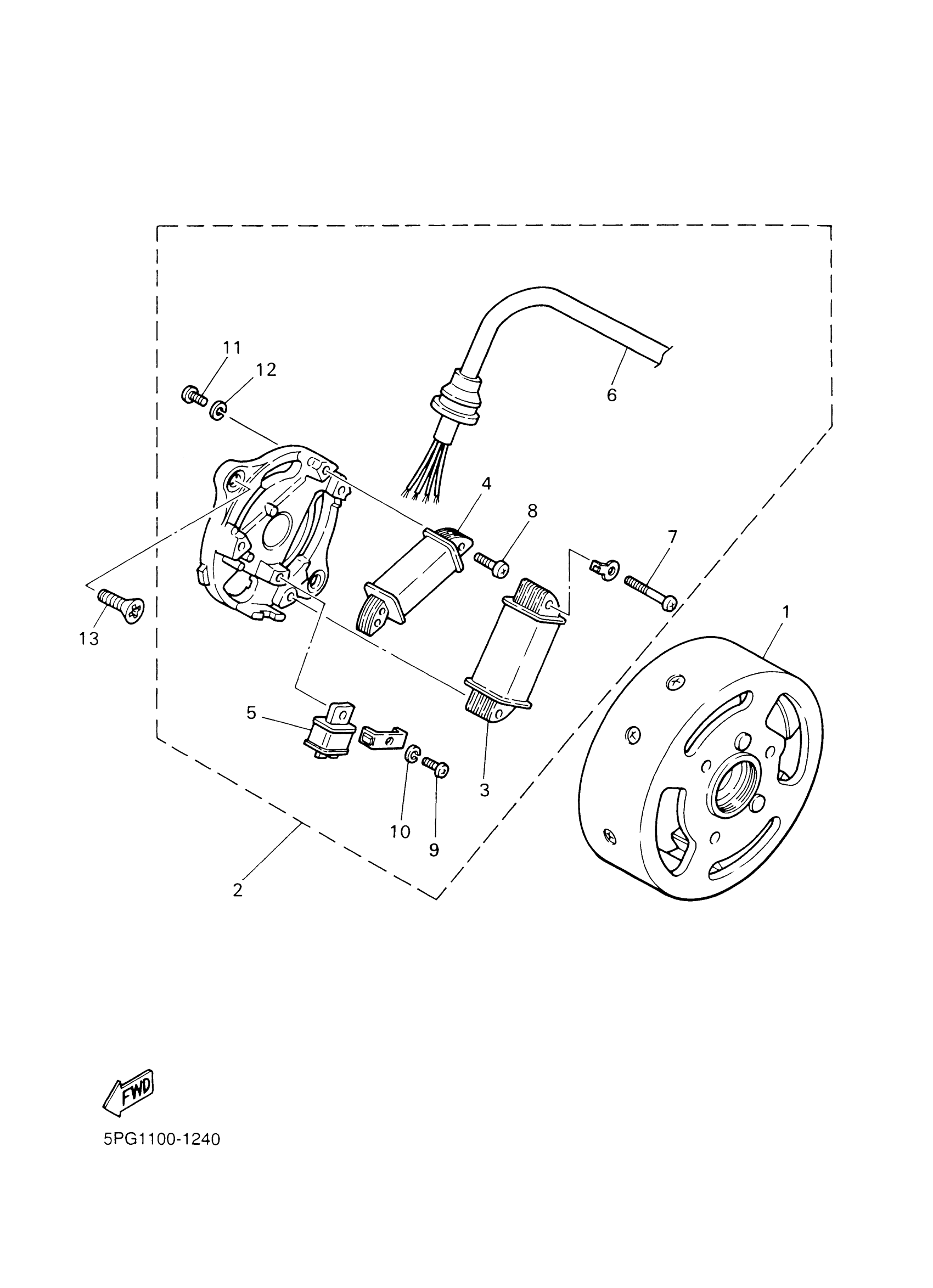

Yamaha PW50S1 (PW50) 5PG7 2004 GENERATOR Diagram

#

Description
Price

1

ROTOR ASSY

3L6-85550-M1-00

Unavailable

2

BASE ASSY

3PT-85560-03-00

Unavailable

3

COIL, LIGHTING 1

4X4-81313-M0-00

Unavailable

4

COIL, CHARGE

4Y4-85520-M1-00

Unavailable

5

PULSER ASSY

3L5-85580-M0-00

$65.05

6

CORD ASSY

3PT-8131X-00-00

Unavailable

7

SCREW, PAN HEAD

98517-04025-00

$2.75

8

SCREW, PAN HEAD

98517-04012-00

$3.05

9

SCREW, PAN HEAD(6G8)

98507-04010-00

$3.06

10

WASHER(6TA)

92907-04100-00

$5.59

11

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.86

12

WASHER(6TA)

92907-04100-00

$5.59

13

SCREW, FLAT HEAD(4EM)

98707-06016-00

$6.22
