Description

Price

1

FUEL TANK COMP.

3PT-24110-00-00

Unavailable

2

CAP ASSY

4X4-24610-00-00

$57.99

3

FUEL COCK ASSY 1

4X4-24500-11-00

$29.99

4

GROMMET (4V1)

90480-18290-00

$8.49

5

WASHER, PLATE

90201-06747-00

$8.49

6

COLLAR (10V)

90387-077F4-00

$9.49

7

BOLT (36E)

97023-06085-00

Unavailable

8

GRAPHIC SET

36E-24250-20-00

Unavailable

9

NUT (J17)

95380-06800-00

$8.49

10

DAMPER, LOCATING 1

3R0-24181-00-00

$8.99

11

BAND, TANK FITTING 1

59V-24173-00-00

$18.49

12

PIPE, FUEL 1

5PG-24311-10-00

$6.99

13

CLIP (4X4)

90467-12052-00

$9.49

14

HOSE (L420)

90445-092K1-00

$12.49

15

CLIP 101235600

90467-08003-00

$10.49

16

SCREW, WITH WASHER (517).

90159-06013-00

Unavailable

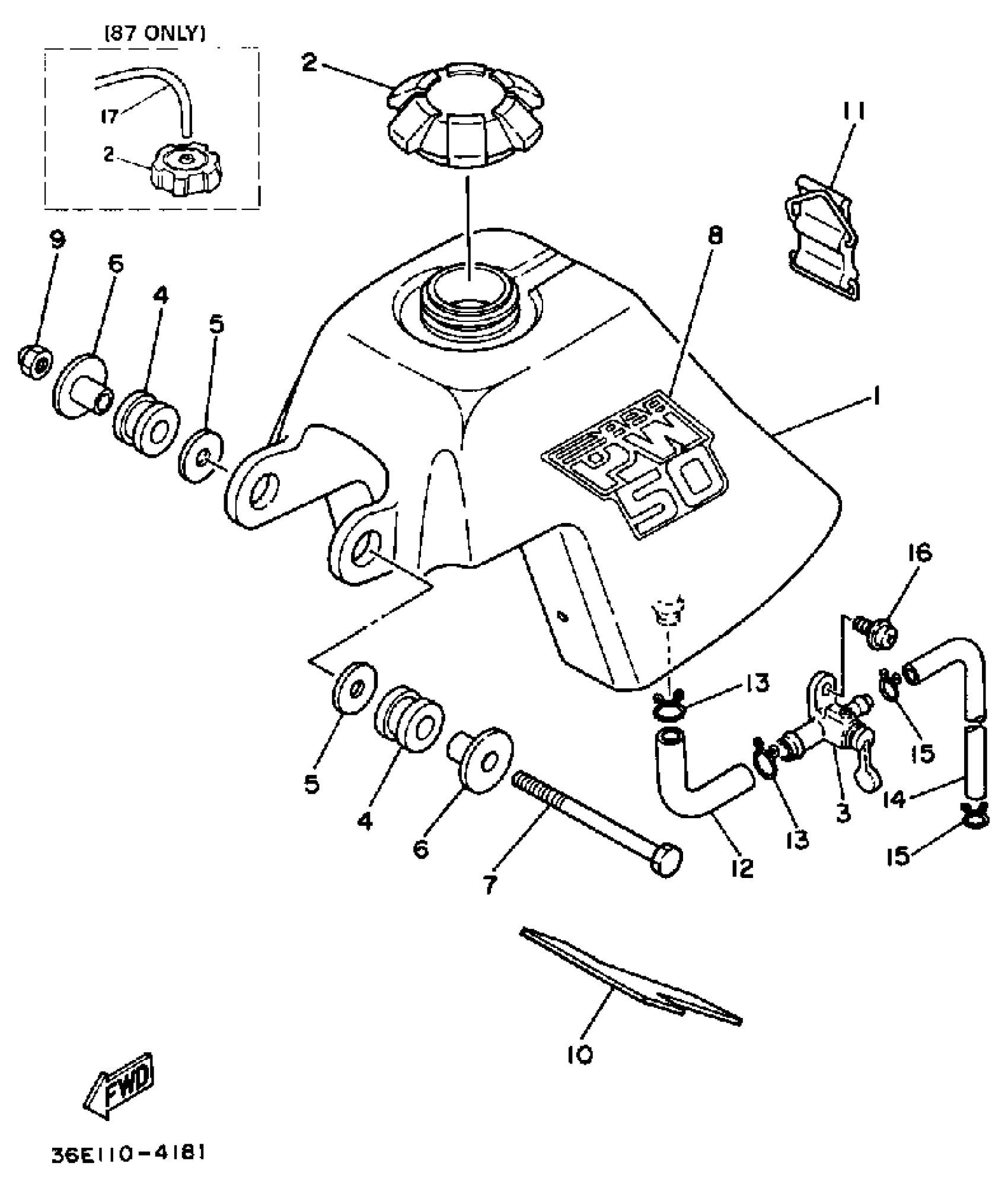

Yamaha PW50S (Y-ZINGER) 1986 FUEL TANK Diagram

FUEL TANK COMP.

CAP ASSY

FUEL COCK ASSY 1

GROMMET (4V1)

WASHER, PLATE

COLLAR (10V)

BOLT (36E)

GRAPHIC SET

NUT (J17)

DAMPER, LOCATING 1

BAND, TANK FITTING 1

PIPE, FUEL 1

CLIP (4X4)

HOSE (L420)

CLIP 101235600

SCREW, WITH WASHER (517).
