2003 Yamaha PW50 (PW50R) Intake Diagram

← All diagrams

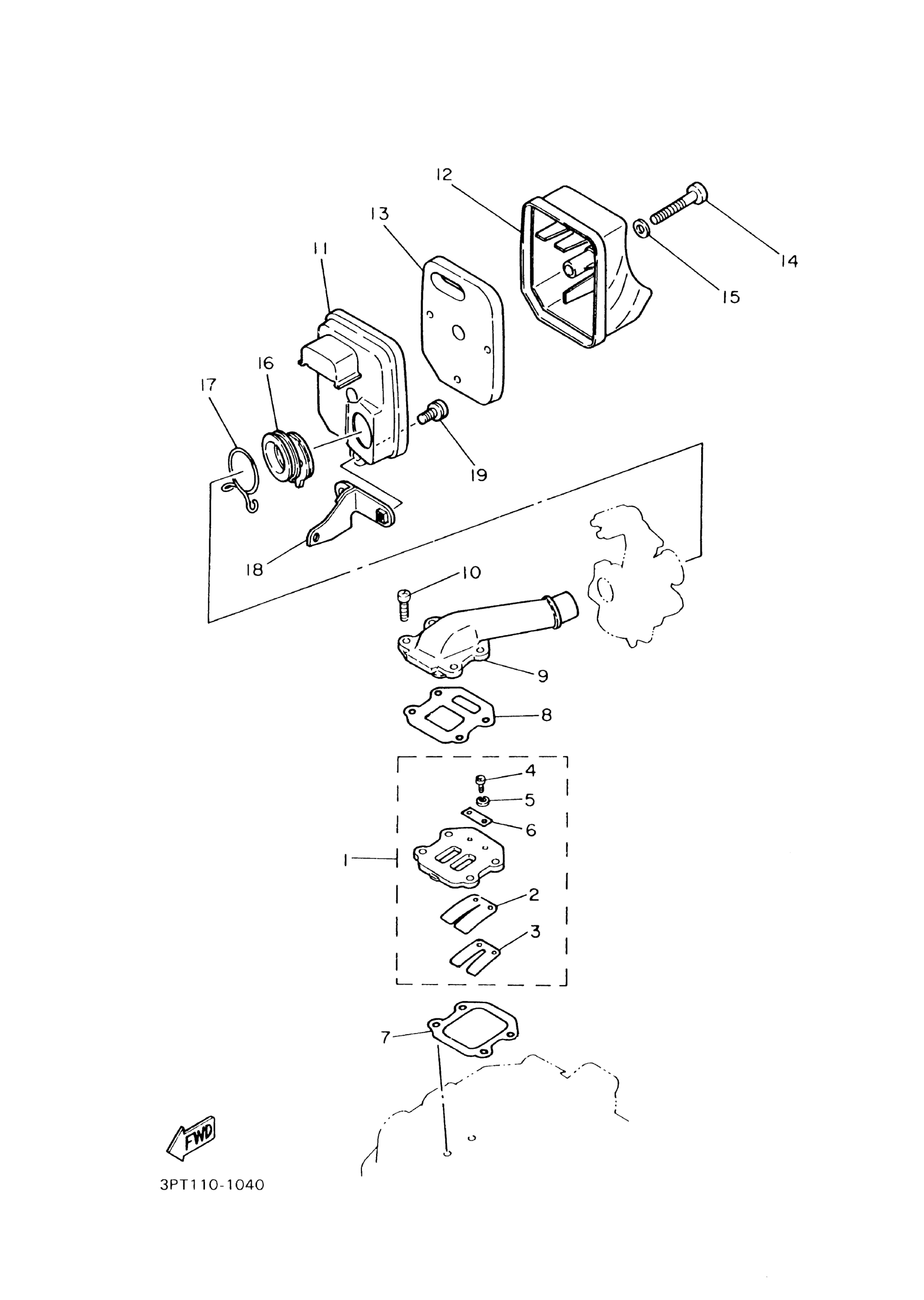

Find the part on the Intake diagram for your 2003 Yamaha PW50 (PW50R), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Yamaha PW50 (PW50R) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

3L5-13610-00-00

1

$69.08

In stock

2

REED VALVE

3L5-13613-00-00

1

$37.52

In stock

3

STOPPER, REED VALVE

3L5-13616-00-00

1

$8.78

In stock

4

SCREW, PAN HEAD(3HH)

98507-03010-00

1
Out of stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

PLATE, REED VALVE

3L5-13624-00-00

—

$6.38

In stock

7

GASKET, VALVE SEAT

3HK-13621-00-00

1

$17.52

In stock

8

GASKET, VALVE SEAT

3L5-13622-10-00

1

$24.83

In stock

9

MANIFOLD

3L5-13555-00-00

1

$56.11

In stock

10

SCREW, PAN

98517-06020-00

1
Out of stock

11

CASE, AIR CLEANER 1

4X4-14411-00-00

1

$26.83

In stock

12

CAP, CLEANER CASE 1

4X4-14412-00-00

1

$22.17

In stock

13

ELEMENT, AIR CLEANER

4X4-14451-00-00

1

$7.12

In stock

14

SCREW, PAN

98507-06045-00

1

$2.63

In stock

15

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

16

JOINT, AIR CLEANER 1

4X4-14453-00-00

—

$20.58

In stock

17

CLIP 296144550000

90467-20023-00

—

$3.55

In stock

18

STAY 1

4X4-14493-01-00

—

$18.97

In stock

19

SCREW, WITH WASHER (517).

90159-06013-00

—

$6.29

In stock
