2002 Yamaha PW50 (PW50P) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 2002 Yamaha PW50 (PW50P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

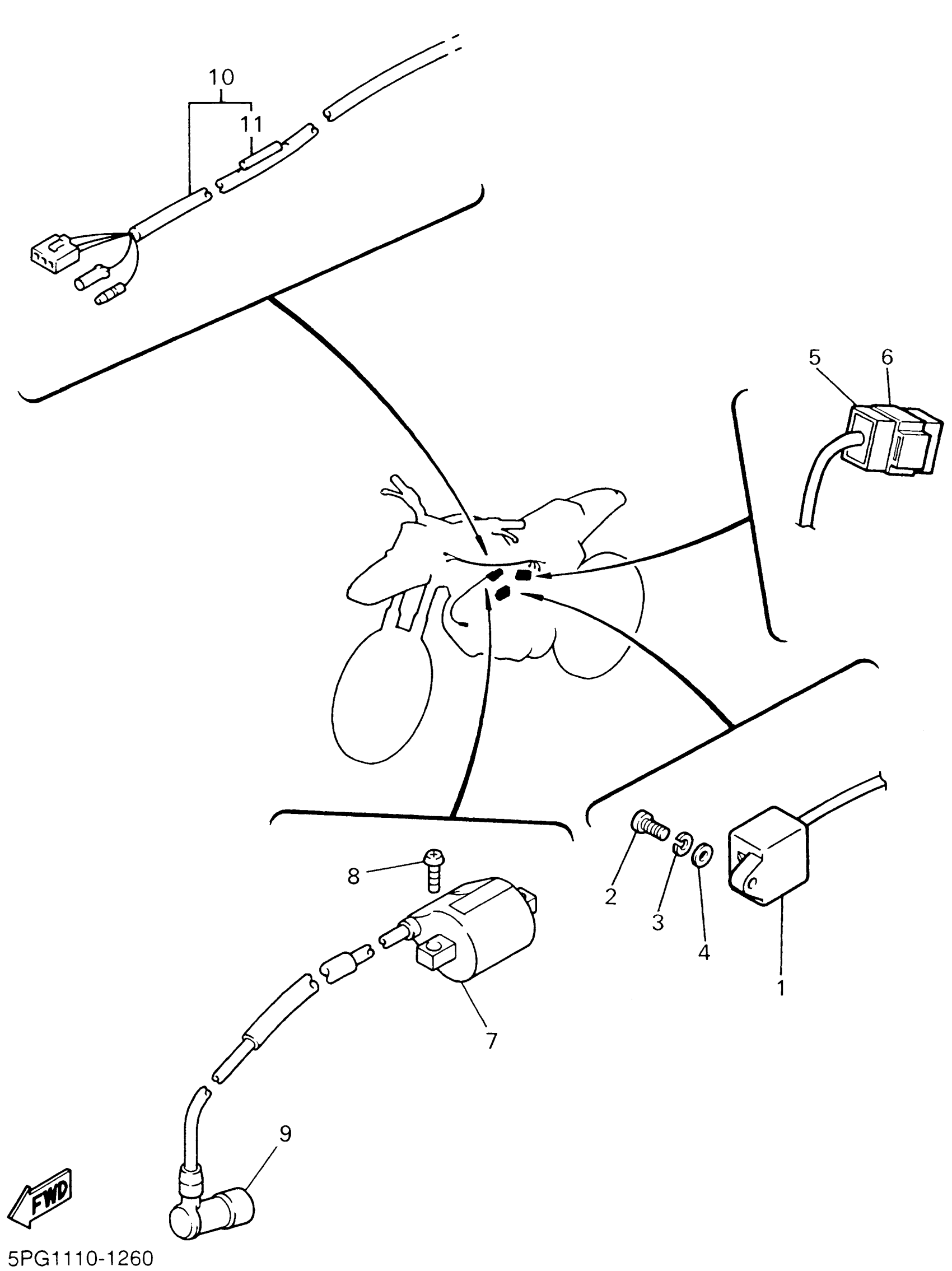

2002 Yamaha PW50 (PW50P) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

C.D.I. UNIT ASSY

3PT-85540-00-00

1

$57.74

In stock

2

SCREW, PAN HEAD(3TJ)

98507-06016-00

1

$2.43

In stock

3

WASHER, SPRING

92907-06100-00

1
Out of stock

4

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

5

CONTROL UNIT ASSY

3PT-85590-00-00

1
Out of stock

6

BAND

4J2-85546-00-00

1

$9.94

In stock

7

IGNITION COIL ASSY

3KJ-82310-13-00

1
Out of stock

8

SCREW, PAN HEAD(3TJ)

98507-06016-00

1

$2.43

In stock

9

PLUG CAP ASSY

166-82370-20-00

1

$32.07

In stock

10

WIRE HARNESS ASSY

3PT-82590-10-00

1
Out of stock

11

RECTIFIER 2

3K7-81980-00-00

—
Out of stock
