2001 Yamaha PW50 (PW50N1) Starter Diagram

← All diagrams

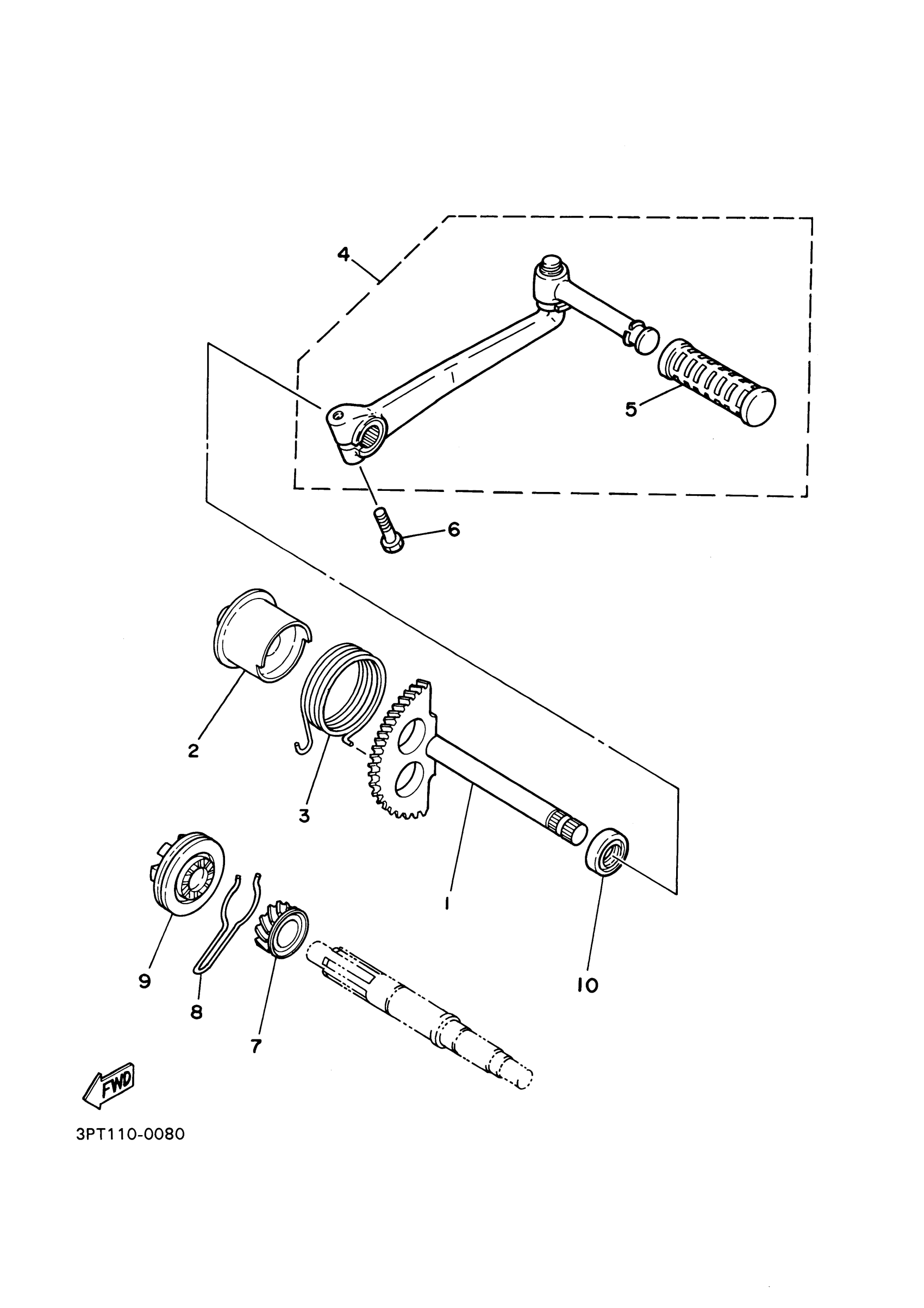

Find the part on the Starter diagram for your 2001 Yamaha PW50 (PW50N1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha PW50 (PW50N1) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK SHAFT ASSY

3L5-15601-01-00

1
Out of stock

2

GUIDE, SPRING

3L5-15664-00-00

1

$18.21

In stock

3

SPRING, TORSION (3L5)

90508-28399-00

1

$10.68

In stock

4

KICK CRANK ASSY

17J-15620-01-00

1

$115.42

In stock

5

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

6

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

7

GEAR, KICK PINION (13T)

3L5-15631-00-00

1

$68.89

In stock

8

CLIP

3L5-15673-00-00

1

$6.83

In stock

9

GEAR, DRIVE

3L5-13178-00-00

1

$124.15

In stock

10

OIL SEAL (15X26X6-102)

93109-15001-00

1

$7.42

In stock
← Handle Switch. Lever Frame →
