2021 Yamaha PW50 (PW50M2) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2021 Yamaha PW50 (PW50M2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

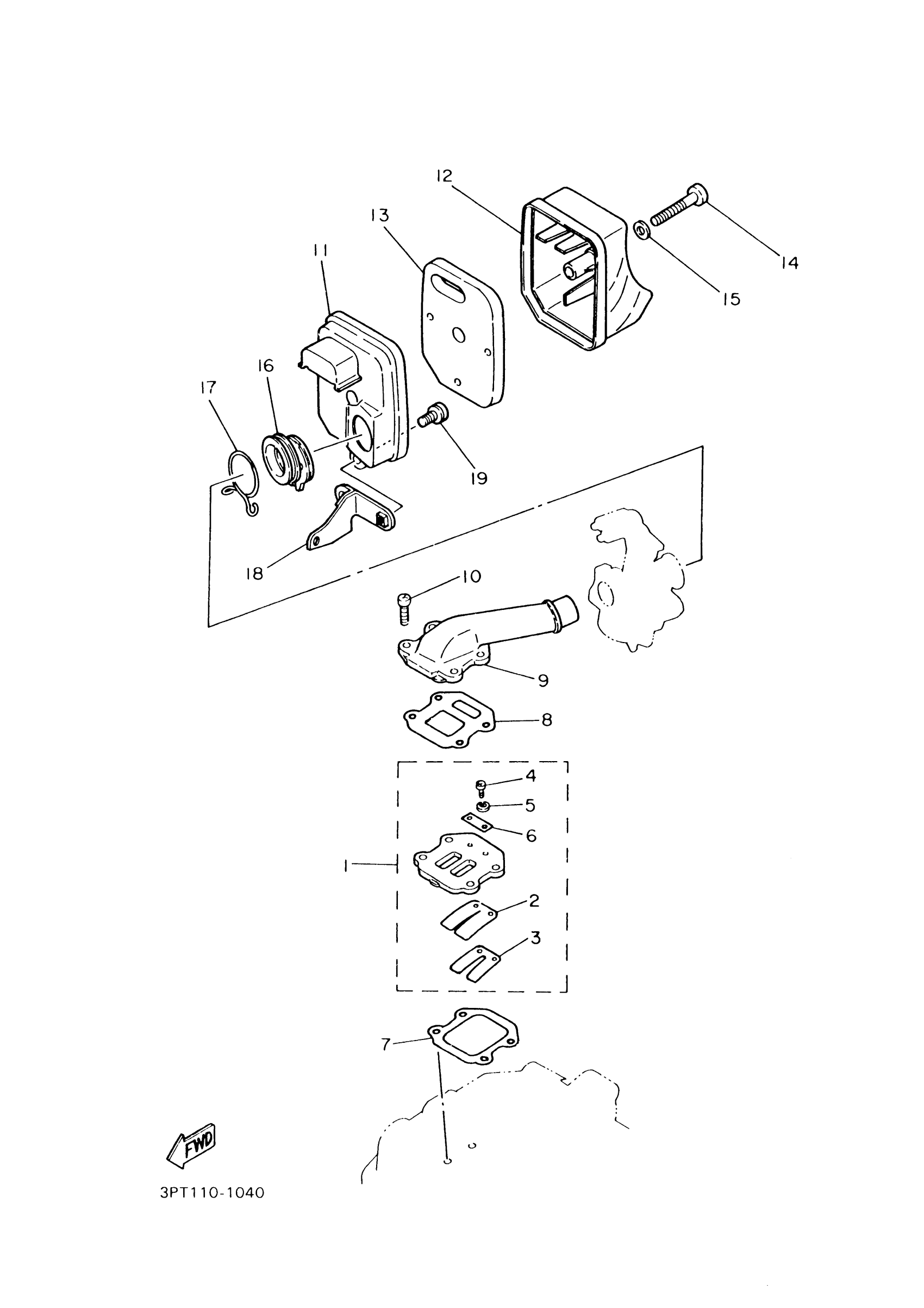

2021 Yamaha PW50 (PW50M2) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

3L5-13610-00-00

1
Out of stock

2

REED VALVE

3L5-13613-00-00

1
Out of stock

3

STOPPER, REED VALVE

3L5-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD(3HH)

98507-03010-00

1
Out of stock

5

WASHER, SPRING

92990-03100-00

1
Out of stock

6

PLATE, REED VALVE

3L5-13624-00-00

—
Out of stock

7

GASKET, VALVE SEAT

3HK-13621-00-00

1
Out of stock

8

GASKET, VALVE SEAT

3L5-13622-10-00

1
Out of stock

9

MANIFOLD

3L5-13555-00-00

1
Out of stock

10

SCREW, PAN

98517-06020-00

1
Out of stock

11

CASE, AIR CLEANER 1

4X4-14411-00-00

1
Out of stock

12

CAP, CLEANER CASE 1

4X4-14412-00-00

1
Out of stock

13

ELEMENT, AIR CLEANER

4X4-14451-00-00

1
Out of stock

14

SCREW, PAN

98507-06045-00

1
Out of stock

15

WASHER(6TA)

92907-06600-00

1
Out of stock

16

JOINT, AIR CLEANER 1

4X4-14453-00-00

—
Out of stock

17

CLIP 296144550000

90467-20023-00

—
Out of stock

18

STAY 1

4X4-14493-01-00

—
Out of stock

19

SCREW, WITH WASHER (517).

90159-06013-00

—
Out of stock
