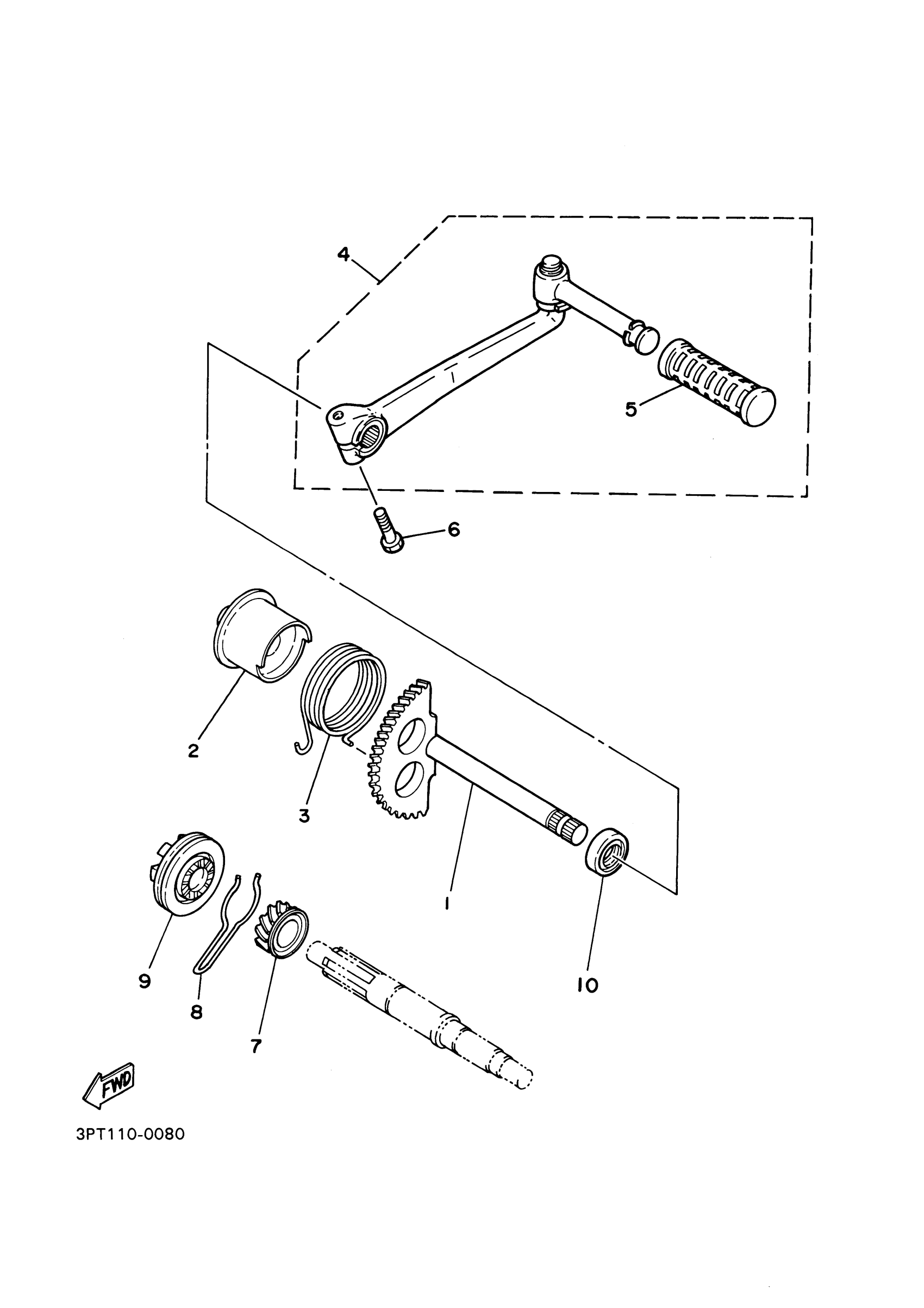

Yamaha PW50K2 (PW50) 2SAG 2019 STARTER Diagram

#

Description
Price

1

KICK SHAFT ASSY

3L5-15601-01-00

Unavailable

2

GUIDE, SPRING

3L5-15664-00-00

$17.47

3

SPRING, TORSION (3L5)

90508-28399-00

$10.04

4

KICK CRANK ASSY

17J-15620-01-00

$115.42

5

COVER, KICK LEVER

156-15618-01-00

$5.99

6

BOLT, HEXAGON

97017-06025-00

$2.78

7

GEAR, KICK PINION (13T)

3L5-15631-00-00

$66.11

8

CLIP

3L5-15673-00-00

$6.83

9

GEAR, DRIVE

3L5-13178-00-00

$124.15

10

OIL SEAL (15X26X6-102)

93109-15001-00

$6.93
