1998 Yamaha Y-Zinger (PW50K1) Generator Diagram

← All diagrams

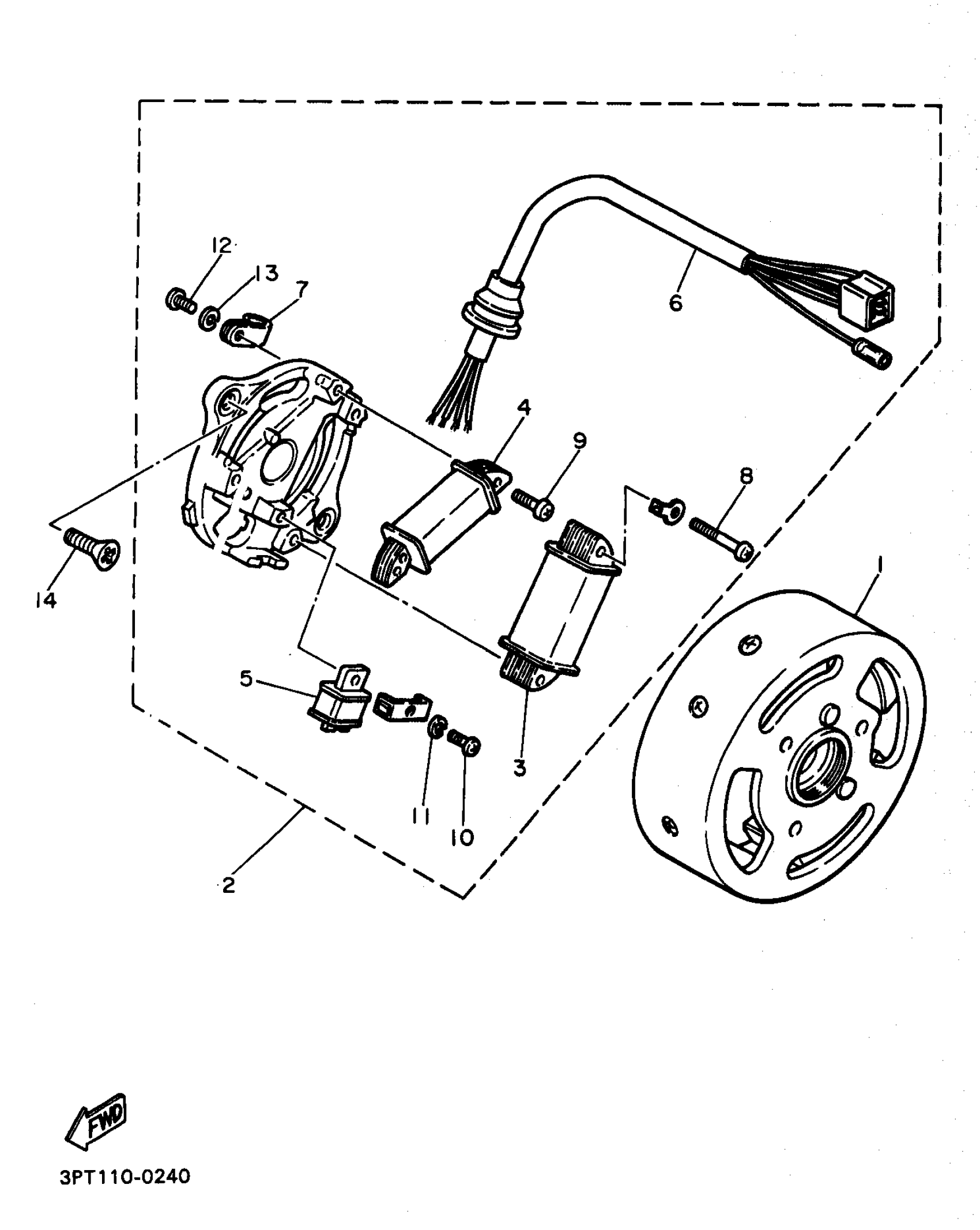

Find the part on the Generator diagram for your 1998 Yamaha Y-Zinger (PW50K1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha Y-Zinger (PW50K1) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSY

3L6-85550-M1-00

—
Out of stock

2

BASE ASSEMBLY

4X4-85560-M1-00

1
Out of stock

3

COIL, LIGHTING 1

4X4-81313-M0-00

—
Out of stock

4

COIL, CHARGE

4Y4-85520-M1-00

—
Out of stock

5

PULSER ASSY

3L5-85580-M0-00

1
Out of stock

6

. CORD ASSEMBLY

4X4-8131X-M0-00

1
Out of stock

7

CLAMP (2T4)

90461-05036-00

—
Out of stock

8

SCREW, PAN HEAD

98517-04025-00

1
Out of stock

9

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

10

SCREW, PAN HEAD (E56)

98580-04010-00

1
Out of stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1
Out of stock

12

SCREW,PAN HEAD

98501-04006-00

1
Out of stock

13

YBS67-4 WASHER, SPRING

92990-04100-00

1
Out of stock

14

SCREW, FLAT HEAD(4EM)

98707-06016-00

1
Out of stock
