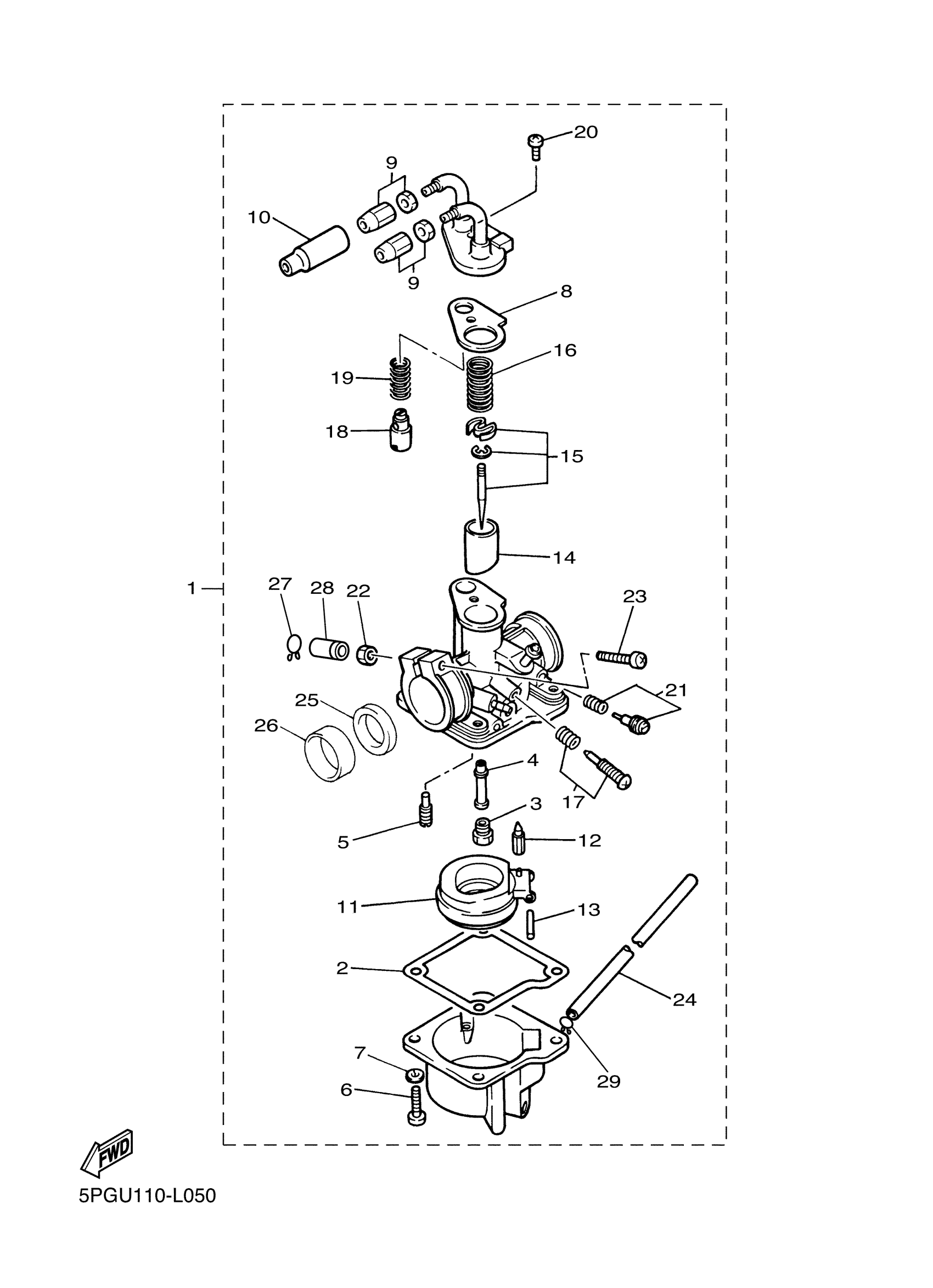

Yamaha PW50J2 (PW50) 2SAD 2018 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

5PG-14101-11-00

$182.39

2

GASKET, FLOAT CHAMBER

3L5-14184-00-00

$24.49

3

JET, MAIN (# 70)

620-14231-14-00

$8.14

4

NOZZLE, MAIN (E-2)

3L7-14141-12-00

$30.45

5

JET, PILOT (# 40)

3L5-14142-40-00

$7.77

6

SCREW, PAN HEAD(N15)

98507-04014-00

$1.24

7

WASHER(6TA)

92907-04100-00

$5.59

8

GASKET, MIXING CHAMBER

3L5-14198-00-00

$7.03

9

CABLE ADJUST SCREW SET

17L-14106-00-00

$6.39

10

CAP

1R0-14169-00-00

$7.07

11

FLOAT

3L6-14185-01-00

$54.82

12

NEEDLE VALVE ASSY

3L5-14190-01-00

$29.63

13

PIN, FLOAT

603-14186-00-00

$6.98

14

VALVE, THROTTLE (CA4.0)

3L5-14112-40-00

$75.45

15

NEEDLE SET

5PG-1490J-00-00

$21.97

16

SPRING, THROTTLE VALVE

174-14131-01-00

Unavailable

17

THROTTLE SCREW SET

36R-14103-00-00

Unavailable

18

PLUNGER, STARTER

58E-14171-00-00

Unavailable

19

SPRING, PLUNGER

127-14135-00-00

Unavailable

20

SCREW, PAN HEAD W/WASHER

97607-05112-00

Unavailable

21

AIR SCREW SET

36R-14104-00-00

Unavailable

22

NUT

98807-05100-00

Unavailable

23

SCREW, PAN HEAD

98517-05030-00

Unavailable

24

HOSE (L200)

90445-05N13-00

Unavailable

25

SEAL

1M3-14997-00-00

Unavailable

26

PACKING, INSULATING

1V3-14271-00-00

Unavailable

27

CLIP

55X-14937-00-00

Unavailable

28

CAP

3XV-14169-00-00

Unavailable

29

. CLIP, PIPE

22F-14139-00-00

$5.68
