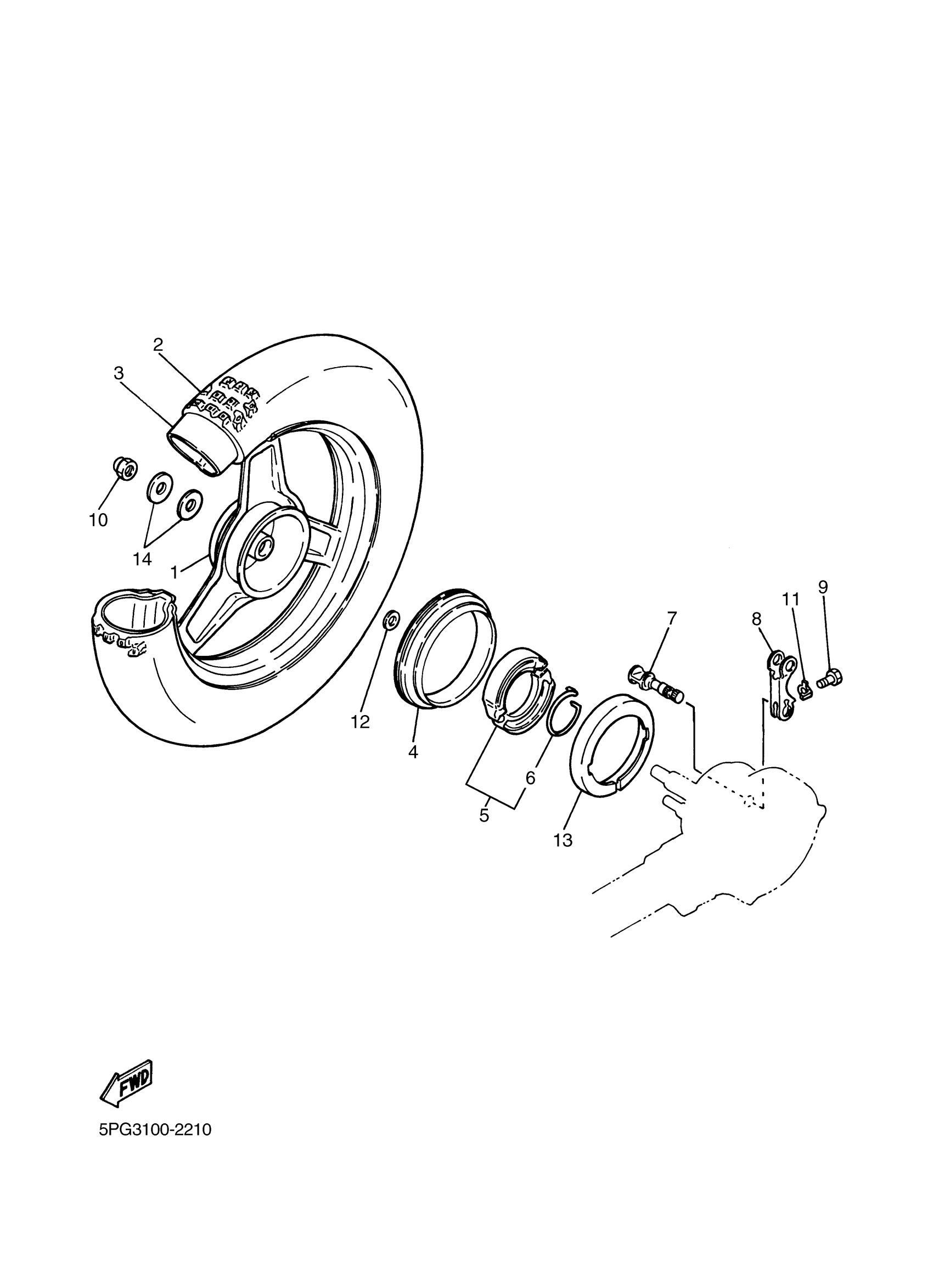

Yamaha PW50H2 (PW50) 2SAA 2017 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL COMP.

5M0-25390-00-33

$282.39

2

TIRE (INOUE 2.50-10)

94125-10650-00

$49.17

2

TIRE(BRIDGESTONE2.50-10 4PM29)

94125-10651-00

$49.17

3

TUBE (2.50-10)(3LL)

94225-10270-00

$24.26

3

TUBE (2.50-10)(3LL)

94225-10270-00

$24.26

4

RING 1

2T4-25185-00-00

$18.15

5

BRAKE SHOE KIT

3PT-W253A-10-00

$19.66

6

SPRING, SHOE RETURN

2E9-25133-00-00

$7.23

7

CAM SHAFT

3L5-25351-00-00

Unavailable

8

LEVER, CAMSHAFT REAR

3L5-25355-00-00

$27.18

9

BOLT (2E9)

90101-05396-00

Unavailable

10

NUT, SELF-LOCKING(1KH)

90185-12134-00

$9.43

11

WASHER, LOCK

2E9-25412-00-00

Unavailable

12

WASHER, PLATE (4L0)

90201-154E8-00

$5.75

13

RING 2

4X4-25336-00-00

$24.30

14

COLLAR (4J2)

90387-125A5-00

Unavailable
