1981 Yamaha PW50 (PW50H) Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 1981 Yamaha PW50 (PW50H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

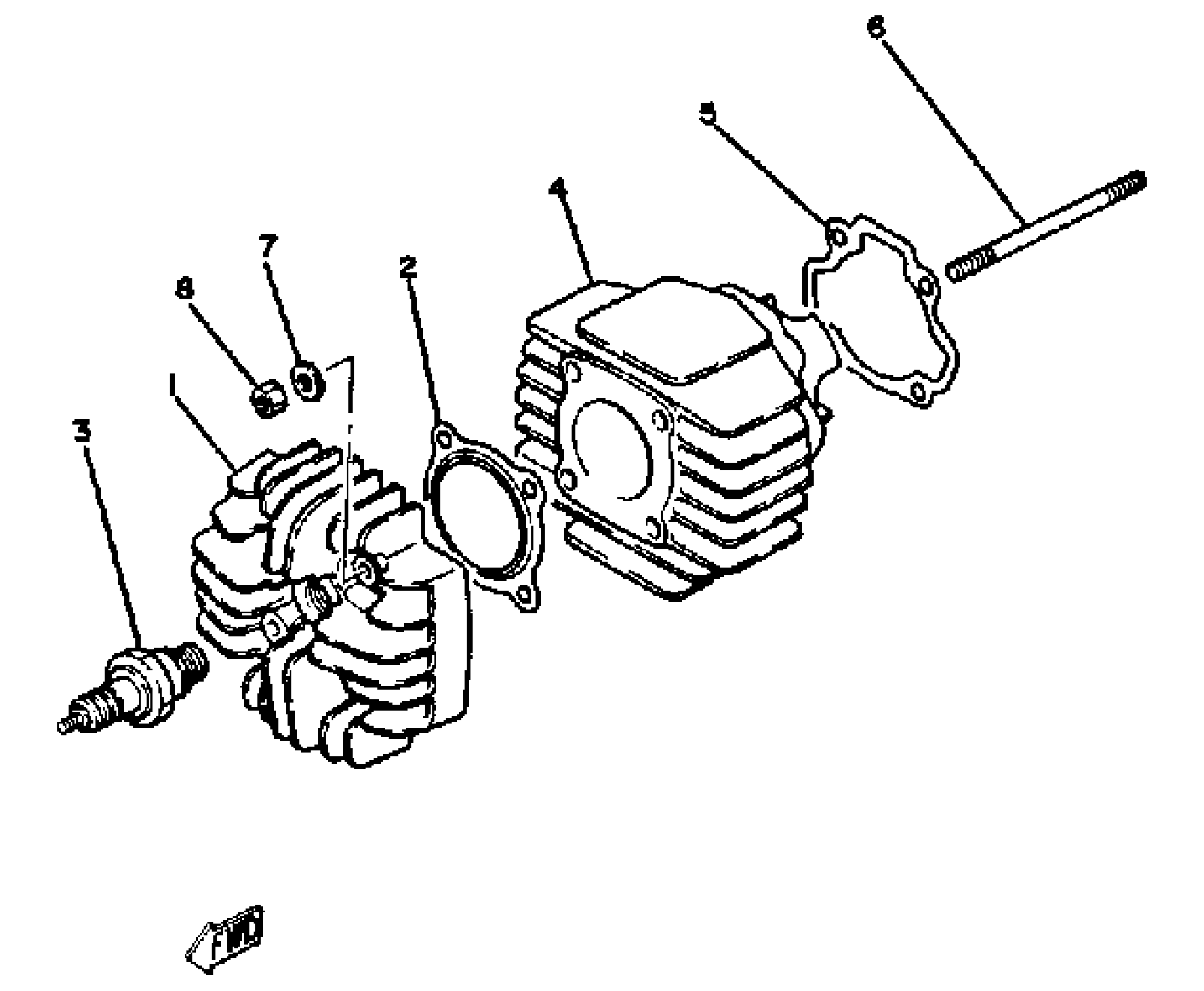

1981 Yamaha PW50 (PW50H) Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER 1

4J2-11111-01-00

1
Out of stock

2

GASKET, CYLINDER HEAD 1

517-11181-01-00

1
Out of stock

3

BPR4HS NGK SPLUG 10PK

BPR-4HS00-00-00

1
Out of stock

4

CYLINDER 1

4J2-11311-01-00

1
Out of stock

5

GASKET, CYLINDER

3PT-11351-00-00

1
Out of stock

6

BOLT, STUD

90116-06269-00

1
Out of stock

7

WASHER, PLATE

90201-06045-00

1
Out of stock

8

NUT, HEXAGON

95380-06600-00

1
Out of stock
