2016 Yamaha PW50 (PW50G2) Steering Handle Cable Diagram

← All diagrams

Find the part on the Steering Handle Cable diagram for your 2016 Yamaha PW50 (PW50G2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

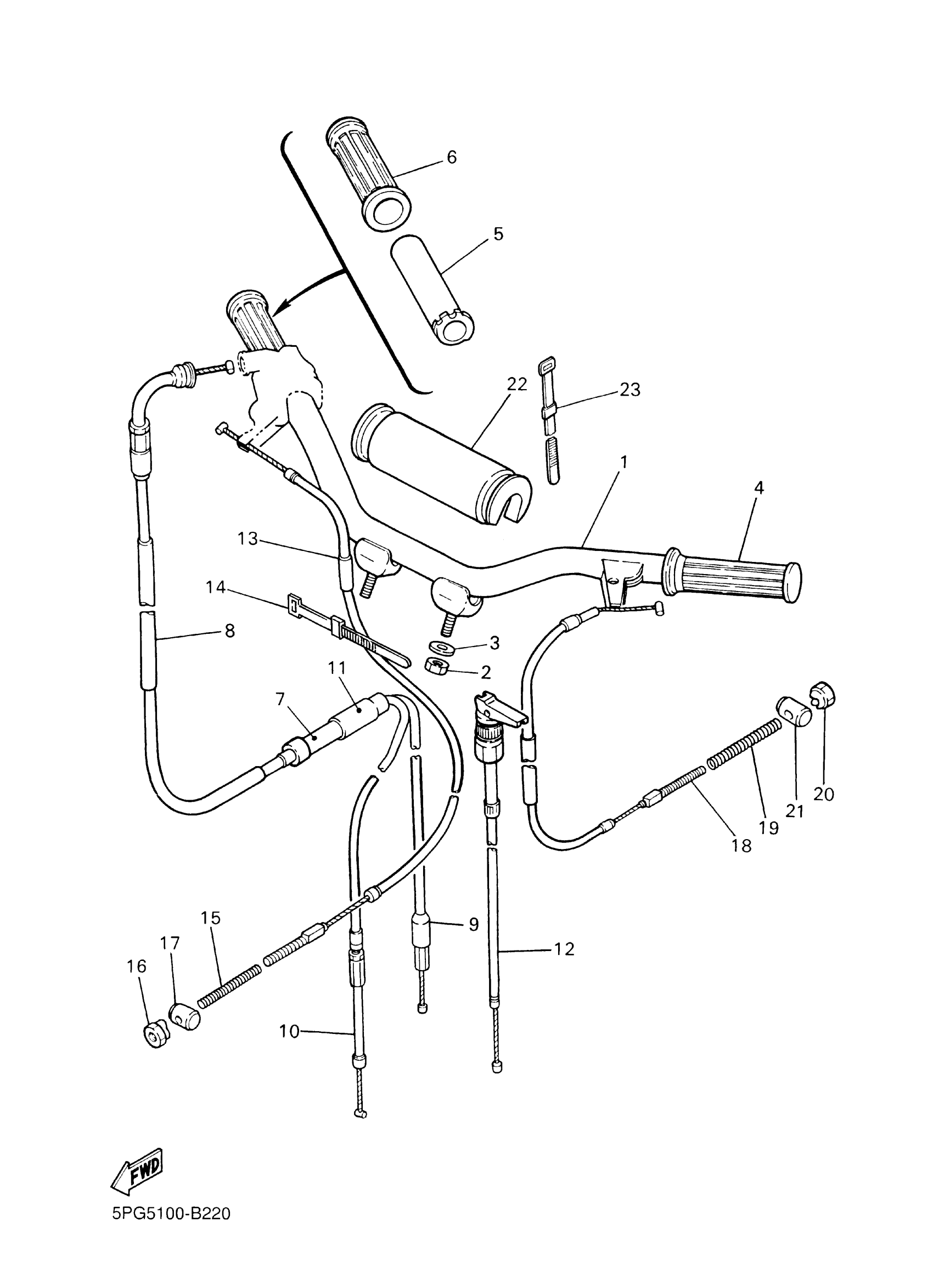

2016 Yamaha PW50 (PW50G2) Steering Handle Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

3PT-26111-00-00

1
Out of stock

2

NUT, U

95617-08100-00

1
Out of stock

3

WASHER

2E9-26129-00-00

—
Out of stock

4

GRIP (L.H)

4X4-26241-00-00

1
Out of stock

5

TUBE, THROTTLE GUIDE

4X4-26243-00-00

1
Out of stock

6

GRIP (R.H)

4X4-26242-00-00

1
Out of stock

7

CONNECTER, CABLE

4U1-26261-00-00

1
Out of stock

8

CABLE,THROTTLE 1

4X4-26311-11-00

1
Out of stock

9

CABLE, THROTTLE 2

5PG-26312-00-00

1
Out of stock

10

CABLE, PUMP

4X4-26321-10-00

1
Out of stock

11

CAP

5L6-26272-00-00

1
Out of stock

12

CABLE, STARTER 1

4X4-26331-01-00

1
Out of stock

13

CABLE, BRAKE

3PT-26341-00-00

1
Out of stock

14

BAND, SWITCH CORD

437-83936-11-00

1
Out of stock

15

SPRING, COMPRESSION (2T4)

90501-10513-00

—
Out of stock

16

NUT (25K)

90179-06411-00

—
Out of stock

17

PIN 1562723700

90249-12008-00

—
Out of stock

18

CABLE, BRAKE

4X4-26351-10-00

—
Out of stock

19

SPRING, COMPRESSION (3L5)

90501-10074-00

—
Out of stock

20

NUT (25K)

90179-06411-00

—
Out of stock

21

PIN 1562723700

90249-12008-00

—
Out of stock

22

PROTECTOR, HANDLEBAR

36R-26124-10-00

—
Out of stock

23

BAND, SWITCH CORD

437-83936-11-00

1
Out of stock
