1995 Yamaha Y-Zinger (PW50G) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1995 Yamaha Y-Zinger (PW50G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

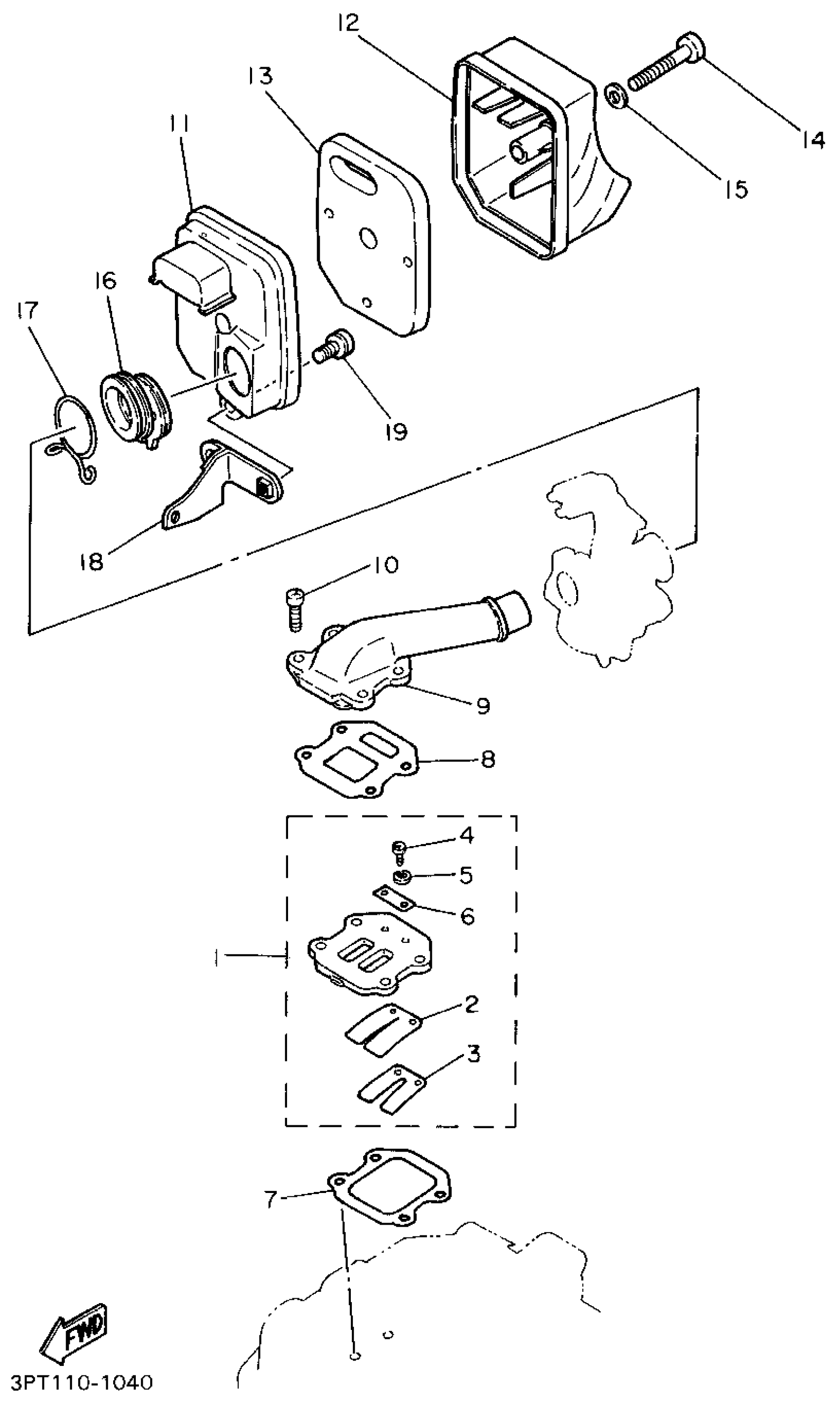

1995 Yamaha Y-Zinger (PW50G) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

3L5-13610-00-00

1

$69.08

In stock

2

REED VALVE

3L5-13613-00-00

1

$37.52

In stock

3

STOPPER, REED VALVE

3L5-13616-00-00

1

$8.78

In stock

4

SCREW, PAN HEAD(3HH)

98507-03010-00

1
Out of stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

PLATE, REED VALVE

3L5-13624-00-00

—

$6.38

In stock

7

GASKET, VALVE SEAT

3HK-13621-00-00

1

$17.52

In stock

8

GASKET, VALVE SEAT

3L5-13622-10-00

1

$24.83

In stock

9

MANIFOLD

3L5-13555-00-00

1

$56.11

In stock

10

SCREW, PAN

98517-06020-00

1
Out of stock

11

CASE, AIR CLEANER 1

4X4-14411-00-00

1

$26.83

In stock

12

CAP, CLEANER CASE 1

4X4-14412-00-00

1

$22.17

In stock

13

ELEMENT, AIR CLEANER

4X4-14451-00-00

1

$7.12

In stock

14

SCREW, PAN

98507-06045-00

1

$2.63

In stock

15

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

16

JOINT, AIR CLEANER 1

4X4-14453-00-00

—

$20.58

In stock

17

CLIP 296144550000

90467-20023-00

—

$3.55

In stock

18

STAY 1

4X4-14493-01-00

—

$18.97

In stock

19

SCREW, WITH WASHER (517).

90159-06013-00

—

$6.29

In stock
