2015 Yamaha PW50 (PW50F1) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2015 Yamaha PW50 (PW50F1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

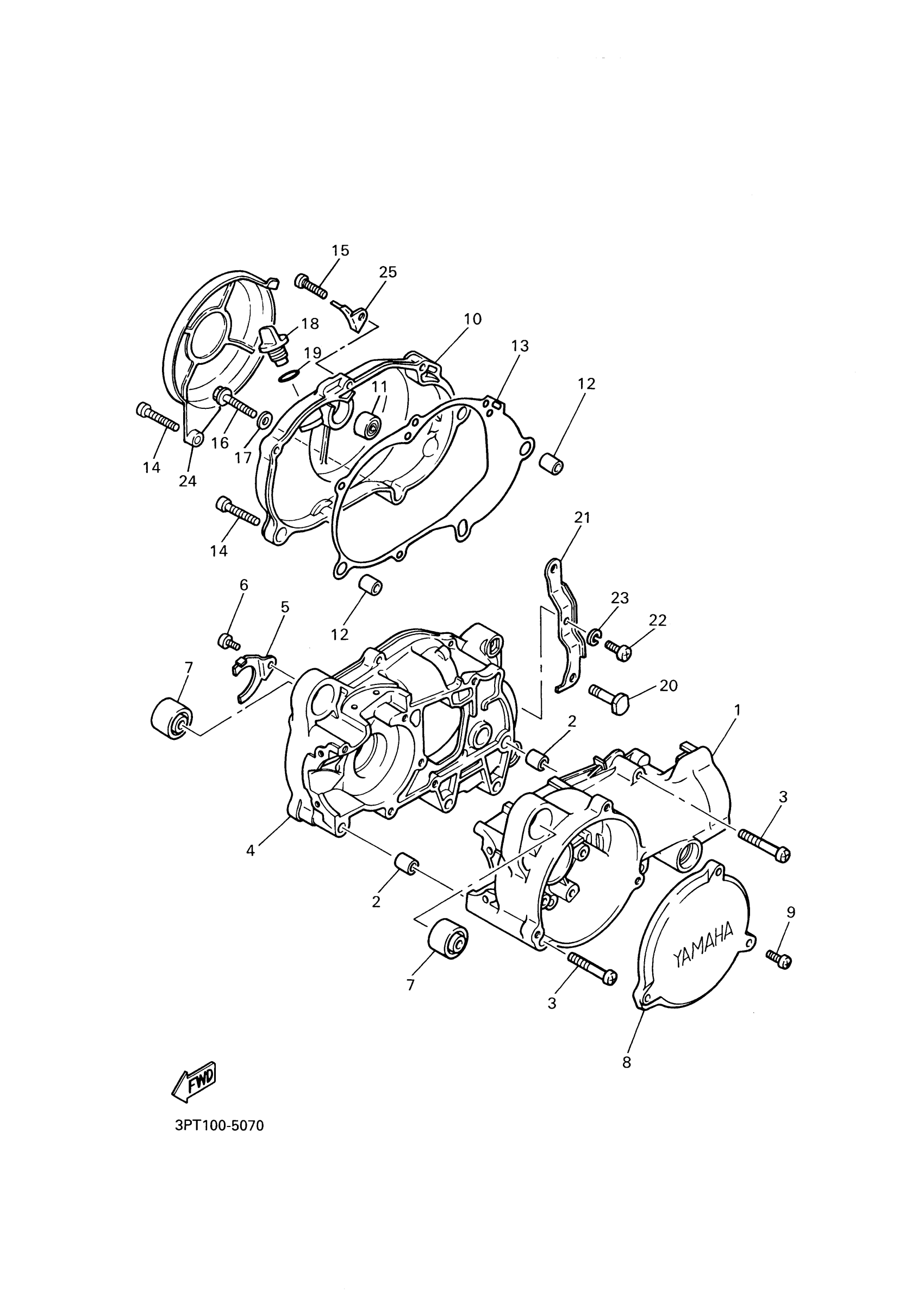

2015 Yamaha PW50 (PW50F1) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

4X4-15111-00-00

—
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

SCREW, PAN

98507-06045-00

1

$2.63

In stock

4

CRANKCASE 2

4J2-15121-01-00

—
Out of stock

5

HOLDER

3L5-15128-00-00

—

$3.20

In stock

6

SCREW, PAN

98517-06012-00

1

$3.14

In stock

7

DAMPER, ENGINE MOUNT

2E9-15316-00-00

1

$24.14

In stock

8

COVER, GENERATOR

4J2-15415-00-00

1

$31.81

In stock

9

SCREW, PAN HEAD

98507-05014-00

1

$6.18

In stock

10

COVER, CRANKCASE 2

4X4-15421-02-00

—

$123.58

In stock

11

BUSH 1

3L5-17112-02-00

1

$14.26

In stock

12

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

13

GASKET, CRANKCASE COVER 1

3L5-15451-12-00

1

$17.02

In stock

14

SCREW, PAN

98507-06035-00

1

$6.18

In stock

15

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

16

BOLT, FLANGE

95817-08035-00

—

$6.68

In stock

17

GASKET

90430-08119-00

—

$4.70

In stock

18

PLUG, OIL

4J2-15363-10-00

—

$3.78

In stock

19

O-RING (26H)

93210-14579-00

—

$5.69

In stock

20

BOLT (4J2)

90109-08582-00

—

$8.02

In stock

21

PLATE

4J2-15113-00-00

1
Out of stock

22

SCREW, PAN

98517-06012-00

1

$3.14

In stock

23

WASHER, SPRING

92907-06100-00

—
Out of stock

24

PROTECTOR

4X4-15491-00-00

—

$24.09

In stock

25

CLAMP 2

4X4-15484-00-00

—

$9.91

In stock
