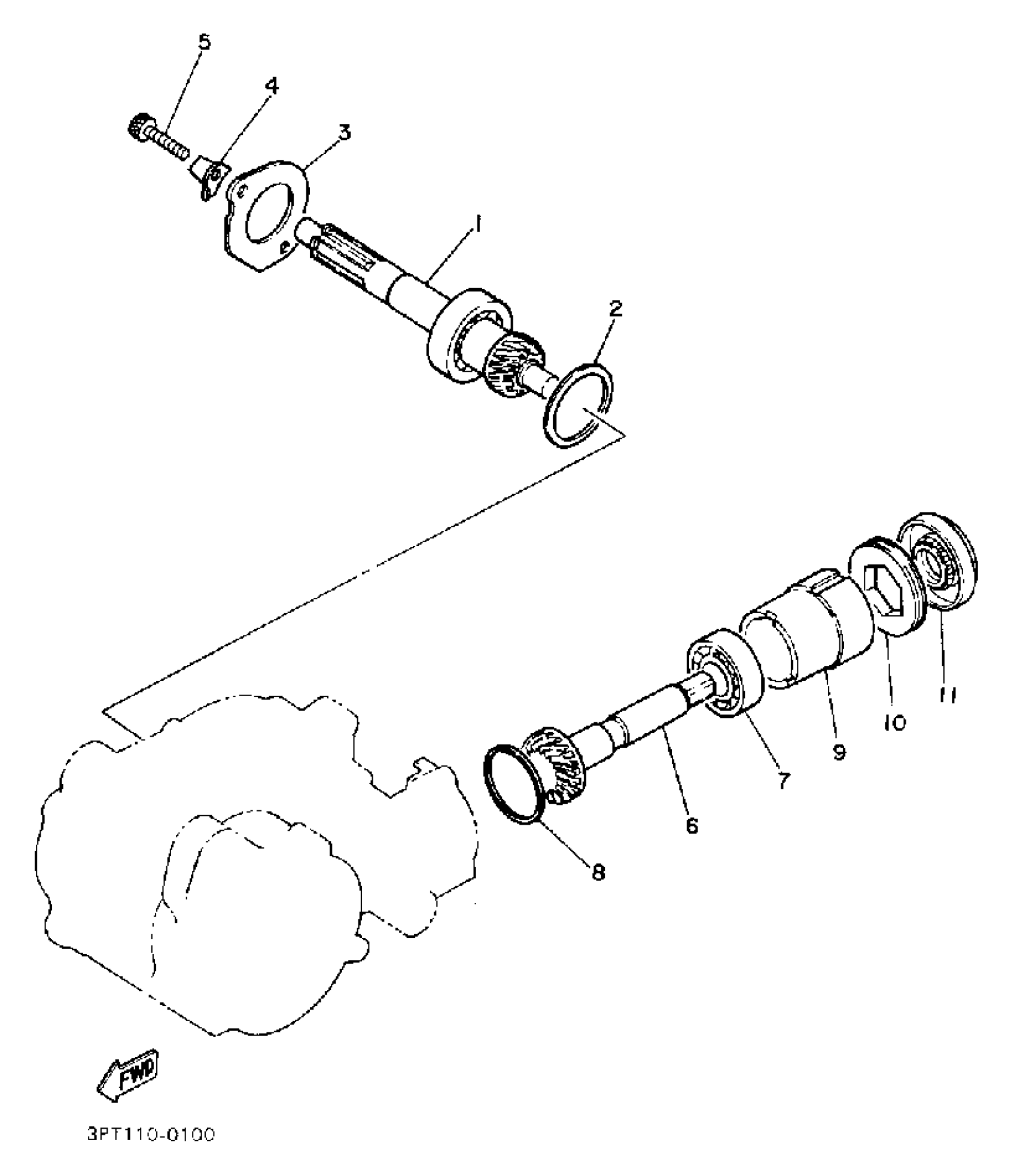

Yamaha PW50D (Y-ZINGER) 1992 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE COMP.

3L5-17410-00-00

$170.42

2

SHIM, PINION

3L5-17531-00-00

$5.66

3

PLATE, COVER

3L5-17471-00-00

Unavailable

4

STOPPER

3L5-17473-00-00

$6.29

5

BOLT,SOCKET

91317-06016-00

$1.49

6

PINION, DRIVEN

15L-17552-00-00

$156.36

7

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$31.00

8

SHIM, THRUST

3L5-17537-00-00

Unavailable

9

COLLAR, DISTANCE

3L5-17442-00-00

Unavailable

10

SCREW (3L5)

90149-45134-00

Unavailable

11

OIL SEAL (13U)

93102-15267-00

$8.73
