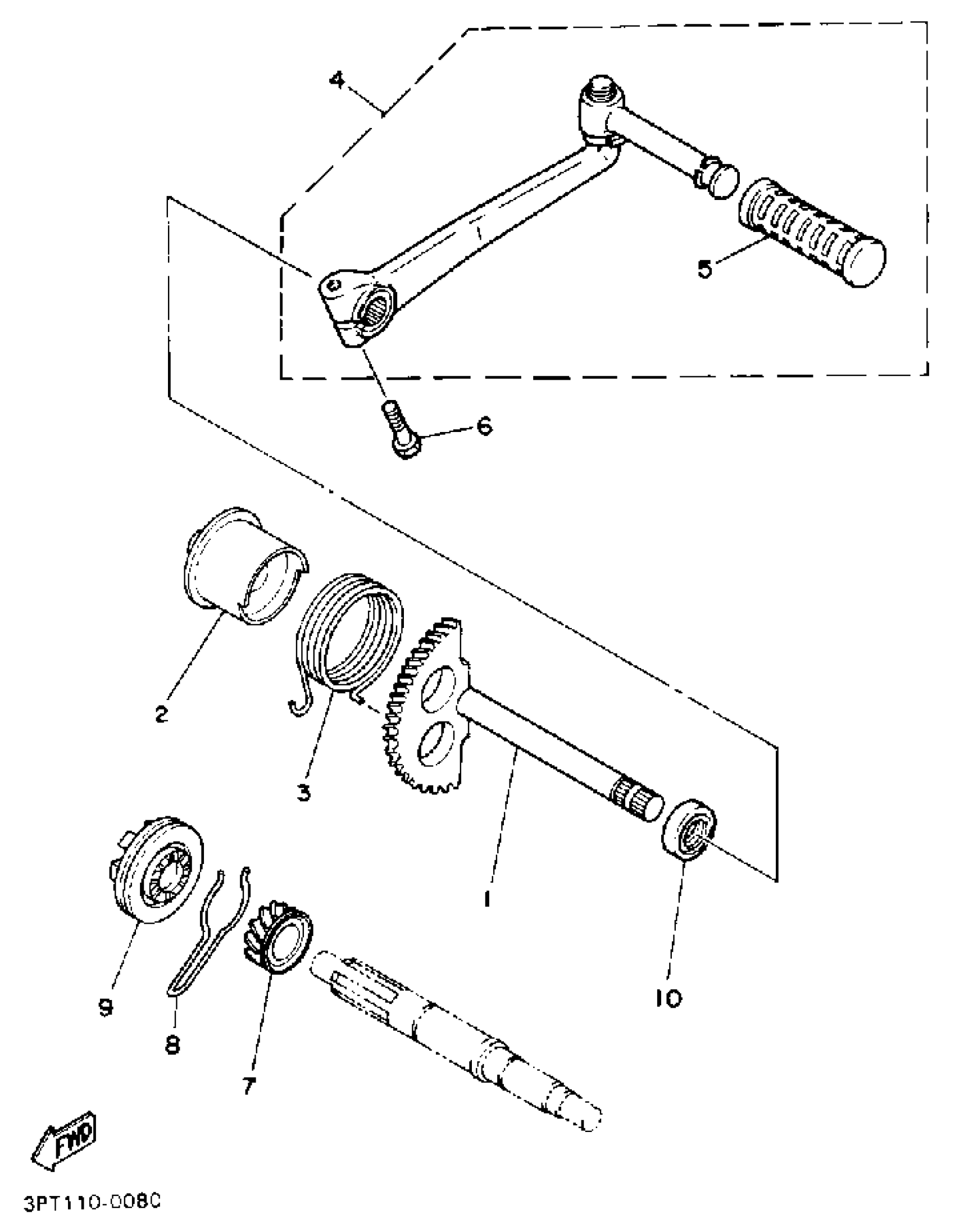

Yamaha PW50D (Y-ZINGER) 1992 STARTER Diagram

#

Description
Price

1

KICK SHAFT ASSY

3L5-15601-01-00

$33.93

2

GUIDE, SPRING

3L5-15664-00-00

$17.39

3

SPRING, TORSION (3L5)

90508-28399-00

$10.20

4

KICK CRANK ASSY

17J-15620-01-00

$113.67

5

COVER, KICK LEVER

156-15618-01-00

$6.12

6

BOLT, HEXAGON

97017-06025-00

$2.84

7

GEAR, KICK PINION (13T)

3L5-15631-00-00

$65.81

8

CLIP

3L5-15673-00-00

$6.73

9

GEAR, DRIVE

3L5-13178-00-00

$122.27

10

OIL SEAL (15X26X6-102)

93109-15001-00

$7.07
