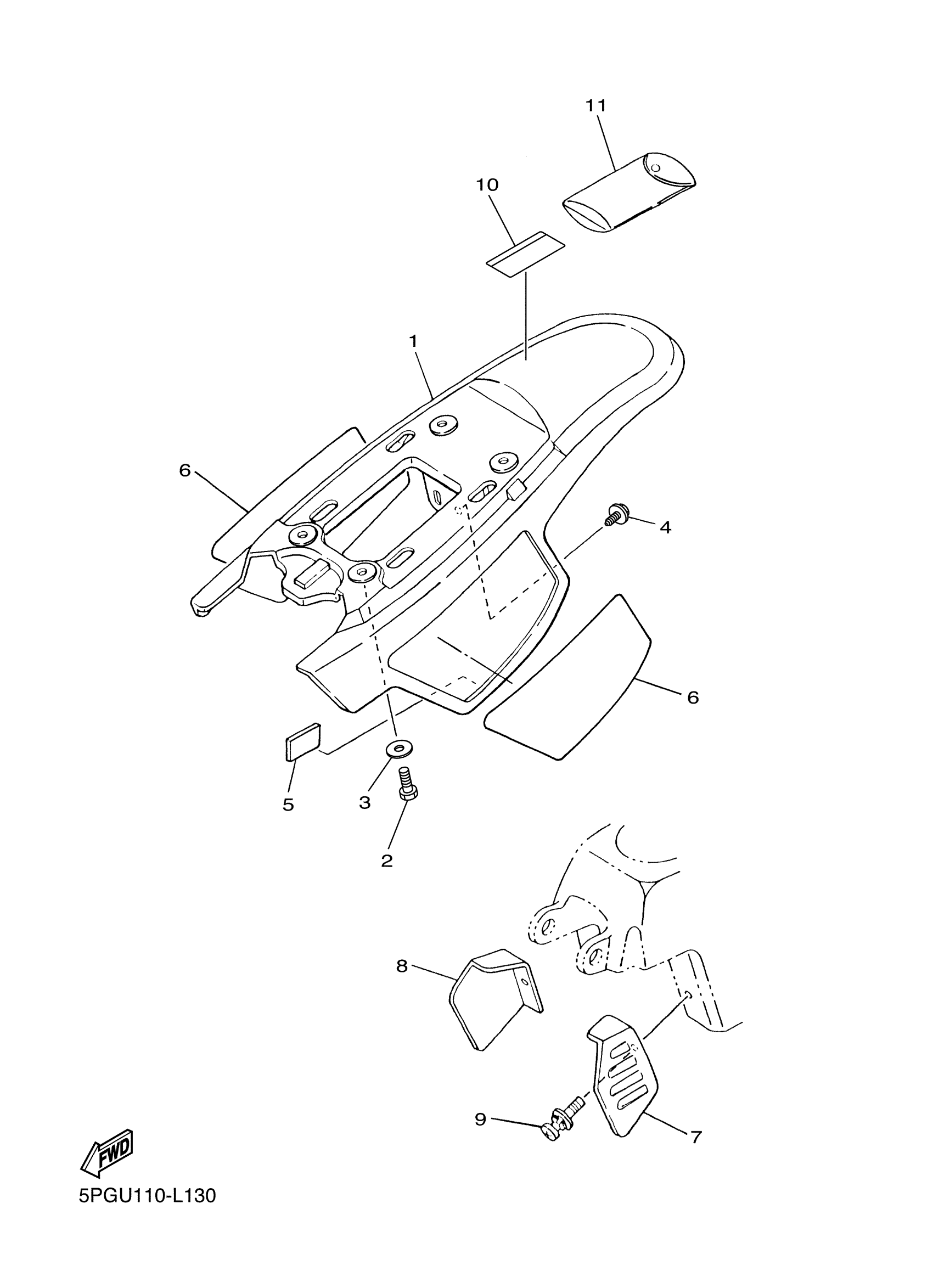

Yamaha PW50B1 (PW50) 5PGU 2012 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

3PT-21711-10-00

$60.01

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

3

WASHER, PLATE

90201-06033-00

$2.56

4

BOLT, WITH WASHER

90119-06226-00

$2.12

5

DAMPER, LOCATING 1

4X4-24181-00-00

$4.70

6

GRAPHIC SET 1

3PT-2173L-B0-00

$34.39

7

COVER, SIDE 3

3PT-21731-60-00

$16.18

8

COVER, SIDE 4

3PT-21741-60-00

$16.18

9

SCREW, WITH WASHER (3T2)

90159-06058-00

$6.57

10

LABEL, CAUTION

5PG-2118K-00-00

$5.83

11

TOOL KIT

4X4-28100-01-00

$7.29
