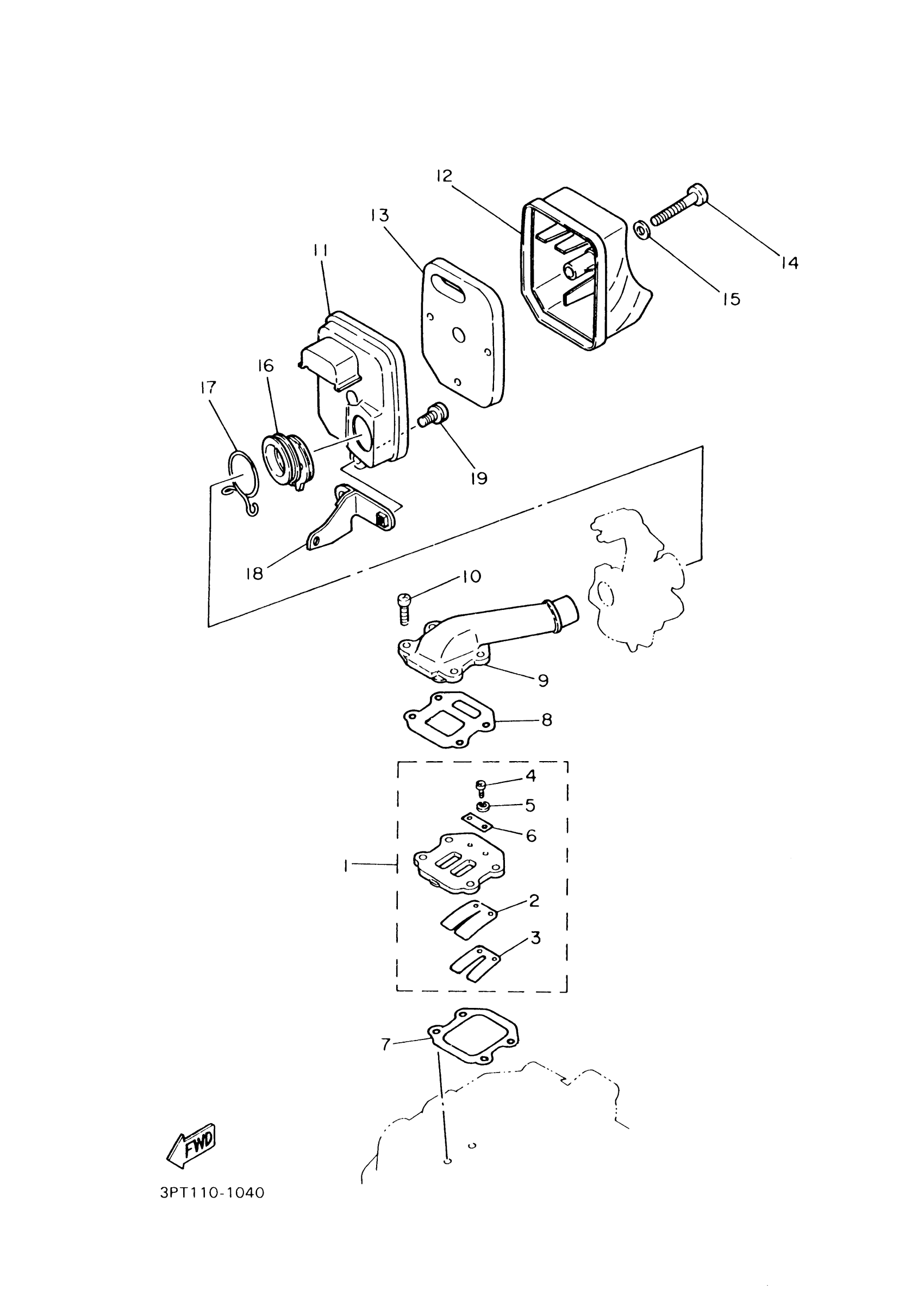

Yamaha PW50B1 (PW50) 5PGU 2012 INTAKE Diagram

#

Description
Price

1

REED VALVE ASSY

3L5-13610-00-00

$65.94

2

REED VALVE

3L5-13613-00-00

$36.95

3

STOPPER, REED VALVE

3L5-13616-00-00

$8.65

4

SCREW, PAN HEAD(3HH)

98507-03010-00

$2.52

5

WASHER, SPRING

92990-03100-00

$5.75

6

PLATE, REED VALVE

3L5-13624-00-00

Unavailable

7

GASKET, VALVE SEAT

3HK-13621-00-00

$16.36

8

GASKET, VALVE SEAT

3L5-13622-10-00

$23.18

9

MANIFOLD

3L5-13555-00-00

$55.26

10

SCREW, PAN

98517-06020-00

$1.79

11

CASE, AIR CLEANER 1

4X4-14411-00-00

$25.75

12

CAP, CLEANER CASE 1

4X4-14412-00-00

$20.70

13

ELEMENT, AIR CLEANER

4X4-14451-00-00

$6.66

14

SCREW, PAN

98507-06045-00

$2.46

15

WASHER(6TA)

92907-06600-00

$0.73

16

JOINT, AIR CLEANER 1

4X4-14453-00-00

Unavailable

17

CLIP 296144550000

90467-20023-00

Unavailable

18

STAY 1

4X4-14493-01-00

Unavailable

19

SCREW, WITH WASHER (517).

90159-06013-00

Unavailable
