2012 Yamaha PW50 (PW50B1) Crankcase Diagram

← All diagrams

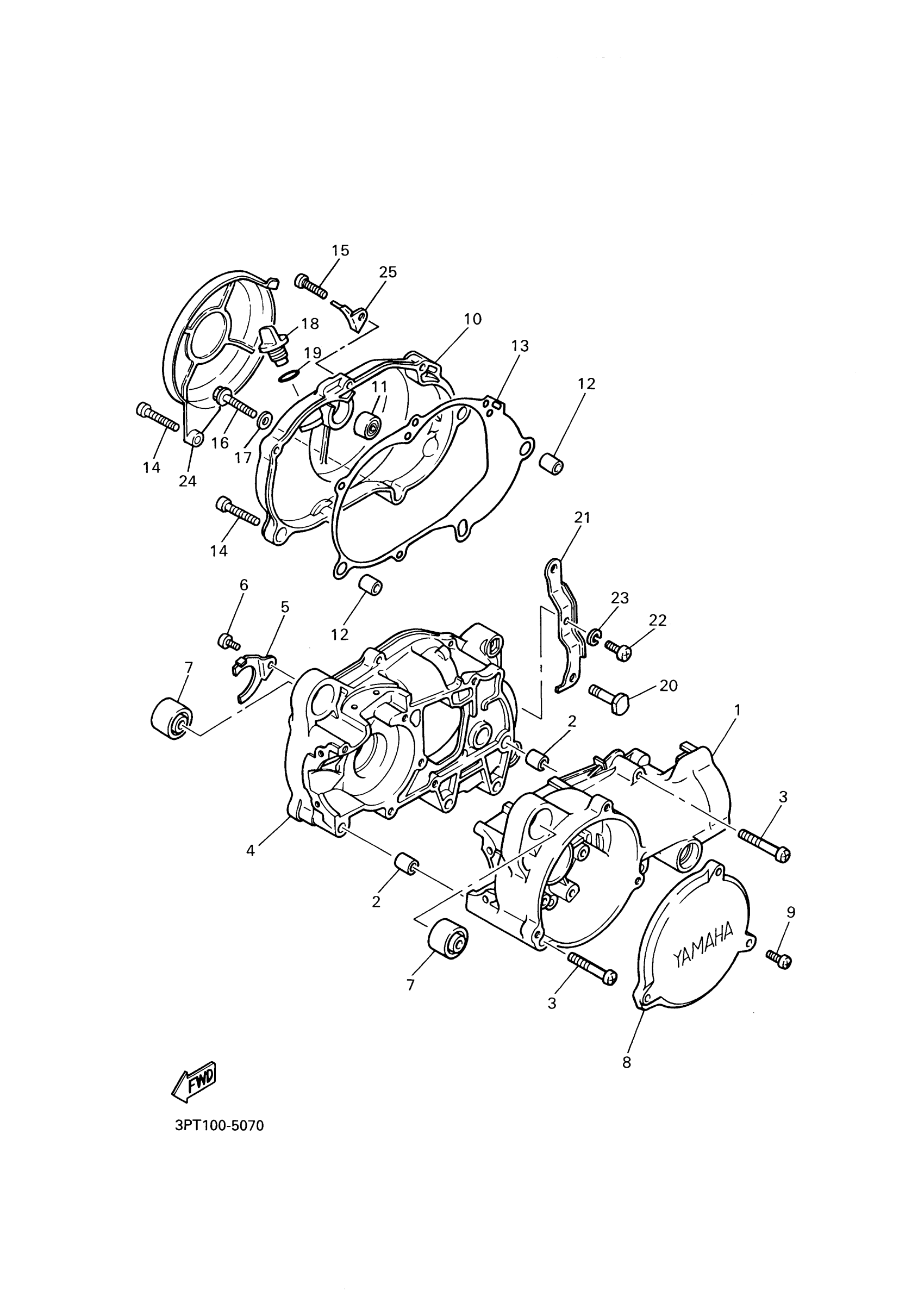

Find the part on the Crankcase diagram for your 2012 Yamaha PW50 (PW50B1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha PW50 (PW50B1) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

4X4-15111-00-00

—
Out of stock

2

PIN, DOWEL

99530-12016-00

1
Out of stock

3

SCREW, PAN

98507-06045-00

1
Out of stock

4

CRANKCASE 2

4J2-15121-01-00

—
Out of stock

5

HOLDER

3L5-15128-00-00

1
Out of stock

6

SCREW, PAN

98517-06012-00

1
Out of stock

7

DAMPER, ENGINE MOUNT

2E9-15316-00-00

1
Out of stock

8

COVER, GENERATOR

4J2-15415-00-00

1
Out of stock

9

SCREW, PAN HEAD

98507-05014-00

1
Out of stock

10

COVER, CRANKCASE 2

4X4-15421-02-00

—
Out of stock

11

BUSH 1

3L5-17112-02-00

1
Out of stock

12

PIN, DOWEL

99530-12016-00

1
Out of stock

13

GASKET, CRANKCASE COVER 1

3L5-15451-12-00

1
Out of stock

14

SCREW, PAN

98507-06035-00

1
Out of stock

15

SCREW, PAN HEAD (76T)

98517-06025-00

1
Out of stock

16

BOLT, FLANGE

95817-08035-00

—
Out of stock

17

GASKET

90430-08119-00

—
Out of stock

18

PLUG, OIL

4J2-15363-10-00

—
Out of stock

19

O-RING (26H)

93210-14579-00

—
Out of stock

20

BOLT (4J2)

90109-08582-00

—
Out of stock

21

PLATE

4J2-15113-00-00

1
Out of stock

22

SCREW, PAN

98517-06012-00

1
Out of stock

23

WASHER, SPRING

92907-06100-00

—
Out of stock

24

PROTECTOR

4X4-15491-00-00

—
Out of stock

25

CLAMP 2

4X4-15484-00-00

—
Out of stock
