1990 Yamaha Y-Zinger (PW50A) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1990 Yamaha Y-Zinger (PW50A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

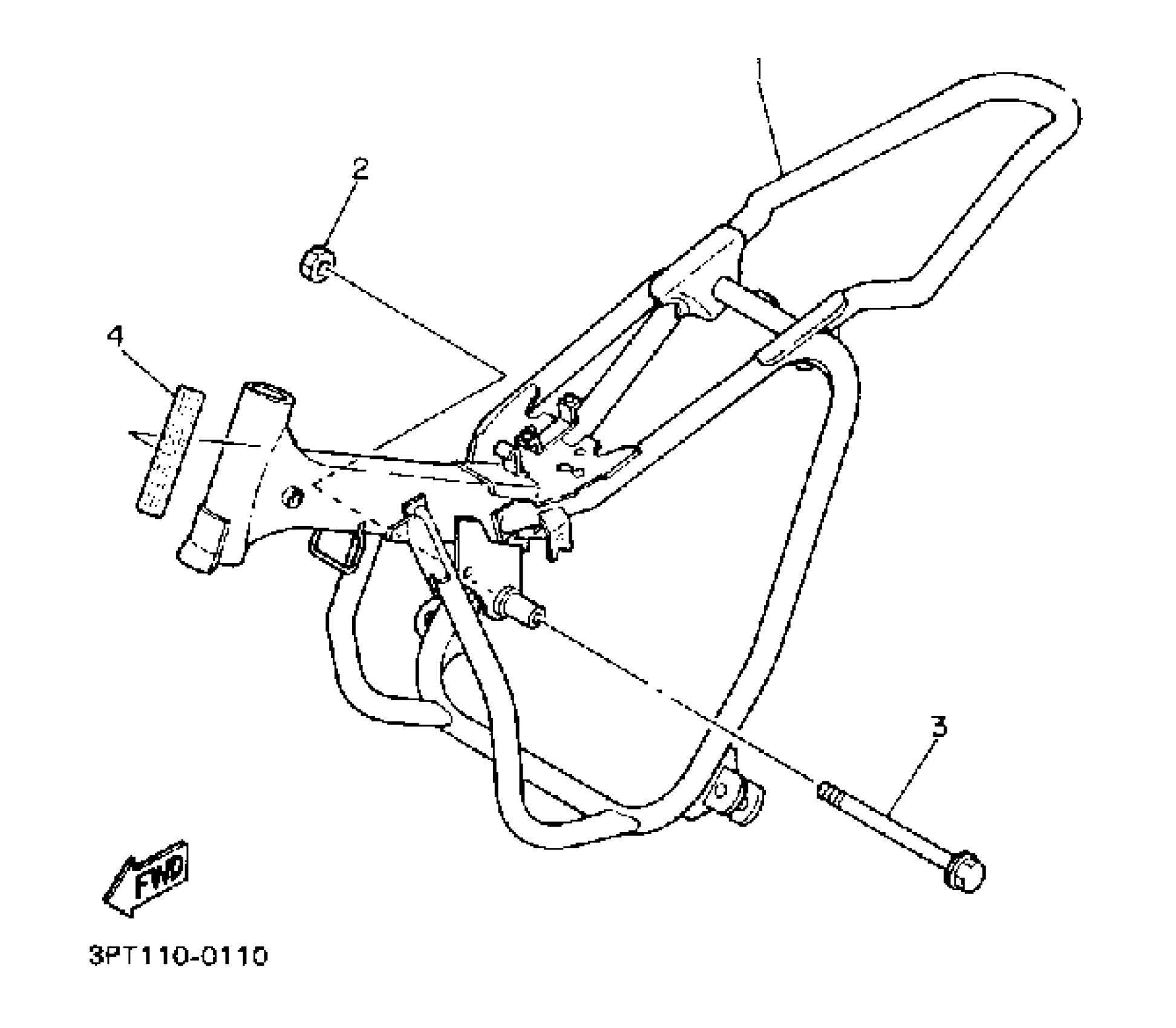

1990 Yamaha Y-Zinger (PW50A) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

36E-21110-01-33

1

$488.65

In stock

2

NUT, SELF-LOCKING

90185-10170-00

1

$7.98

In stock

3

BOLT, WASHER BASED

90105-10130-00

1
Out of stock

4

PLATE, EPA

3PT-2179X-00-00

1
Out of stock
