1983 Kawasaki Prairie Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1983 Kawasaki Prairie, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

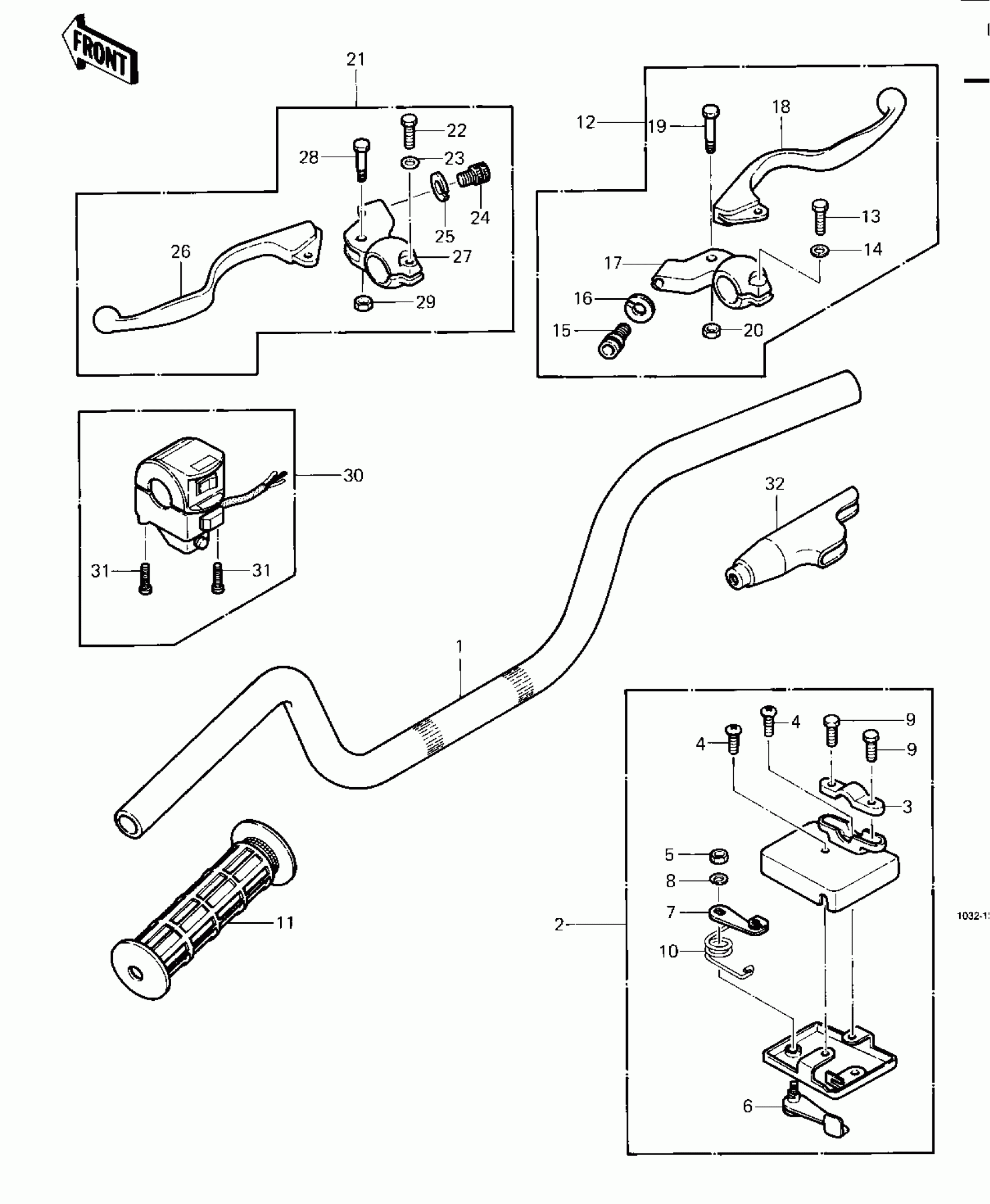

1983 Kawasaki Prairie Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

46003-4004

1

$86.83

In stock

2

LEVER-ASSY-THROTTLE

39074-4001

1

$90.91

In stock

3

HOLDER,THROTTLE LEVER

13091-4002

1
Out of stock

4

SCREW PAN HEAD 6X10

220B0610

1
Out of stock

5

NUT 6MM

311B0600

1
Out of stock

6

1

$22.07

In stock

7

1

$5.34

In stock

8

WASHER SPRING 6MM

461F0600

1
Out of stock

9

BOLT HEX HEAD

92001-4011

1

$1.90

In stock

10

SPRING RETURN

92081-4007

1

$4.56

In stock

11

GRIP

46075-4003

1

$23.47

In stock

12

LEVER ASSY,FRONT BRK

46076-1010

1
Out of stock

13

BOLT HEX HEAD 6X25

110N0625

1
Out of stock

14

1

$1.19

In stock

15

1

$12.92

In stock

16

1

$7.04

In stock

17

HOLDER,BRAKE LEVER,FR,F.BLACK

46060-011-21

1
Out of stock

18

LEVER-GRIP,FRONT BRAKE

46092-1014

1
Out of stock

19

BOLT,5X22

92007-046

1
Out of stock

20

NUT,LOCK,5MM

92019-014

1

$4.00

In stock

21

LEVER-ASSY-GRIP,LH

46076-1011

1

$56.53

In stock

22

BOLT HEX HEAD 6X25

110N0625

1
Out of stock

23

1

$1.19

In stock

24

1

$12.92

In stock

25

1

$7.04

In stock

26

LEVER-GRIP,CLUTCH

46092-1015

1
Out of stock

27

1

$38.47

In stock

28

BOLT,5X22

92007-046

1
Out of stock

29

NUT,LOCK,5MM

92019-014

1

$4.00

In stock

30

HOUSING-ASSY-CONTROL,

46091-1393

1
Out of stock

31

SCREW-PAN-CROS

220B0535

1

$2.94

In stock

32

BOOT,LEVER HOLDER

49006-1017

1

$14.71

In stock
