1983 Kawasaki Prairie Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1983 Kawasaki Prairie, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

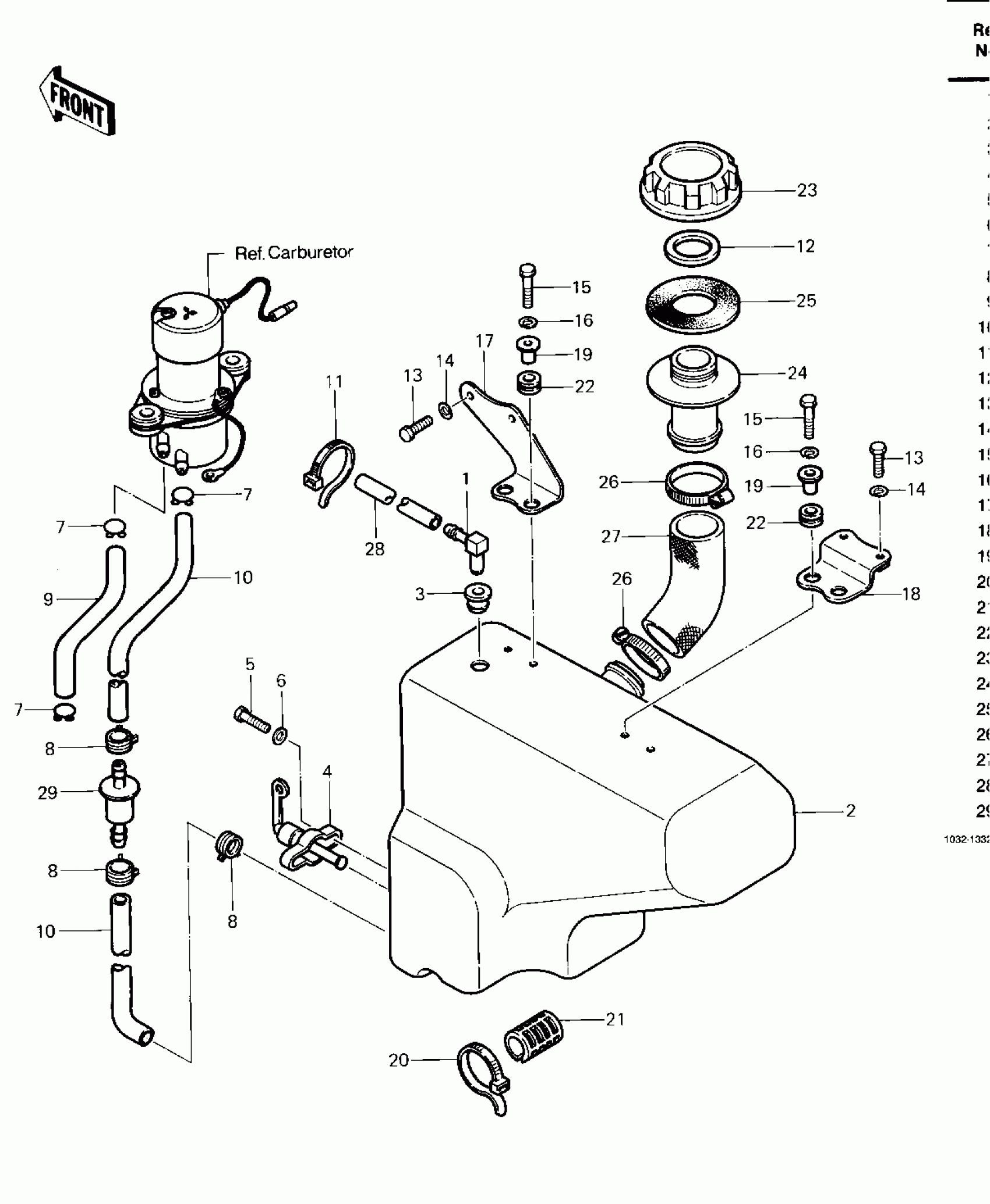

1983 Kawasaki Prairie Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BREATHER

14069-003

1

$8.16

In stock

2

TANK-FUEL,GRAY

51001-4005-8L

1
Out of stock

3

DAMPER,FUEL TANK

92075-4029

1
Out of stock

4

TAP-ASSY,FUEL

51023-1115

1
Out of stock

5

BOLT-HEX HEAD,6X16

92001-114

1
Out of stock

6

WASHER-PLAIN

92022-183

1
Out of stock

7

CLAMP,TUBE

92037-1682

1

$4.87

In stock

8

CLAMP

92037-4009

1

$0.65

In stock

9

TUBE,5.3X10.5X450

92059-4030

1

$6.95

In stock

10

TUBE,5.3X10.5X85

92059-4029

1

$2.86

In stock

11

BAND

92072-4004

1

$2.41

In stock

12

GASKET,TANK CAP

11009-3020

1

$10.69

In stock

13

BOLT-UPSET 6X14

112B0614

1
Out of stock

14

WASHER SPRING 6MM

461F0600

1
Out of stock

15

BOLT-UPSET,6X20

112G0620

1
Out of stock

16

WASHER SPRING 6MM

461F0600

1
Out of stock

17

BRACKET-TANK

32052-4006

1

$7.08

In stock

18

BRACKET-TANK

32052-4007

1

$6.73

In stock

19

COLLAR

92027-1045

1

$4.37

In stock

20

BAND

92072-3505

1
Out of stock

21

DAMPER,FUEL TANK

92075-084

1

$7.97

In stock

22

DAMPER

92075-277

1

$2.20

In stock

23

CAP-TANK

51049-3001

1

$8.56

In stock

24

FILLER,FUEL TANK

59231-3001

1

$13.97

In stock

25

WASHER-RUBBER

92022-4024

1
Out of stock

26

CLAMP

92037-3009

1

$3.25

In stock

27

TUBE,TANK

92059-4013

1

$43.13

In stock

28

TUBE-BREATHER

92059-4027

1
Out of stock

29

FILTER-FUEL

49019-4001

1
Out of stock
