2006 Kawasaki Prairie 700 4x4 Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 2006 Kawasaki Prairie 700 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

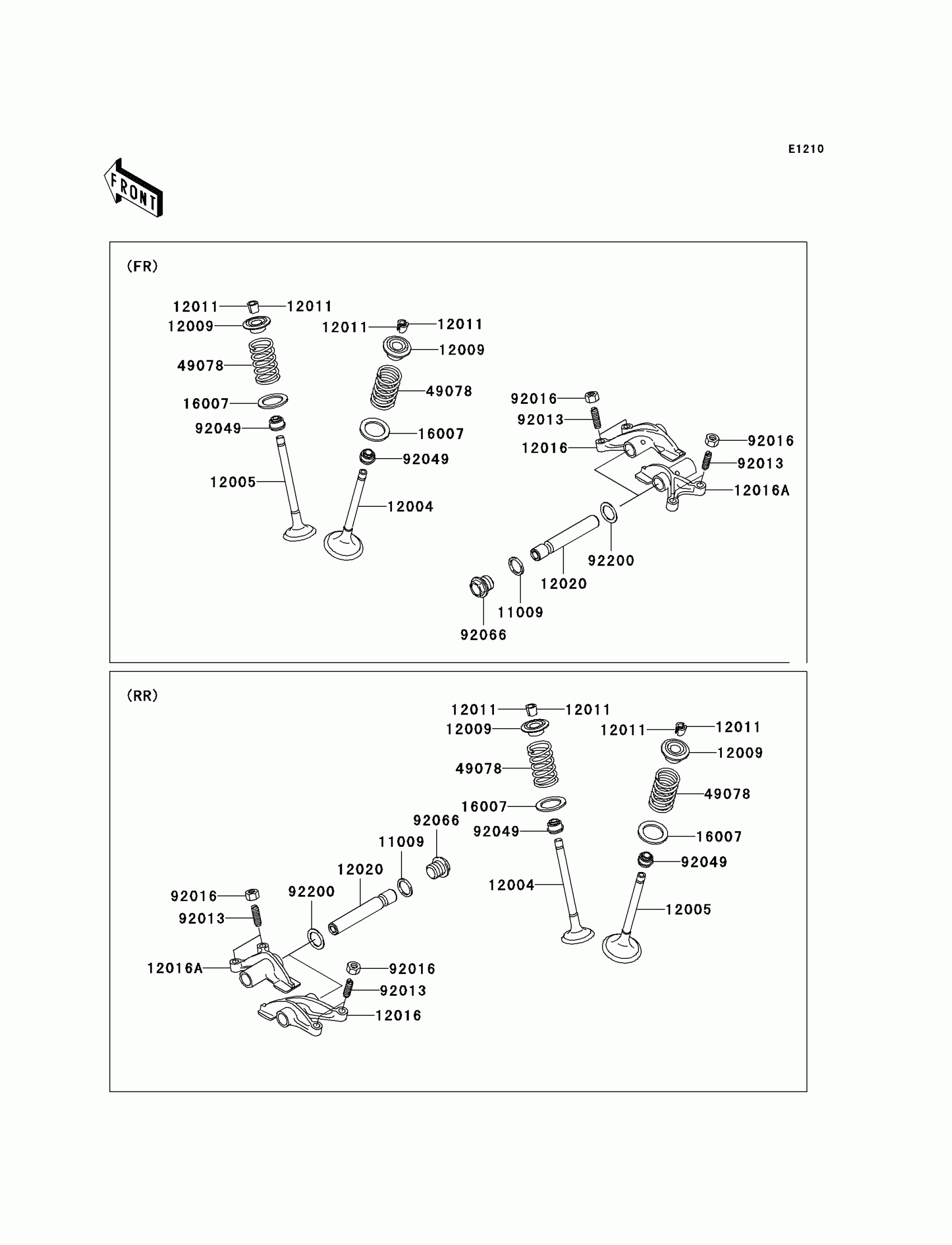

2006 Kawasaki Prairie 700 4x4 Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,14X18X1.5

11009-1430

1
Out of stock

12004

VALVE-INTAKE

12004-0007

1
Out of stock

12005

VALVE-EXHAUST

12005-0016

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-1056

1
Out of stock

12011

COLLET

12011-1051

1
Out of stock

12016

ARM-ROCKER,EXHAUST

12016-1128

1
Out of stock

12016A

ARM-ROCKER,INTAKE

12016-1129

1
Out of stock

12020

SHAFT-ROCKER

12020-0004

1
Out of stock

16007

SEAT-SPRING,17.5X23.8X0.5

16007-1178

1
Out of stock

49078

SPRING-ENGINE VALVE

49078-0014

1
Out of stock

92013

SCREW,6MM

92013-009

1
Out of stock

92016

NUT,6MM

92016-061

1
Out of stock

92049

SEAL-OIL,VSB58.558

92049-1218

1
Out of stock

92066

PLUG,DRAIN

92066-2196

1
Out of stock

92200

WASHER,13X17X0.3

92200-1508

1
Out of stock
