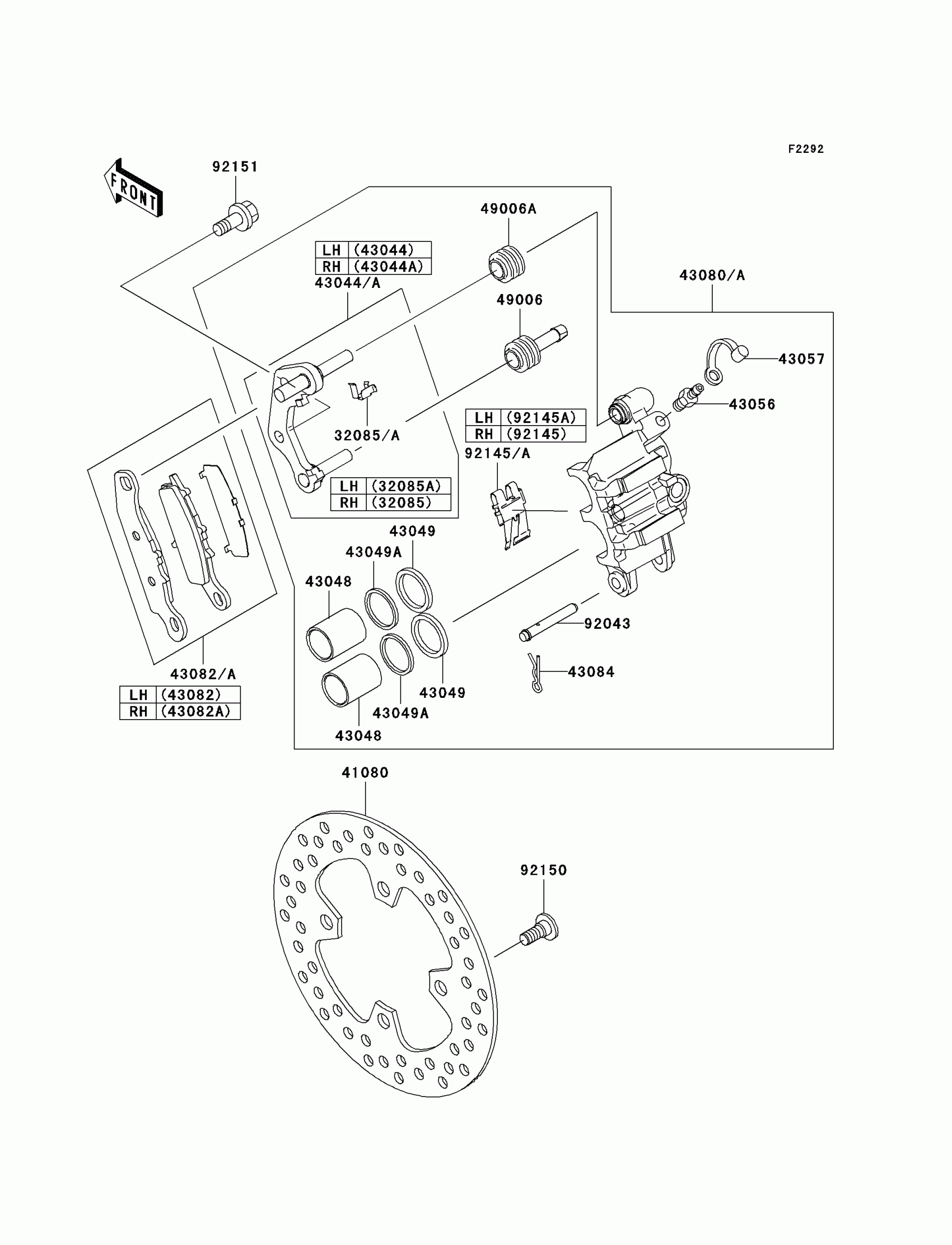

Kawasaki Prairie 700 4x4 Front Brake Diagram

#

Description
Price

32085

STOPPER

32085-1437

$12.42

32085A

STOPPER,LH

32085-1517

$7.83

41080

DISC,FR

41080-1513

Unavailable

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1130

Unavailable

43044A

HOLDER-COMP-CALIPER,FR,RH

43044-1131

Unavailable

43048

PISTON-CALIPER

43048-1083

$51.26

43049

PACKING,PISTON

43049-1059

$6.48

43049A

PACKING,PISTON SEAL

43049-1090

$4.61

43056

BREATHER-BRAKE

43056-1054

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43080

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-5081-DJ

$409.63

43080A

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-5082-DJ

$409.63

43082

PAD-ASSY-BRAKE,LH

43082-1255

$53.87

43082A

PAD-ASSY-BRAKE,RH

43082-1273

$53.87

43084

CLAMP,PAD

43084-003

$3.29

49006

BOOT,CALIPER

49006-1054

$8.83

49006A

BOOT,CALIPER

49006-1055

$5.55

92043

PIN,PAD

92043-1356

$10.25

92145

SPRING,PAD

92145-1260

$14.58

92145A

SPRING,PAD,LH

92145-1354

$9.46

92150

BOLT,SOCKET,8X20

92150-1800

$5.81

92151

BOLT,FLANGED,8X19

92151-1793

$1.74
