Description

Price

11060

GASKET,DIFF CASE

11060-1982

$26.53

13096

HOUSING-CLUTCH,DISC

13096-1163

$46.48

13107

SHAFT,BEVEL

13107-1447

Unavailable

13139

SHIFTER,DIFFERENTIAL

13139-1097

$104.65

13168

LEVER,DIFF

13168-1724

$42.75

13168A

LEVER,DIFFERENTIAL

13168-1725

$18.46

13271

PLATE,CAM

13271-1497

Unavailable

13271A

PLATE,DISC

13271-1503

$14.56

14055

CASE-GEAR,DIFFERENTIAL,RH

14055-1149

$165.41

14055A

CASE-GEAR,CENTER

14055-1155

$145.52

14055B

CASE-GEAR,BEVEL,LH

14055-1156

Unavailable

14057

CASE-COMP-GEAR,DIFF,LH

14057-1004

Unavailable

14091

COVER,BEVEL,RH

14091-1197

$65.40

16172

ACTUATOR

16172-0004

$388.10

41080

DISC ASSY,DIFFERENTIAL LOCK

41080-1512

Unavailable

42034

COUPLING,BEVEL

42034-1192

$114.67

49006

BOOT,DOJ

49006-0034

$112.77

49006A

BOOT,BJ

49006-0035

$112.77

49022

GEAR-BEVEL,10T

49022-1177

Unavailable

49022A

GEAR-BEVEL,16T

49022-1178

$159.22

49022B

GEAR-BEVEL,35T

49022-1190

Unavailable

49022C

GEAR-BEVEL,8T

49022-1201

$441.46

59266

JOINT-BALL,LH

59266-1135

Unavailable

59266A

JOINT-BALL,RH

59266-1136

Unavailable

92009

SCREW,64MM

92009-1914

$30.20

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.04

92037

CLAMP-HOSE

92037-1104

$1.09

92043

PIN,2X10.5

92043-0083

$1.85

92043A

PIN,6.2X8X14

92043-1263

$0.46

92043B

PIN

92043-1575

$1.76

92045

BEARING-BALL,60/32

92045-1393

$22.43

92045A

BEARING-BALL,6910

92045-1394

$51.15

92046

BEARING-NEEDLE,TA627412ZE02

92046-1282

Unavailable

92046A

BEARING-NEEDLE,AK1116

92046-1286

$55.99

92046B

BEARING-NEEDLE,AJ501515W

92046-1297

$36.72

92049

SEAL-OIL,SDD7 22X48X7HS

92049-1534

$13.85

92049A

SEAL-OIL,HTCY 62X81X10.5

92049-1536

$17.77

92049B

SEAL-OIL,TC 12X22X7

92049-1550

$3.81

92049C

SEAL-OIL,KB 13X19X13

92049-1572

$7.18

92049D

SEAL-OIL,TCY 48X65X8

92049-1573

$13.05

92055

RING-O,25.7X2.4

92055-1136

$3.81

92065

GASKET,8.5X16X1

92065-023

$2.63

92066

PLUG

92066-1303

$9.85

92145

SPRING,DIFF RETURN

92145-1344

$3.25

92150

BOLT,6X45

92150-1884

Unavailable

92151

BOLT,8X50

92151-1794

$2.29

92151A

BOLT,6X60

92151-1795

$1.73

92151B

BOLT,10X19.5

92151-1910

$2.27

92152

COLLAR

92152-1349

$36.32

92153

BOLT,8X15

92153-0870

$2.78

92180

SHIM,62X71X0.15

92180-1390

Unavailable

92180A

SHIM,62X71X0.20

92180-1391

Unavailable

92180B

SHIM,62X71X0.50

92180-1392

Unavailable

92180C

SHIM,62X71X0.70

92180-1393

Unavailable

92180D

SHIM,62X71X0.80

92180-1394

Unavailable

92180E

SHIM,62X71X0.90

92180-1395

Unavailable

92180F

SHIM,62X71X1.00

92180-1396

Unavailable

92180G

SHIM,62X71X1.10

92180-1397

Unavailable

92180H

SHIM,62X71X1.20

92180-1398

Unavailable

92180I

SHIM,32X42X0.15

92180-1399

Unavailable

92180J

SHIM,32X42X0.20

92180-1400

Unavailable

92180K

SHIM,32X42X0.50

92180-1401

Unavailable

92180L

SHIM,32X42X0.70

92180-1402

Unavailable

92180M

SHIM,32X42X0.80

92180-1403

Unavailable

92180N

SHIM,32X42X0.90

92180-1404

Unavailable

92180O

SHIM,32X42X1.00

92180-1405

Unavailable

92180P

SHIM,32X42X1.10

92180-1406

Unavailable

92180Q

SHIM,32X42X1.20

92180-1407

Unavailable

92180R

SHIM,50X61X0.15

92180-1408

Unavailable

92180S

SHIM,50X61X0.20

92180-1409

Unavailable

92180T

SHIM,50X61X0.50

92180-1410

Unavailable

92180U

SHIM,50X61X0.70

92180-1411

Unavailable

92180V

SHIM,50X61X0.80

92180-1412

Unavailable

92180W

SHIM,50X61X0.90

92180-1413

Unavailable

92180X

SHIM,50X61X1.00

92180-1414

Unavailable

92180Y

SHIM,50X61X1.10

92180-1415

Unavailable

92180Z

SHIM,50X61X1.20

92180-1416

Unavailable

130

BOLT-FLANGED,6X35

130G0635

Unavailable

132

BOLT-FLANGED-SMALL,6X30

132Y0630

Unavailable

481

CIRCLIP-TYPE-C,25MM

481J2500

$2.14

600

BALL-STEEL,11/32"

600A1100

$0.60

601

BEARING-BALL,#6305

601A6305

$14.04

670

O RING

670D3022

$1.98

671

O RING

671D25145

$18.76

92191A

TUBE,BREATHER

92191-1638

$10.17

92200

WASHER,10X24X2.5

92200-1635

$3.75

92210

NUT,25MM

92210-1225

$14.56

92210A

NUT,LOCK,10MM

92210-1351

$5.84

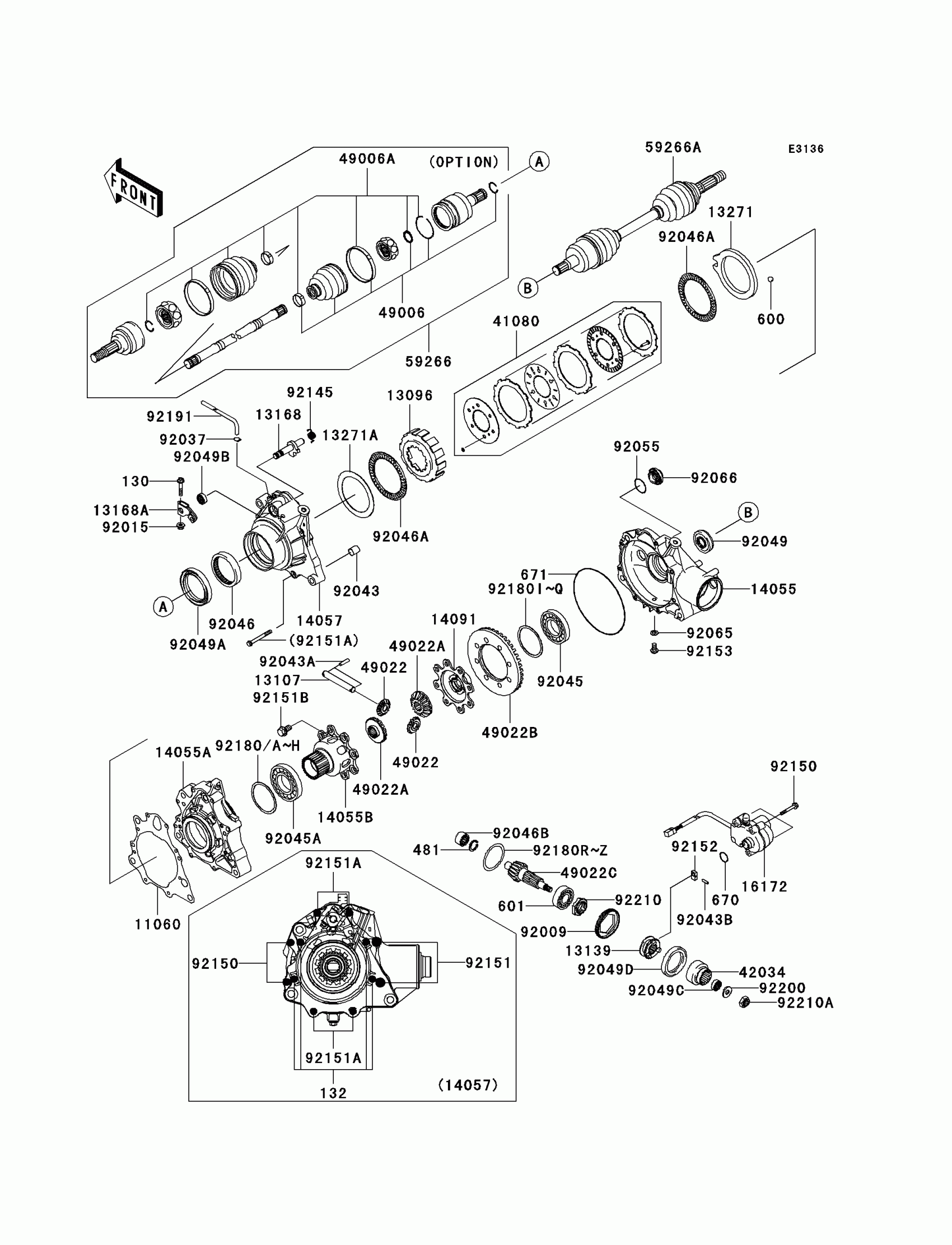

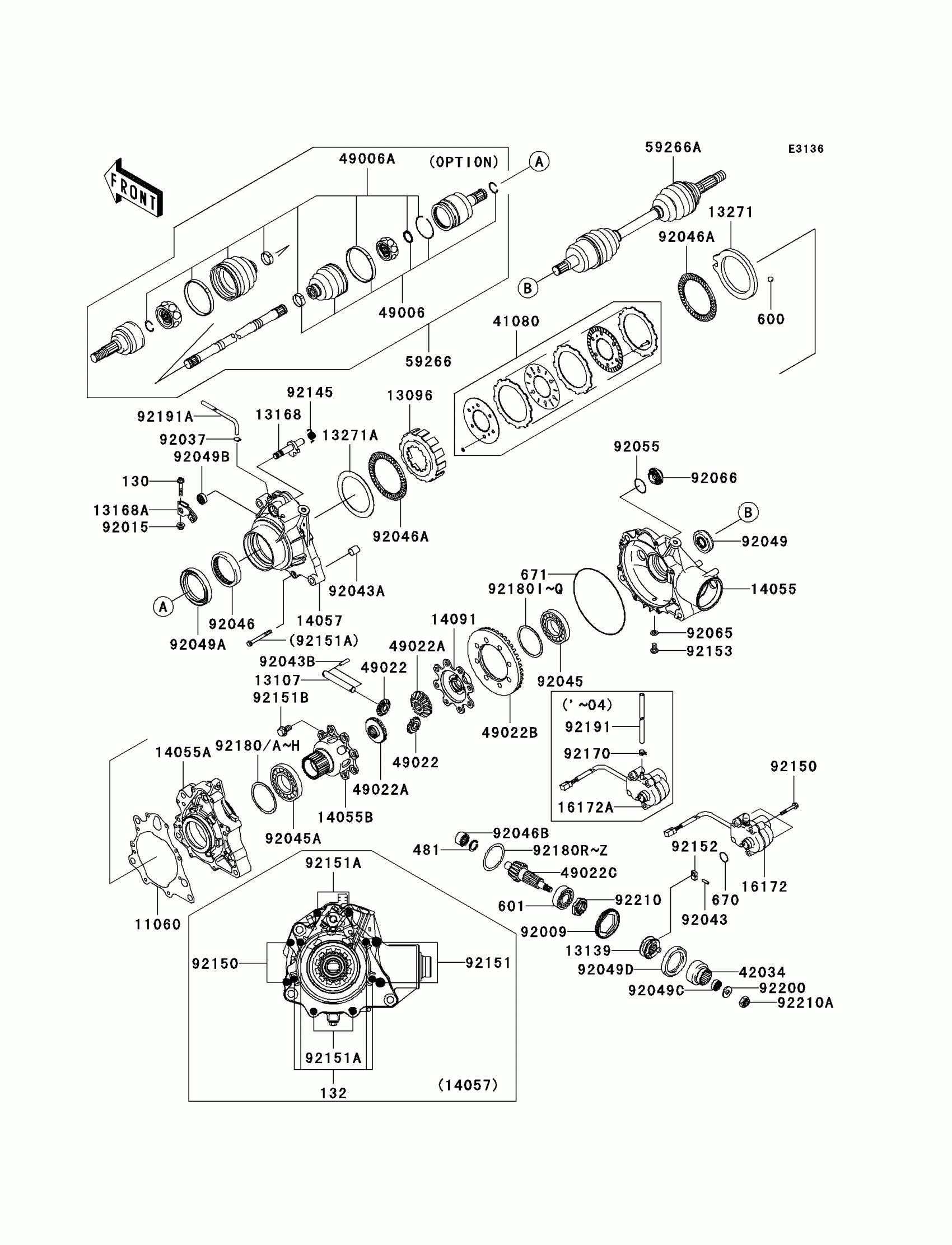

Kawasaki Prairie 700 4x4 Drive Shaft-Front Diagram

GASKET,DIFF CASE

HOUSING-CLUTCH,DISC

SHAFT,BEVEL

SHIFTER,DIFFERENTIAL

LEVER,DIFF

LEVER,DIFFERENTIAL

PLATE,CAM

PLATE,DISC

CASE-GEAR,DIFFERENTIAL,RH

CASE-GEAR,CENTER

CASE-GEAR,BEVEL,LH

CASE-COMP-GEAR,DIFF,LH

COVER,BEVEL,RH

ACTUATOR

DISC ASSY,DIFFERENTIAL LOCK

COUPLING,BEVEL

BOOT,DOJ

BOOT,BJ

GEAR-BEVEL,10T

GEAR-BEVEL,16T

GEAR-BEVEL,35T

GEAR-BEVEL,8T

JOINT-BALL,LH

JOINT-BALL,RH

SCREW,64MM

NUT,LOCK,FLANGED,6MM

CLAMP-HOSE

PIN,2X10.5

PIN,6.2X8X14

PIN

BEARING-BALL,60/32

BEARING-BALL,6910

BEARING-NEEDLE,TA627412ZE02

BEARING-NEEDLE,AK1116

BEARING-NEEDLE,AJ501515W

SEAL-OIL,SDD7 22X48X7HS

SEAL-OIL,HTCY 62X81X10.5

SEAL-OIL,TC 12X22X7

SEAL-OIL,KB 13X19X13

SEAL-OIL,TCY 48X65X8

RING-O,25.7X2.4

GASKET,8.5X16X1

PLUG

SPRING,DIFF RETURN

BOLT,6X45

BOLT,8X50

BOLT,6X60

BOLT,10X19.5

COLLAR

BOLT,8X15

SHIM,62X71X0.15

SHIM,62X71X0.20

SHIM,62X71X0.50

SHIM,62X71X0.70

SHIM,62X71X0.80

SHIM,62X71X0.90

SHIM,62X71X1.00

SHIM,62X71X1.10

SHIM,62X71X1.20

SHIM,32X42X0.15

SHIM,32X42X0.20

SHIM,32X42X0.50

SHIM,32X42X0.70

SHIM,32X42X0.80

SHIM,32X42X0.90

SHIM,32X42X1.00

SHIM,32X42X1.10

SHIM,32X42X1.20

SHIM,50X61X0.15

SHIM,50X61X0.20

SHIM,50X61X0.50

SHIM,50X61X0.70

SHIM,50X61X0.80

SHIM,50X61X0.90

SHIM,50X61X1.00

SHIM,50X61X1.10

SHIM,50X61X1.20

BOLT-FLANGED,6X35

BOLT-FLANGED-SMALL,6X30
