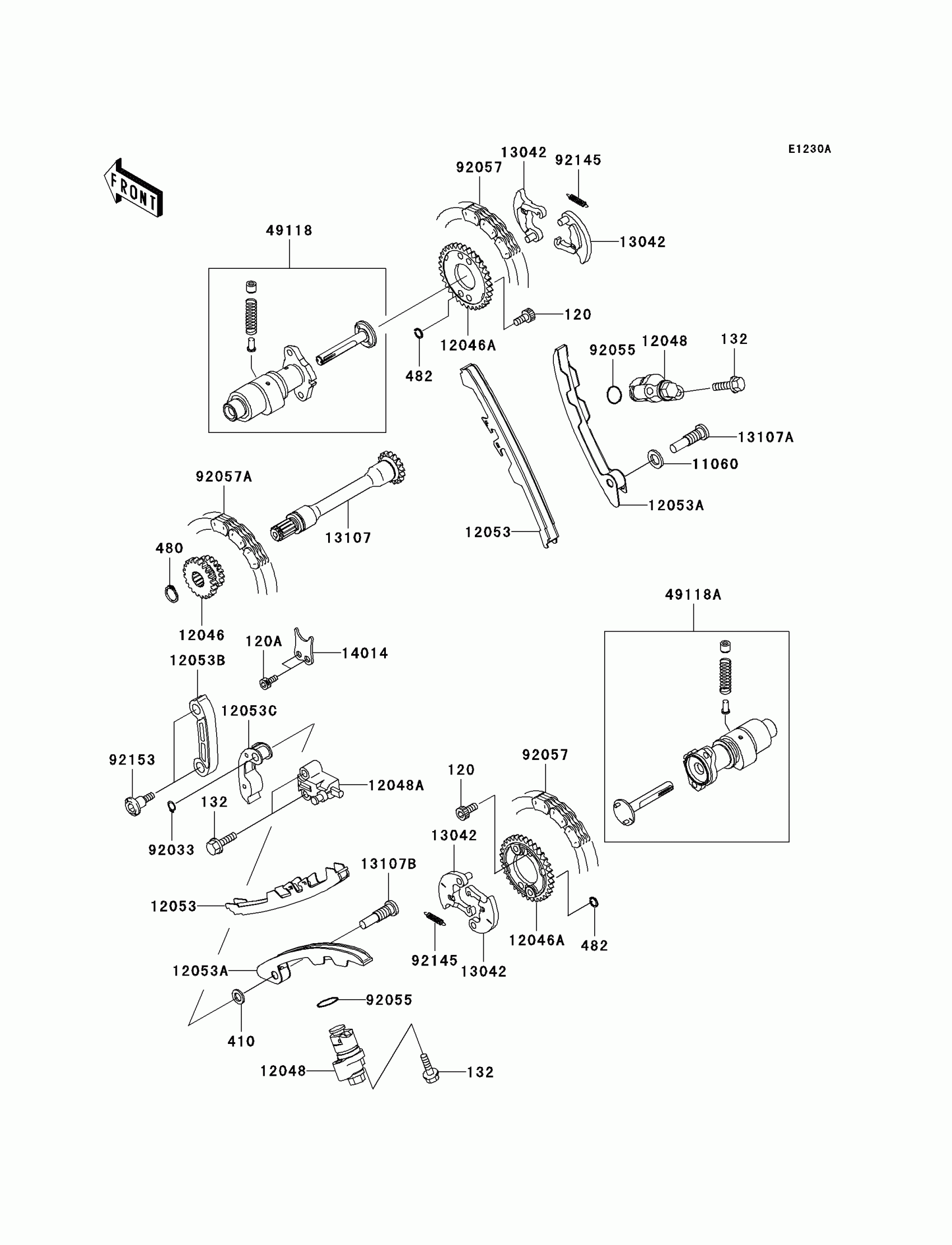

Kawasaki Prairie 700 4x4 Camshaft(s)/Tensioner(A2) Diagram

#

Description
Price

120

BOLT-SOCKET,6X10

120P0610

Unavailable

120A

BOLT-SOCKET,6X14

120S0614

Unavailable

132

BOLT-FLANGED-SMALL,6X30

132Y0630

Unavailable

410

WASHER PLAIN 8MM

410B0800

Unavailable

480

CIRCLIP-TYPE-C,14MM

480J1400

$3.97

482

CIRCLIP-TYPE-E,5MM

482J5000

$2.73

11060

GASKET

11060-1966

$1.86

12046

SPROCKET,21T&17T

12046-0021

Unavailable

12046A

SPROCKET,CAMSHAFT,34T

12046-1203

$61.73

12048

TENSIONER-ASSY,CAM

12048-1176

$137.03

12048A

TENSIONER-ASSY,SECONDARY

12048-1177

$142.70

12053

GUIDE-CHAIN,CAMSHAFT,TENSION

12053-1441

$49.06

12053A

GUIDE-CHAIN,CAMSHAFT,SLACK

12053-1442

$51.81

12053B

GUIDE-CHAIN,TENSION

12053-1443

$25.59

12053C

GUIDE-CHAIN,SLACK

12053-1444

$50.48

13042

WEIGHT,DECOMP

13042-1141

$44.85

13107

SHAFT

13107-0029

$171.54

13107A

SHAFT,CHAIN GUIDE,FR

13107-1443

$10.49

13107B

SHAFT,CHAIN GUIDE,RR

13107-1444

$12.32

14014

PLATE-POSITION,DRIVE

14014-1148

Unavailable

49118

CAMSHAFT-COMP,FR

49118-1193

Unavailable

49118A

CAMSHAFT-COMP,RR

49118-1194

Unavailable

92033

RING-SNAP,8MM

92033-1039

$3.39

92055

RING-O,18.8X1.9

92055-086

$3.43

92057

CHAIN,CAM SHAFT

92057-1487

$40.32

92057A

CHAIN,SECONDARY SHAFT

92057-1488

$28.82

92145

SPRING,DECOMP

92145-1303

$2.51

92153

BOLT,SOCKET,6X24.5

92153-1200

$9.18
