2002 Kawasaki Prairie 650 4X4 Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2002 Kawasaki Prairie 650 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

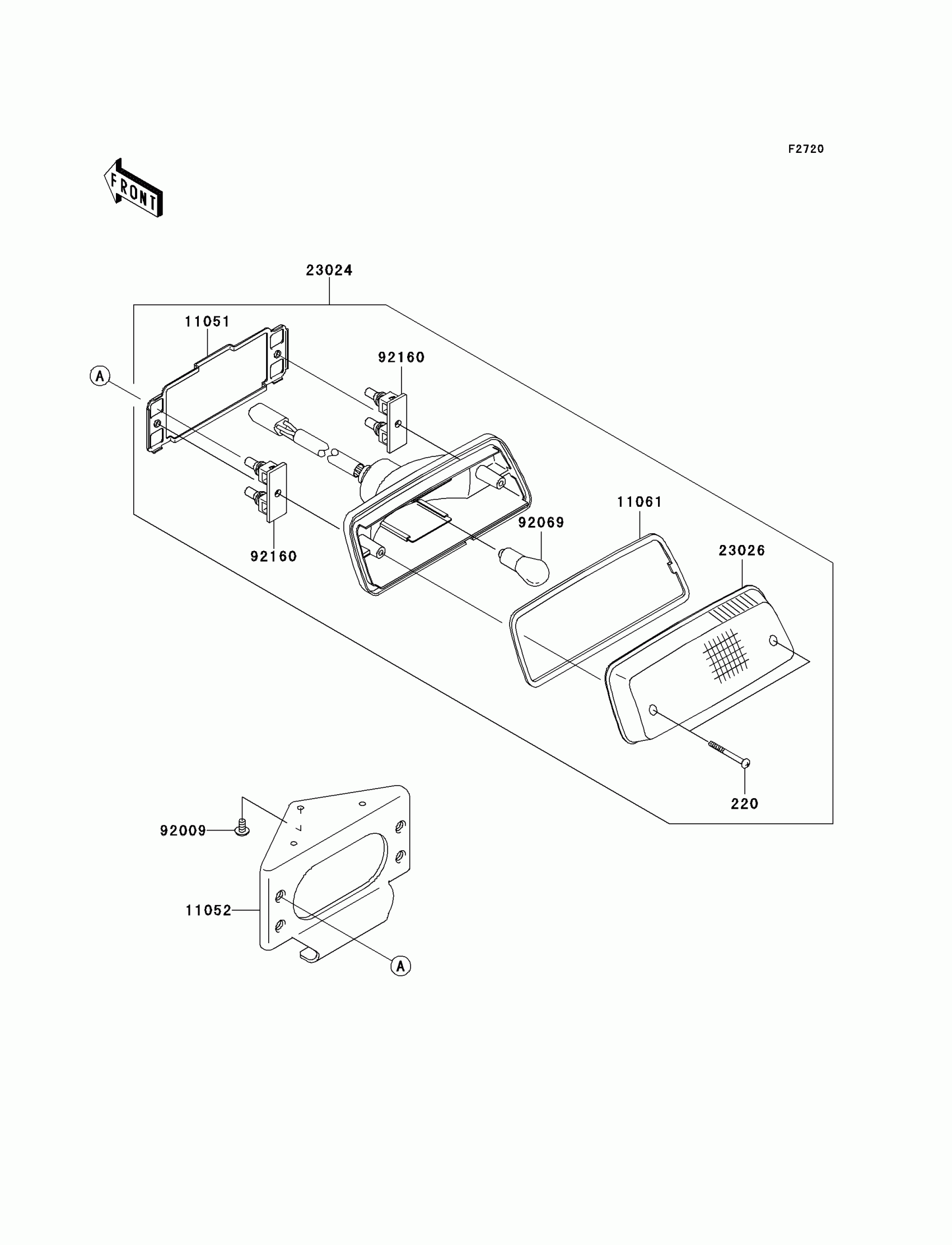

2002 Kawasaki Prairie 650 4X4 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW-PAN-CROS

220B0440

1
Out of stock

11051

BRACKET,TAIL LAMP

11051-1870

1

$12.32

In stock

11052

BRACKET,TAIL LAMP

11052-1360

1

$4.98

In stock

11061

1

$4.39

In stock

23024

LAMP-ASSY-TAIL

23024-1130

1
Out of stock

23026

LENS,TAIL LAMP

23026-1230

1

$23.02

In stock

92009

SCREW,TAPPING,5X10

92009-1332

1
Out of stock

92069

BULB,12V 21/5W

92069-063

1

$7.39

In stock

92160

DAMPER,TAIL LAMP

92160-1053

1

$7.04

In stock
