2002 Kawasaki Prairie 650 4X4 Suspension Diagram

← All diagrams

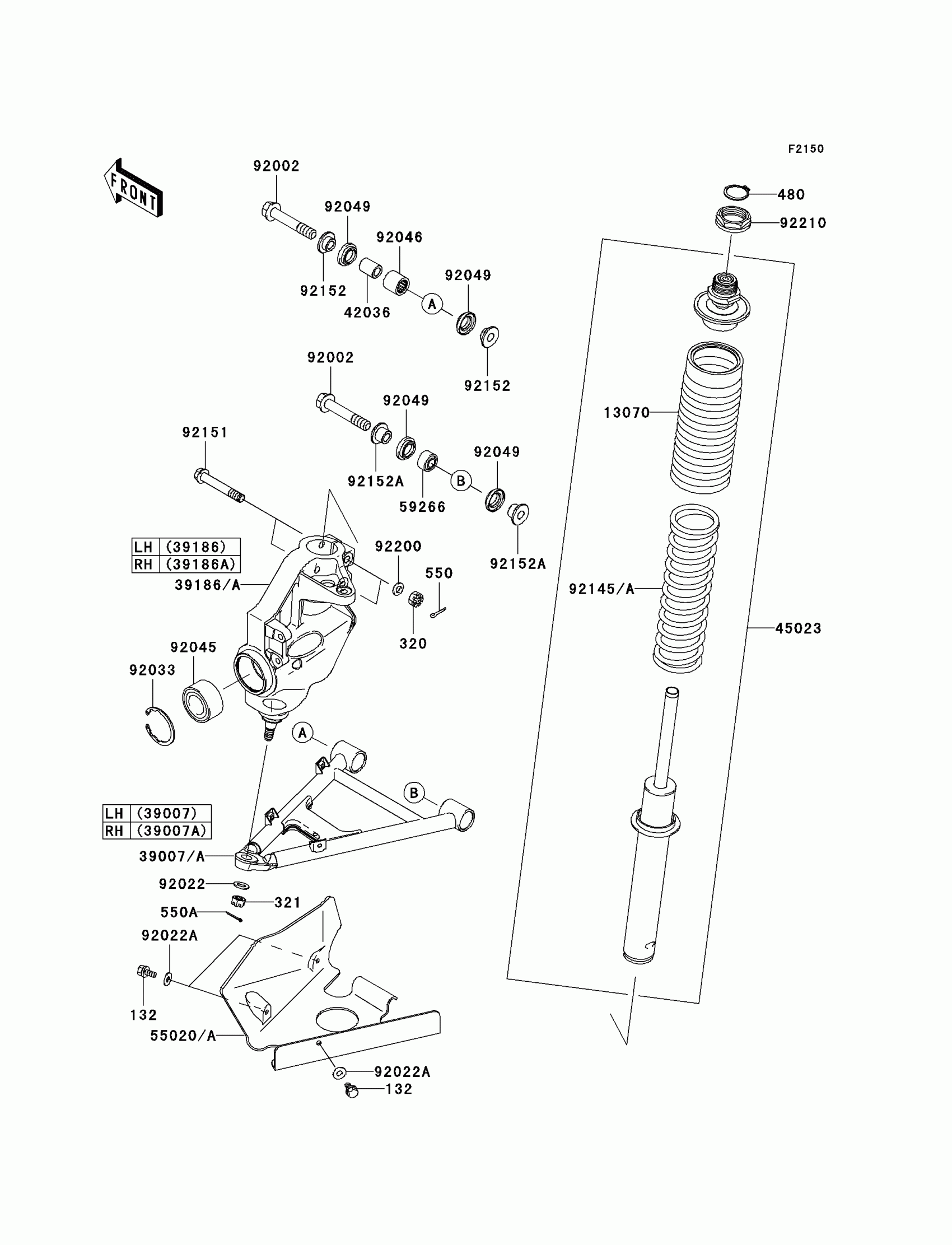

Find the part on the Suspension diagram for your 2002 Kawasaki Prairie 650 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki Prairie 650 4X4 Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

320

NUT-CASTLE

320H1000

1
Out of stock

321

NUT-CASTLE,12MM

321H1200

1
Out of stock

480

CIRCLIP-TYPE-C,32MM

480J3200

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

550A

PIN-COTTER,3.0X25

550D3025

1
Out of stock

13070

GUIDE,STRUT

13070-1383

1
Out of stock

39007

ARM-SUSP,LH

39007-0058

1

$89.09

In stock

39007A

ARM-SUSP,RH

39007-0059

1

$89.09

In stock

39186

KNUCKLE ASSY,FR,LH

39186-0041

1

$269.60

In stock

39186A

KNUCKLE ASSY,FR,RH

39186-0042

1

$269.60

In stock

42036

SLEEVE,12X20X26.7

42036-1365

1
Out of stock

45023

STRUT

45023-1014

1
Out of stock

55020

GUARD,FRONT AXLE,LH

55020-1768

1
Out of stock

55020A

GUARD,FRONT AXLE,RH

55020-1769

1
Out of stock

59266

JOINT-BALL

59266-1118

1
Out of stock

92002

BOLT,FLANGED,12X67

92002-1861

1
Out of stock

92022

WASHER,12.3X22X1.6

92022-1065

1
Out of stock

92022A

WASHER,7X16X1.2

92022-1344

1
Out of stock

92033

RING-SNAP,55MM

92033-1274

1
Out of stock

92045

BEARING-BALL,30BWD08A

92045-1448

1
Out of stock

92046

BEARING-NEEDLE,TA202725ZE

92046-1290

1
Out of stock

92049

SEAL-OIL,MF020N3

92049-1539

1
Out of stock

92145

SPRING,STRUT,K=10.8N/MM

92145-0009

1
Out of stock

92145A

SPRING,STRUT,K=9.81N/MM

92145-1445

1
Out of stock

92151

BOLT,FLANGED,10X65

92151-1709

1
Out of stock

92152

COLLAR

92152-1295

1
Out of stock

92152A

COLLAR

92152-1296

1
Out of stock

92200

WASHER,10.5X19X2.3

92200-1042

1
Out of stock

92210

NUT,FLANGED,35MM

92210-1226

1
Out of stock
