2002 Kawasaki Prairie 650 4X4 Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2002 Kawasaki Prairie 650 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

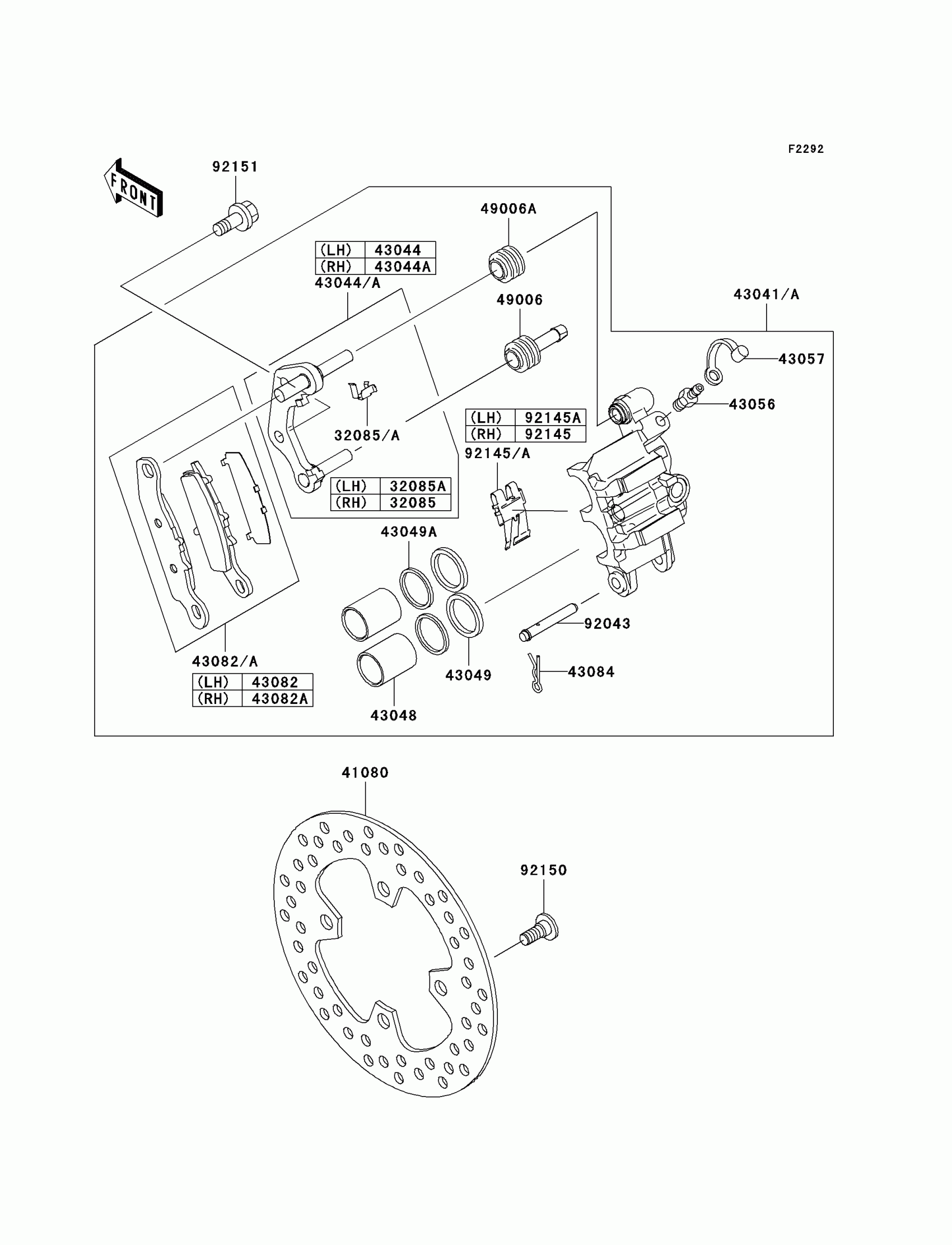

2002 Kawasaki Prairie 650 4X4 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32085

STOPPER

32085-1437

1
Out of stock

32085A

STOPPER,LH

32085-1517

1
Out of stock

41080

DISC,FR

41080-1513

1
Out of stock

43041

CALIPER-ASSY,FR,RH,BLACK

43041-1806-DJ

1
Out of stock

43041A

CALIPER-ASSY,FR,LH,BLACK

43041-1807-DJ

1
Out of stock

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1130

1
Out of stock

43044A

HOLDER-COMP-CALIPER,FR,RH

43044-1131

1
Out of stock

43048

PISTON-CALIPER

43048-1083

1
Out of stock

43049

PACKING,PISTON

43049-1059

1
Out of stock

43049A

PACKING,PISTON SEAL

43049-1090

1
Out of stock

43056

BREATHER-BRAKE

43056-1054

1
Out of stock

43057

CAP-BREATHER

43057-003

1
Out of stock

43082

PAD-ASSY-BRAKE,LH

43082-1255

1
Out of stock

43082A

PAD-ASSY-BRAKE,RH

43082-1273

1
Out of stock

43084

CLAMP,PAD

43084-003

1
Out of stock

49006

BOOT,CALIPER

49006-1054

1
Out of stock

49006A

BOOT,CALIPER

49006-1055

1
Out of stock

92043

PIN,PAD

92043-1356

1
Out of stock

92145

SPRING,PAD

92145-1260

1
Out of stock

92145A

SPRING,PAD,LH

92145-1354

1
Out of stock

92150

BOLT,SOCKET,8X20

92150-1760

1
Out of stock

92151

BOLT,FLANGED,8X19

92151-1793

1
Out of stock
