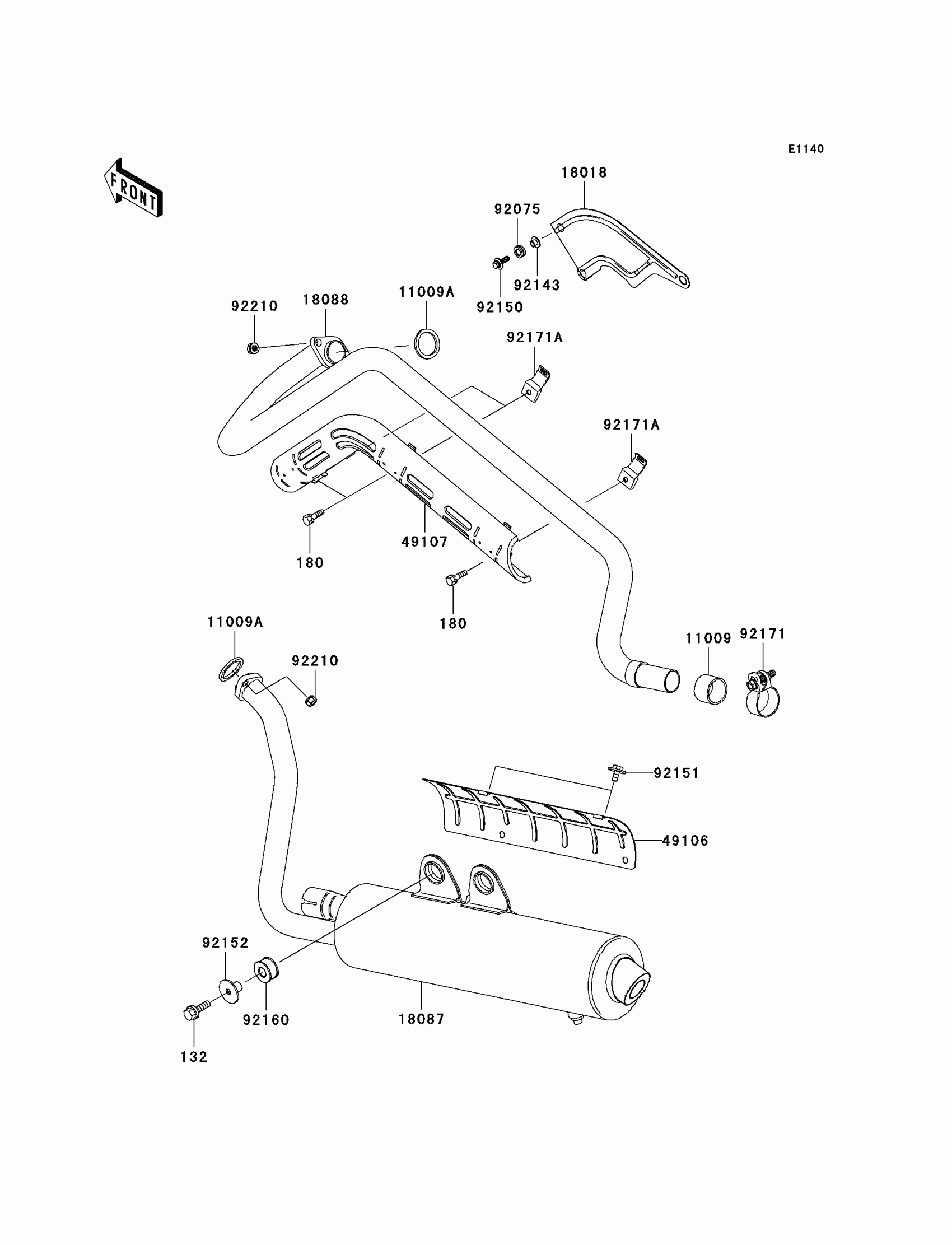

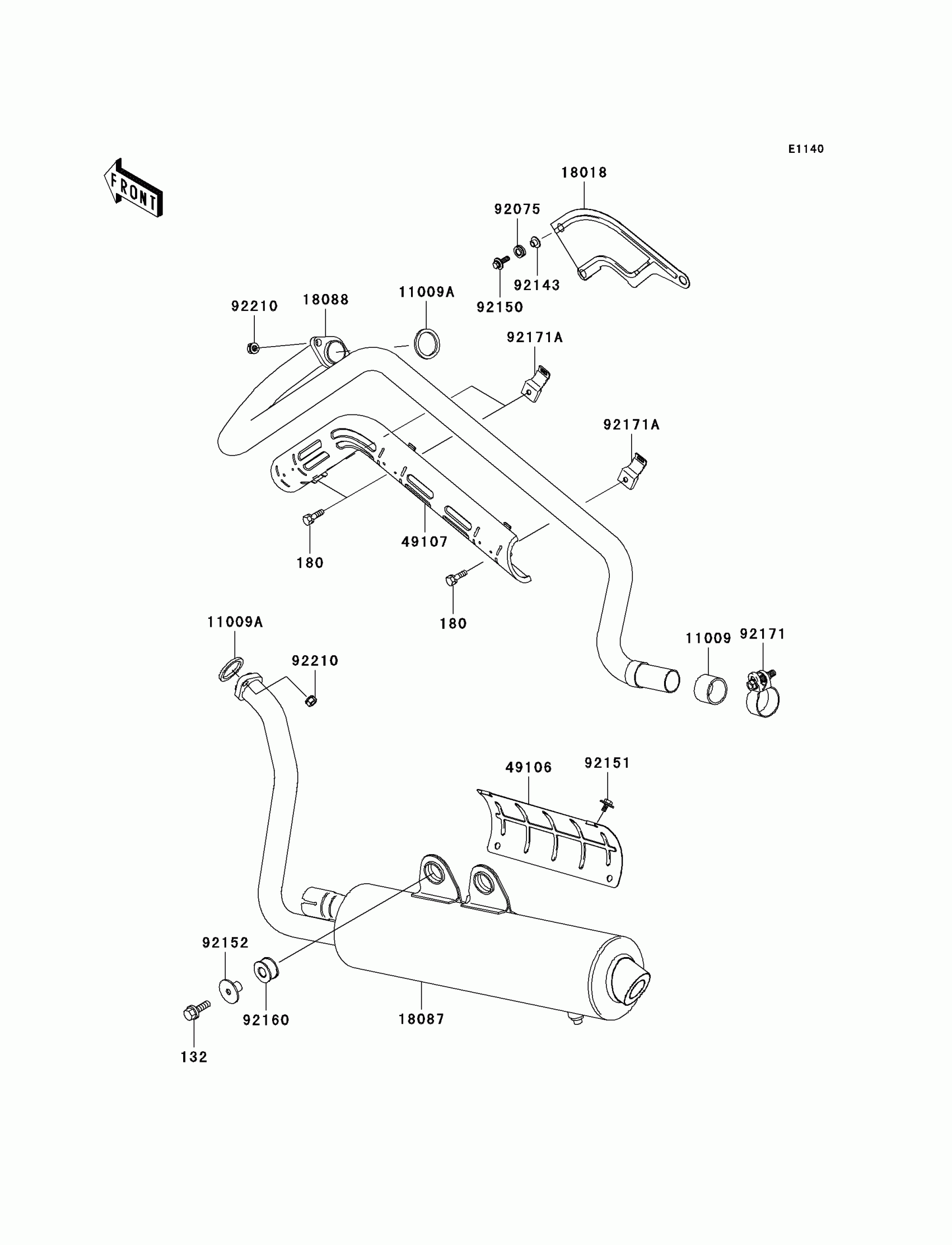

Kawasaki Prairie 650 4X4 Advantage Classic Muffler(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL

132Y0830

Unavailable

180

BOLT-UPSET-WS,6X20

180Y0620

$2.00

11009

GASKET,MUFFLER CONNECTING

11009-1865

Unavailable

11009A

GASKET,EXHAUST HOLDER

11009-1894

$6.13

18018

PLATE-HEAT GUARD

18018-1134

$8.80

18087

MUFFLER

18087-1148

Unavailable

18088

PIPE-EXHAUST

18088-1140

$250.14

49106

COVER-MUFFLER

49106-1269

$8.14

49107

COVER-EXHAUST PIPE

49107-1210

$53.33

92075

DAMPER

92075-1947

$5.61

92143

COLLAR

92143-1057

$3.81

92150

BOLT,FLANGED,6X20

92150-1633

$3.53

92151

BOLT,UPSET-WP,6X12

92151-1944

$3.72

92152

COLLAR,MUFFLER

92152-1152

$6.08

92160

DAMPER,MUFFLER

92160-1990

$3.98

92171

CLAMP

92171-1330

$18.06

92171A

CLAMP

92171-1357

$6.12

92210

NUT,8MM

92210-1242

$1.73
