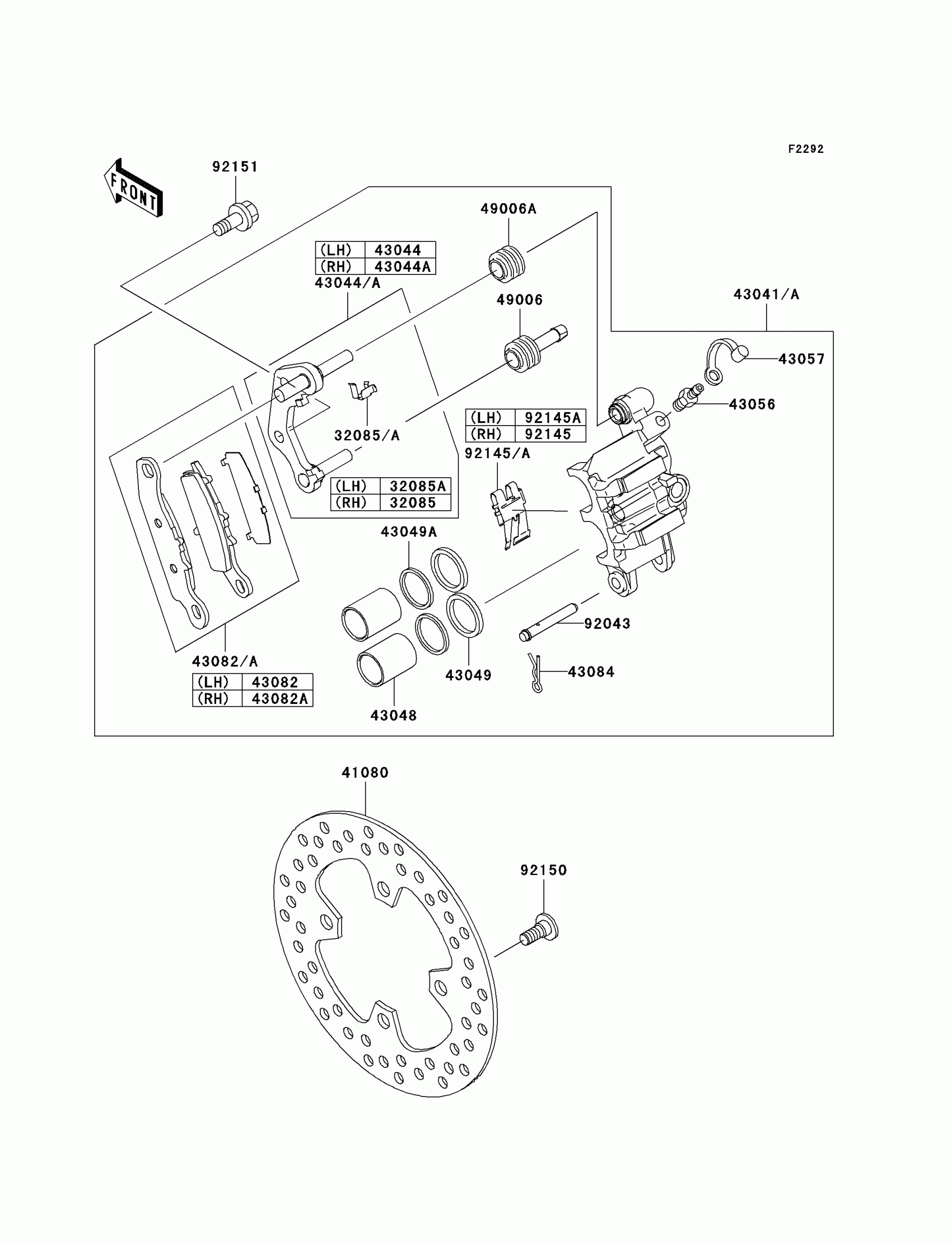

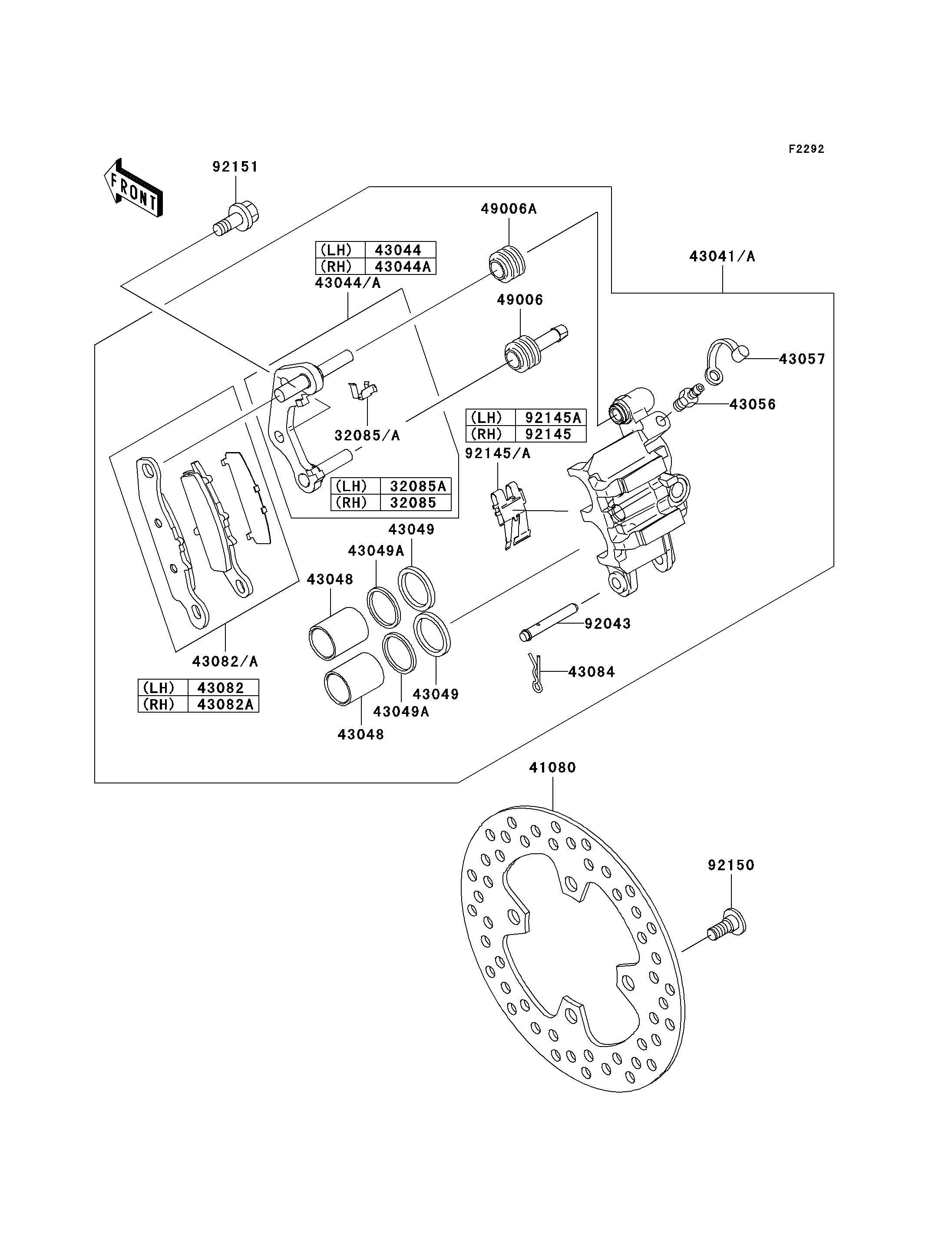

Kawasaki Prairie 650 4X4 Advantage Classic Front Brake Diagram
#
Description
Price
32085
STOPPER
32085-1437
Unavailable
32085A
STOPPER,LH
32085-1517
Unavailable
41080
DISC,FR
41080-1513
Unavailable
43041
CALIPER-ASSY,FR,RH,BLACK
43041-1806-DJ
Unavailable
43041A
CALIPER-ASSY,FR,LH,BLACK
43041-1807-DJ
Unavailable
43044
HOLDER-COMP-CALIPER,FR,LH
43044-1130
Unavailable
43044A
HOLDER-COMP-CALIPER,FR,RH
43044-1131
Unavailable
43048
PISTON-CALIPER
43048-1083
Unavailable
43049
PACKING,PISTON
43049-1059
Unavailable
43049A
PACKING,PISTON SEAL
43049-1090
Unavailable
43056
BREATHER-BRAKE
43056-1054
Unavailable
43057
CAP-BREATHER
43057-003
Unavailable
43082
PAD-ASSY-BRAKE,LH
43082-1255
Unavailable
43082A
PAD-ASSY-BRAKE,RH
43082-1273
Unavailable
43084
CLAMP,PAD
43084-003
Unavailable
49006
BOOT,CALIPER
49006-1054
Unavailable
49006A
BOOT,CALIPER
49006-1055
Unavailable
92043
PIN,PAD
92043-1356
Unavailable
92145
SPRING,PAD
92145-1260
Unavailable
92145A
SPRING,PAD,LH
92145-1354
Unavailable
92150
BOLT,SOCKET,8X20
92150-1800
Unavailable
92151
BOLT,FLANGED,8X19
92151-1793
Unavailable
