2002 Kawasaki Prairie 400 Optional Parts ) Diagram

← All diagrams

Find the part on the Optional Parts ) diagram for your 2002 Kawasaki Prairie 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

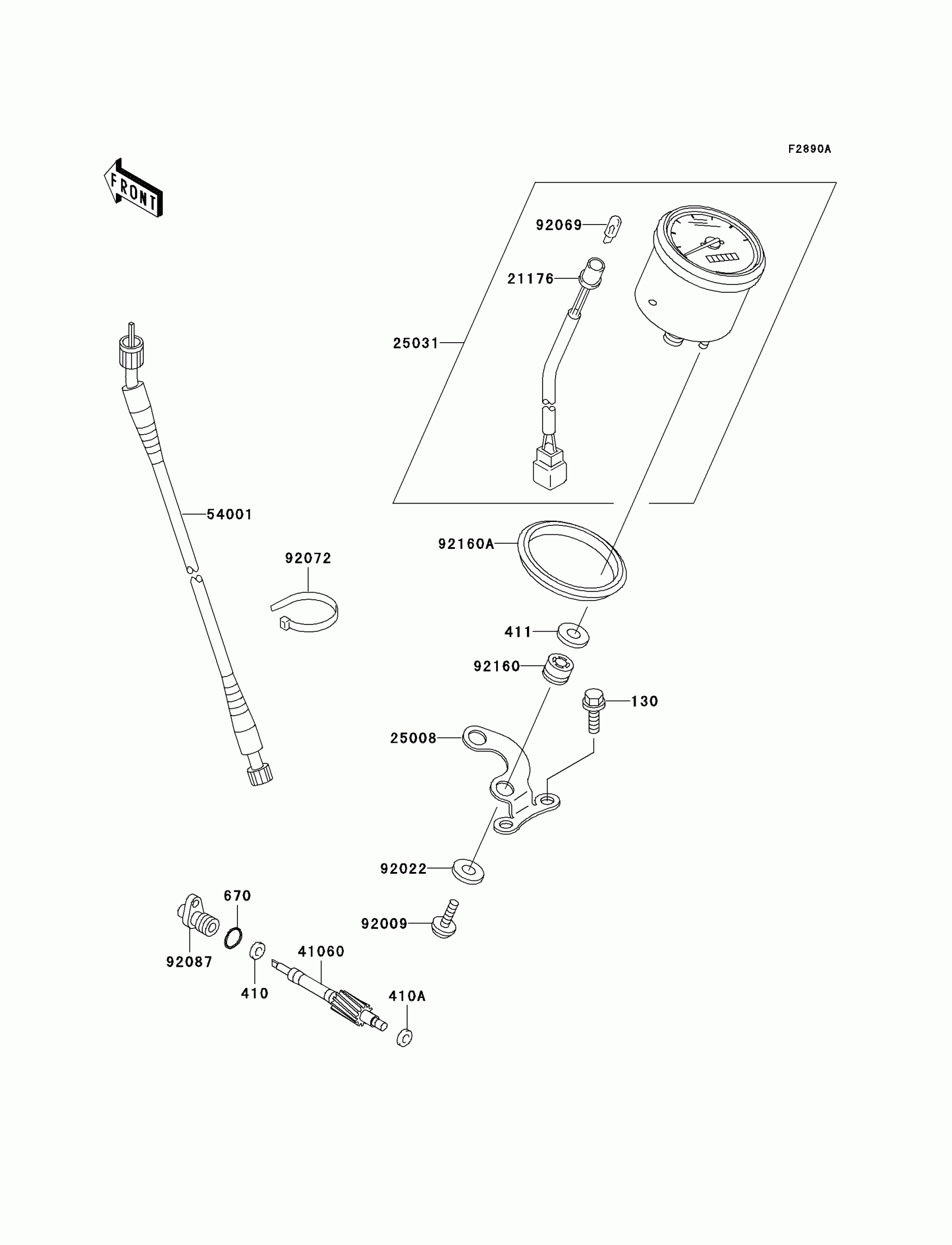

2002 Kawasaki Prairie 400 Optional Parts ) Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X12

130J0812

1
Out of stock

410

WASHER PLAIN 5MM

410B0500

1
Out of stock

410A

1

$1.19

In stock

21176

CORD ASSY,SPEEDOMETER

21176-1059

1
Out of stock

25008

BRACKET-METER

25008-1221

1

$14.37

In stock

25031

METER-ASSY,MPH

25031-1080

1

$333.16

In stock

41060

GEAR-METER SCREW

41060-1157

1
Out of stock

54001

CABLE-SPEEDMETER

54001-1232

1
Out of stock

92009

SCREW,5X12

92009-3740

1
Out of stock

92022

WASHER,6.5X16X1.0

92022-1093

1

$1.73

In stock

92069

BULB,12V 1.7W,T10

92069-1059

1

$3.94

In stock

92072

BAND,L=186

92072-056

1

$3.97

In stock

92087

BUSHING-METER GEAR

92087-1057

1

$22.88

In stock

92160

DAMPER

92160-1461

1

$7.39

In stock

92160A

DAMPER,SPEEDOMETER

92160-1959

1

$7.66

In stock

411

WASHER PLAIN 8MM

411B0800

1
Out of stock

670

O RING,12MM

670B2012

1

$2.58

In stock
