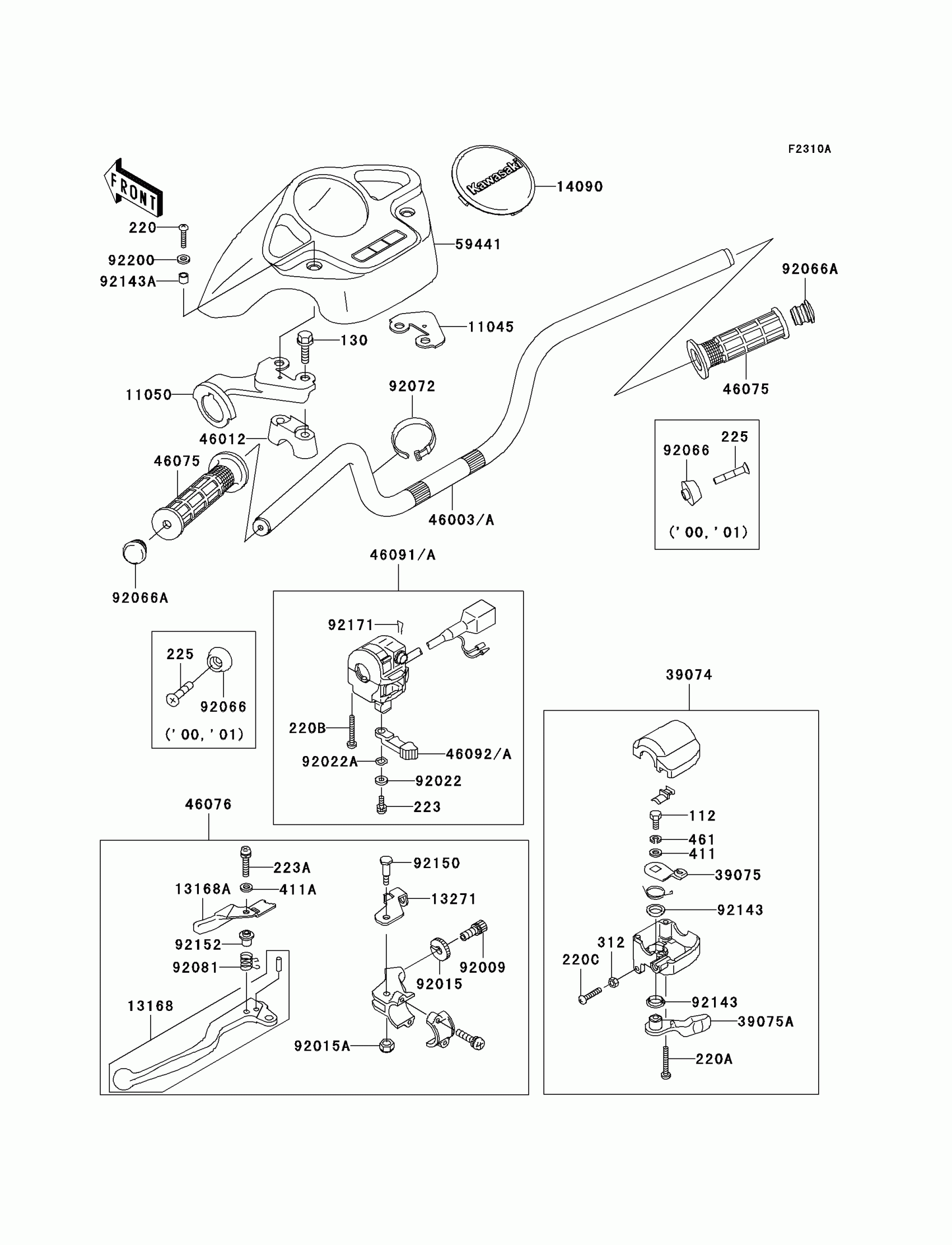

Kawasaki Prairie 400 Handlebar(D2-D4) Diagram

#

Description
Price

112

BOLT-UPSET

112D0614

$0.48

130

BOLT-FLANGED,8X60

130P0860

Unavailable

220

SCREW-PAN-CROS,4X16

220C0416

Unavailable

220A

SCREW-PAN-CROS,5X30

220C0530

Unavailable

220B

SCREW-PAN-CROS,5X35

220C0535

$1.49

220C

SCREW-PAN HEAD,6X30

220C0630

$1.41

11045

BRACKET,HANDLE COVER,RH

11045-1925

$7.56

11050

BRACKET,HANDLE COVER,LH

11050-1727

$16.44

13168

LEVER,LH

13168-1672

$36.80

13168A

LEVER,LOCK

13168-1673

Unavailable

13271

PLATE,LOCK

13271-1259

$16.64

14090

COVER,BLIND CAP,F.BLACK

14090-1945-6Z

$12.57

39074

LEVER-ASSY-THROTTLE

39074-1055

$80.61

39075

LEVER-THROTTLE,ARM

39075-1054

$11.03

39075A

LEVER-THROTTLE

39075-1059

Unavailable

46003A

HANDLE

46003-1573

$79.46

46012

HOLDER-HANDLE

46012-1168

$15.44

46075

GRIP

46075-1056

$20.92

46076

LEVER-ASSY-GRIP,LH

46076-1224

$55.99

46091A

HOUSING-ASSY-CONTROL,LH

46091-1848

$204.20

46092A

LEVER-GRIP,CHOKE

46092-1217

$4.15

59441

COVER-HANDLE,F.BLACK

59441-1143-6Z

Unavailable

92009

SCREW,CABLE ADJUST,8MM

92009-1435

$12.40

92015

NUT,CABLE ADJUST LOCK,8MM

92015-1596

$6.75

92015A

NUT

92015-1829

$3.12

92022

WASHER,5MM

92022-1837

$2.31

92022A

WASHER,WAVE,5MM

92022-1838

$2.31

92066A

PLUG

92066-1550

$8.66

92072

BAND,L=149

92072-031

$3.81

92081

SPRING,LOCK RETURN

92081-1358

$4.80

92143

COLLAR

92143-1138

$3.15

92143A

COLLAR,5.6X8X7

92143-1336

$1.12

92150

BOLT

92150-1420

Unavailable

92152

COLLAR

92152-1176

$3.85

92171

CLAMP,CLIP

92171-1095

$2.49

92200

WASHER,4.5X11.5X0.8

92200-1361

$3.92

223

SCREW-PAN-WS-CROS,5X12

223C0512

$3.29

223A

SCREW-PAN-WS-CROS

223C0520

Unavailable

312

NUT-HEX,6MM,BLACK

312C0600

Unavailable

411

WASHER-PLAIN,6MM

411E0600

$1.03

411A

WASHER-PLAIN,5MM,BLACK

411F0500

Unavailable

461

WASHER-SPRING

461L0600

$0.66
