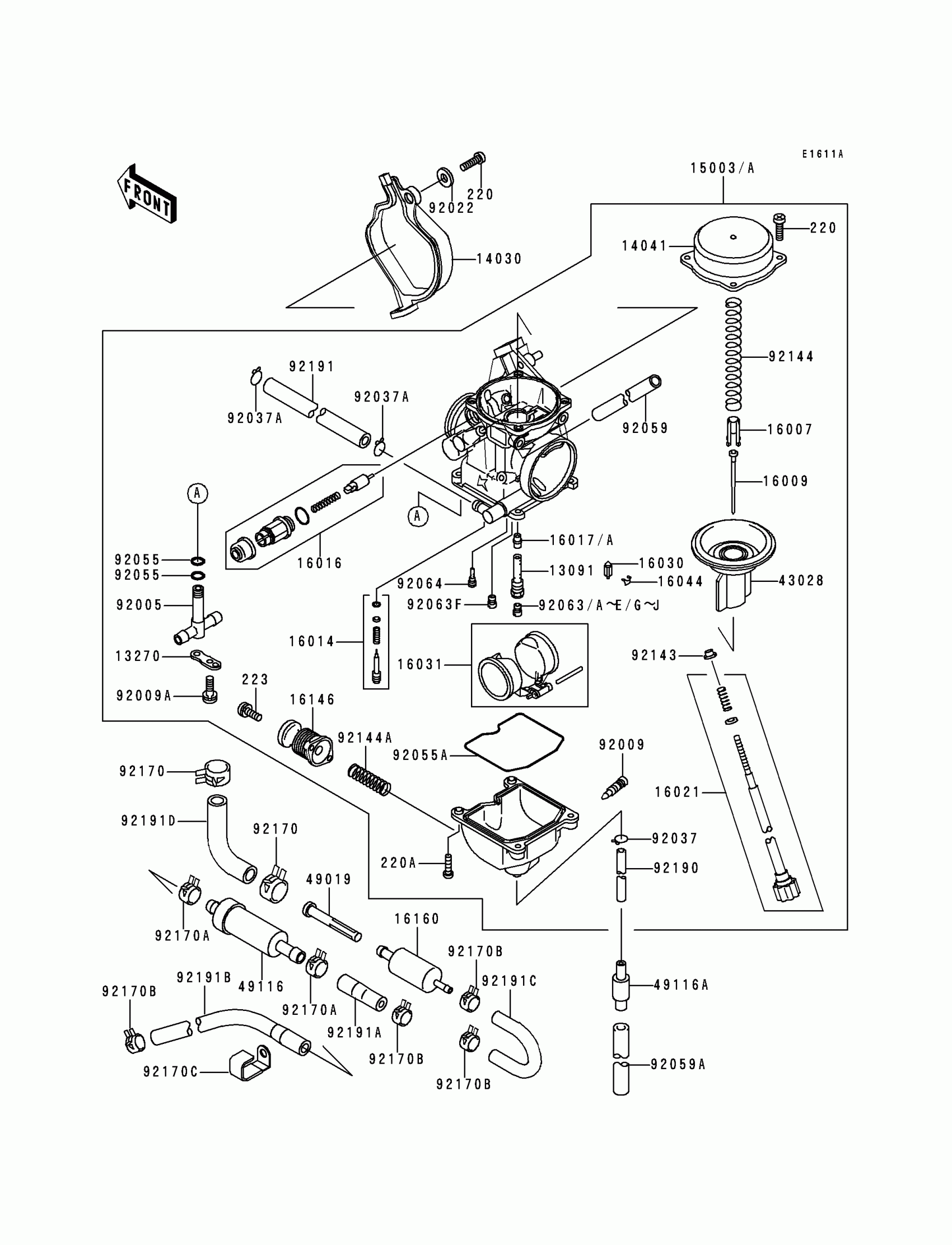

Kawasaki Prairie 400 Carburetor(VF400AE520628-) Diagram

#

Description
Price

13091

HOLDER,NEEDLE JET

13091-1259

Unavailable

13270

PLATE,FITTING STAY

13270-1063

$29.64

14030

COVER-CARBURETOR

14030-1054

$11.75

14041

COVER-COMP,MIXING,INSIDE

14041-1061

$73.52

16007

SEAT-SPRING,VALVE

16007-1134

$42.85

16009

NEEDLE-JET,N3RC

16009-1928

Unavailable

16014

SCREW-PILOT AIR

16014-1080

$20.47

16016

PLUNGER,STARTER

16016-1101

$52.78

16021

SCREW-THROTTLE STOP

16021-1213

Unavailable

16030

VALVE-FLOAT

16030-1007

$43.50

16031

FLOAT

16031-1077

$48.44

16044

CLAMP,FLOAT VALVE

16044-007

$6.30

16146

COVER-ASSY,PUMP

16146-1129

$31.93

43028

DIAPHRAGM,VALVE

43028-1081

$190.22

49116A

VALVE-ASSY

49116-1126

$19.26

92005

FITTING

92005-1235

$11.37

92009

SCREW,DRAIN,M6X0.75

92009-1551

$7.86

92009A

SCREW

92009-1713

$3.49

92022

WASHER,5.2X13X1

92022-1380

$3.43

92037

CLAMP,TUBE

92037-1201

$3.65

92037A

CLAMP,TUBE

92037-1531

$4.37

92055

RING-O,4.5X1.5

92055-1427

$5.54

92055A

RING-O,FLOAT CHAMBER

92055-1518

$22.64

92059

TUBE,6.5X9.5X260

92059-1598

$34.01

92059A

TUBE,7X10X100

92059-1736

$3.54

92063

JET-MAIN,#140

92063-1013

$11.16

92063A

JET-MAIN,#135

92063-1014

$11.16

92063B

JET-MAIN,#138

92063-1015

$11.16

92063C

JET-MAIN,#142

92063-1016

$13.39

92063E

JET-MAIN,#145

92063-1017

$11.16

92063F

JET-MAIN,#85

92063-1023

Unavailable

92063H

JET-MAIN,#148

92063-1324

$13.39

92063I

JET-MAIN,#150

92063-1330

$13.39

92063J

JET-MAIN,#152

92063-1331

$14.02

92064

JET-PILOT,#35

92064-1101

$13.38

92143

COLLAR

92143-1589

$3.27

92144

SPRING,VACUUM VALVE

92144-1066

$12.59

92144A

SPRING,PUMP

92144-1672

$10.27

92190

TUBE,4.5X8X330

92190-1557

$14.64

92191

TUBE,6.5X11.5X130

92191-1144

$23.81

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

220A

SCREW-PAN-CROS,4X14

220D0414

$3.65

223

SCREW-PAN-WS-CROS

223C0412

$3.43

15003

CARBURETOR-ASSY

15003-1401

$618.90

15003A

CARBURETOR-ASSY

15003-1415

$618.90

16017

JET-NEEDLE

16017-1319

$52.49

16017A

JET-NEEDLE,#6

16017-1393

$51.61

16160

BODY,FILTER

16160-1151

$7.48

49019

FILTER-WATER

49019-1068

$4.07

49116

VALVE-ASSY

49116-1081

$109.99

92063D

JET-MAIN,#145

92063-1017

$11.16

92063G

JET-MAIN,#148

92063-1324

$13.39

92170

CLAMP

92170-1491

$5.93

92170A

CLAMP

92170-1492

$3.97

92170B

CLAMP

92170-1493

$3.97

92170C

CLAMP

92170-1863

$24.36

92191A

TUBE

92191-1223

Unavailable

92191B

TUBE

92191-1224

Unavailable

92191C

TUBE

92191-1248

Unavailable

92191D

TUBE

92191-1249

Unavailable
