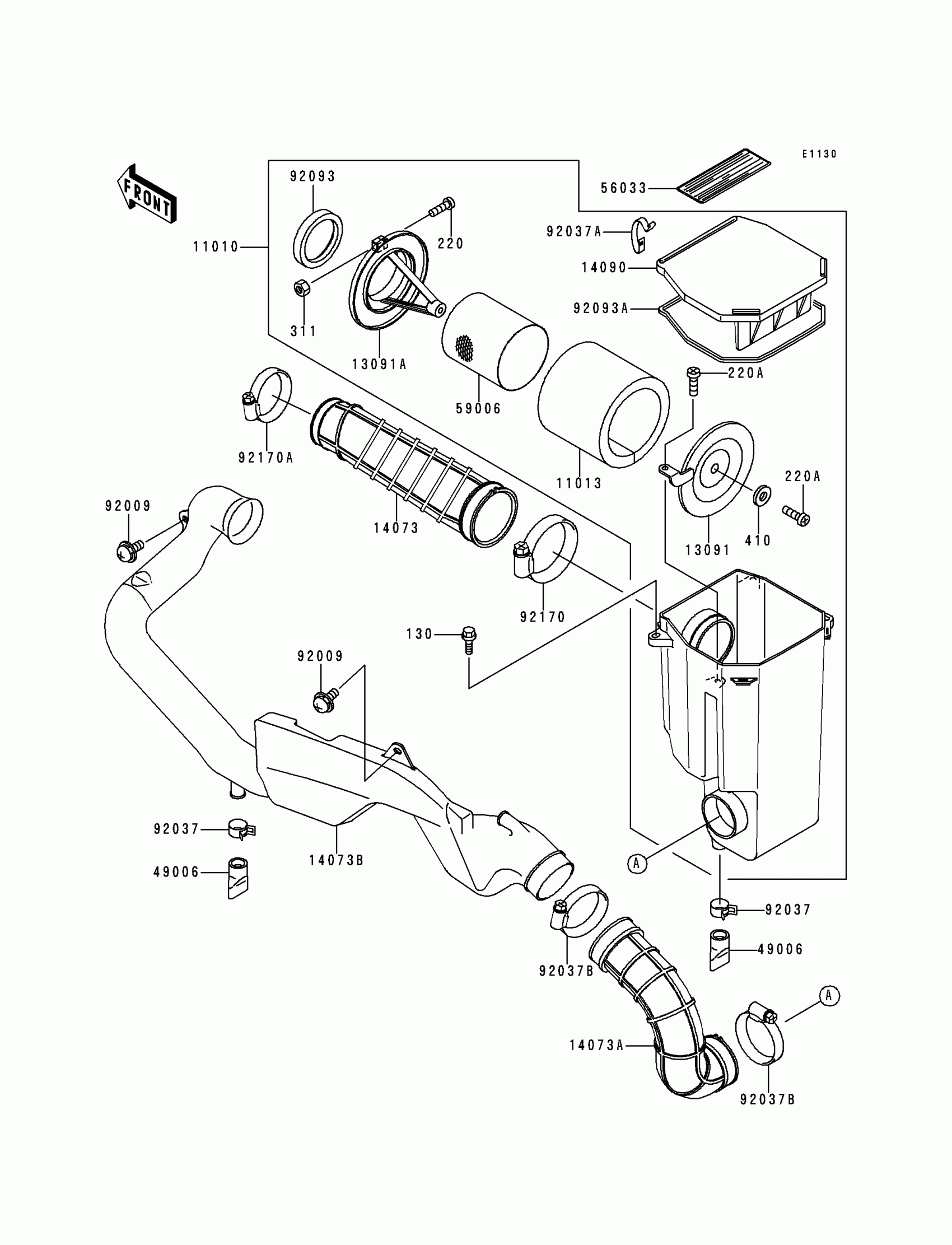

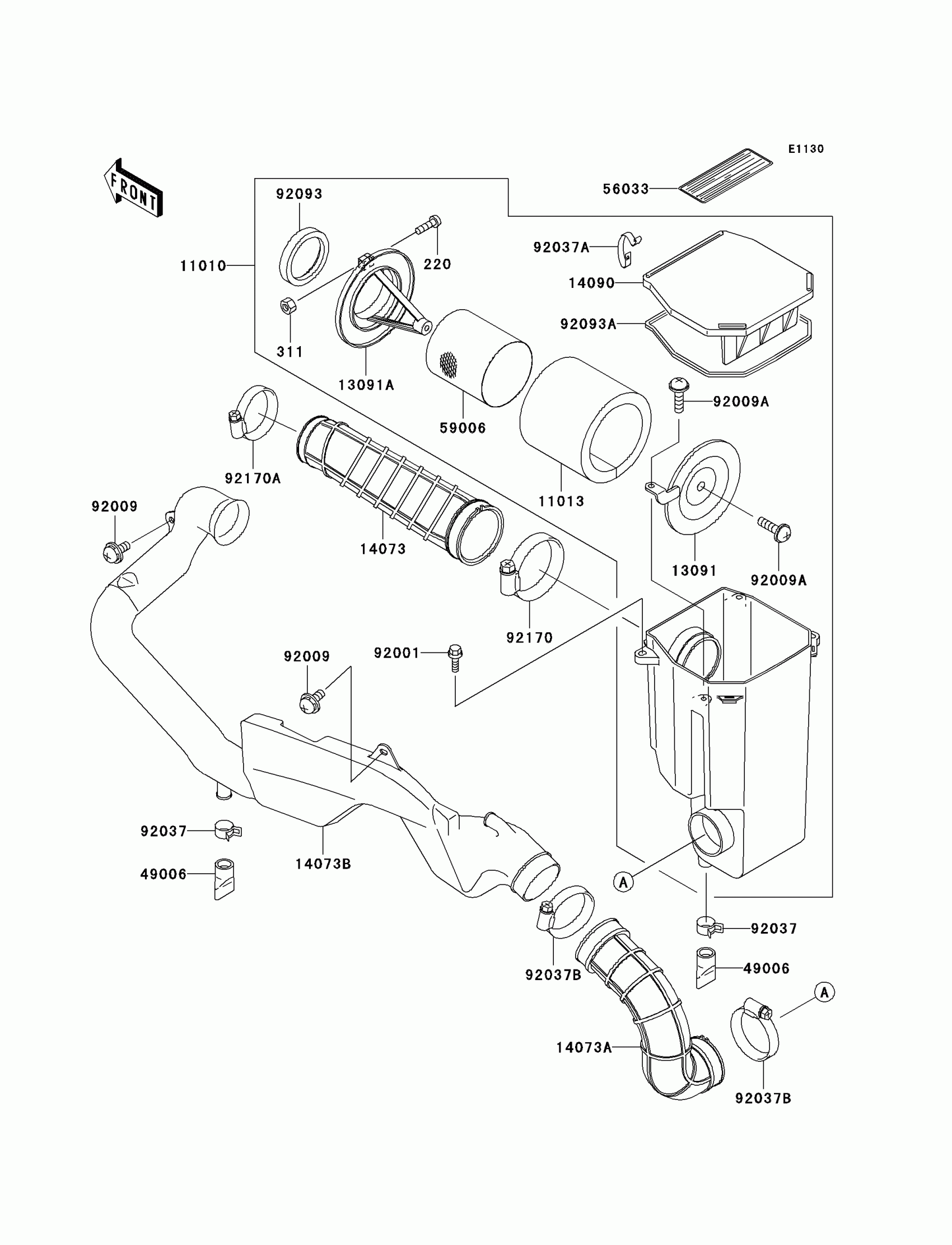

Kawasaki Prairie 400 Air Cleaner Diagram

#

Description
Price

130

BOLT-FLANGED

130J0620

Unavailable

220

SCREW PAN HEAD 5X16

220B0516

$1.49

220A

SCREW-PAN-CROS,6X14

220B0614

$1.14

311

NUT-HEX

311B0500

$0.47

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

11010

FILTER-ASSY-AIR

11010-1571

Unavailable

11013

ELEMENT-AIR FILTER

11013-1255

$10.89

13091

HOLDER,ELEMENT

13091-1488

$16.08

13091A

HOLDER,AIR FILTER ELEMENT

13091-1565

$14.06

14073

DUCT

14073-1653

$72.91

14073A

DUCT

14073-1654

$64.59

14073B

DUCT

14073-1682

$33.19

14090

COVER,AIR FILTER

14090-1663

$38.95

49006

BOOT

49006-1292

$5.93

56033

LABEL-MANUAL,MAINTENANCE

56033-1079

$2.20

59006

ARRESTER-FLAME

59006-1052

$33.70

92009

SCREW,6X16

92009-1276

$4.25

92037

CLAMP,HOSE CLIP

92037-1460

$8.23

92037A

CLAMP,AIR FILTER

92037-1783

$6.71

92037B

CLAMP

92037-3738

$5.47

92093

SEAL,DUST

92093-1322

$7.48

92093A

SEAL,FILTER CASE

92093-1404

$6.31

92170

CLAMP

92170-1679

$5.95

92170A

CLAMP

92170-1764

$8.62
