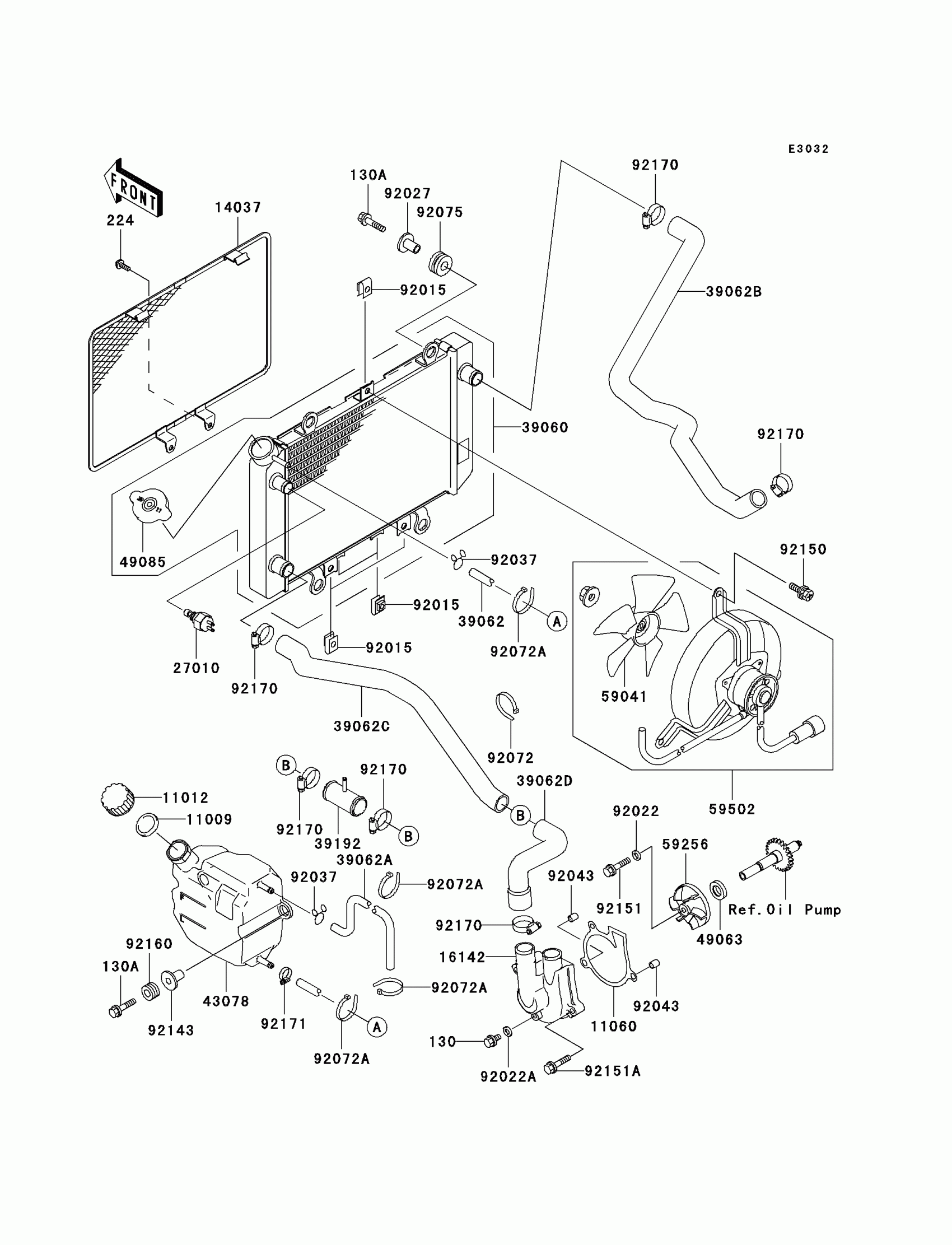

Kawasaki Prairie 400 4X4 Radiator Diagram

#

Description
Price

130

BOLT-FLANGED

130J0610

Unavailable

130A

BOLT-FLANGED,6X25

130J0625

Unavailable

224

SCREW-PAN-WP-CROS,6X12

224C0612

Unavailable

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

11060

GASKET,WATER PUMP COVER

11060-1730

$6.25

14037

SCREEN

14037-1221

$77.94

16142

COVER-PUMP

16142-1137

$84.96

27010

SWITCH,FAN

27010-1202

$88.04

39060

RADIATOR

39060-1150

$673.59

39062

HOSE-COOLING,5.5X10.5X1500

39062-1675

$10.63

39062A

HOSE-COOLING,5.5X10.5X700

39062-1676

$6.61

39062B

HOSE-COOLING,HEAD- RADIATOR

39062-1701

$41.27

39062C

HOSE-COOLING

39062-1740

$41.27

39062D

HOSE-COOLING

39062-1741

$31.70

39192

PIPE-WATER

39192-1020

$15.51

43078

RESERVOIR

43078-1163

$52.17

49063

SEAL-MECHANICAL,WATER PUMP

49063-1002

$16.33

49085

CAP-ASSY-PRESSURE

49085-1066

$33.19

59041

FAN

59041-1058

$81.82

59256

IMPELLER

59256-1073

$36.81

59502

FAN-ASSY

59502-1123

$696.56

92015

NUT

92015-1487

$3.64

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92022A

WASHER,6.2X11X1

92022-304

$2.76

92027

COLLAR,L=13.1

92027-251

Unavailable

92037

CLAMP,TUBE

92037-147

$5.61

92043

PIN,DOWEL,8X10

92043-1302

$0.84

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=186

92072-056

$3.81

92075

DAMPER RUBBER,RR FENR

92075-209

$3.57

92143

COLLAR

92143-1353

$6.54

92150

BOLT,6X12

92150-1186

$2.56

92151

BOLT,6X22

92151-1074

$5.10

92151A

BOLT,6X30

92151-1139

$1.96

92160

DAMPER,10X20X12

92160-1167

$3.57

92170

CLAMP

92170-1497

$12.75

92171

CLAMP

92171-1128

Unavailable
