1998 Kawasaki Prairie 400 4X4 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1998 Kawasaki Prairie 400 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

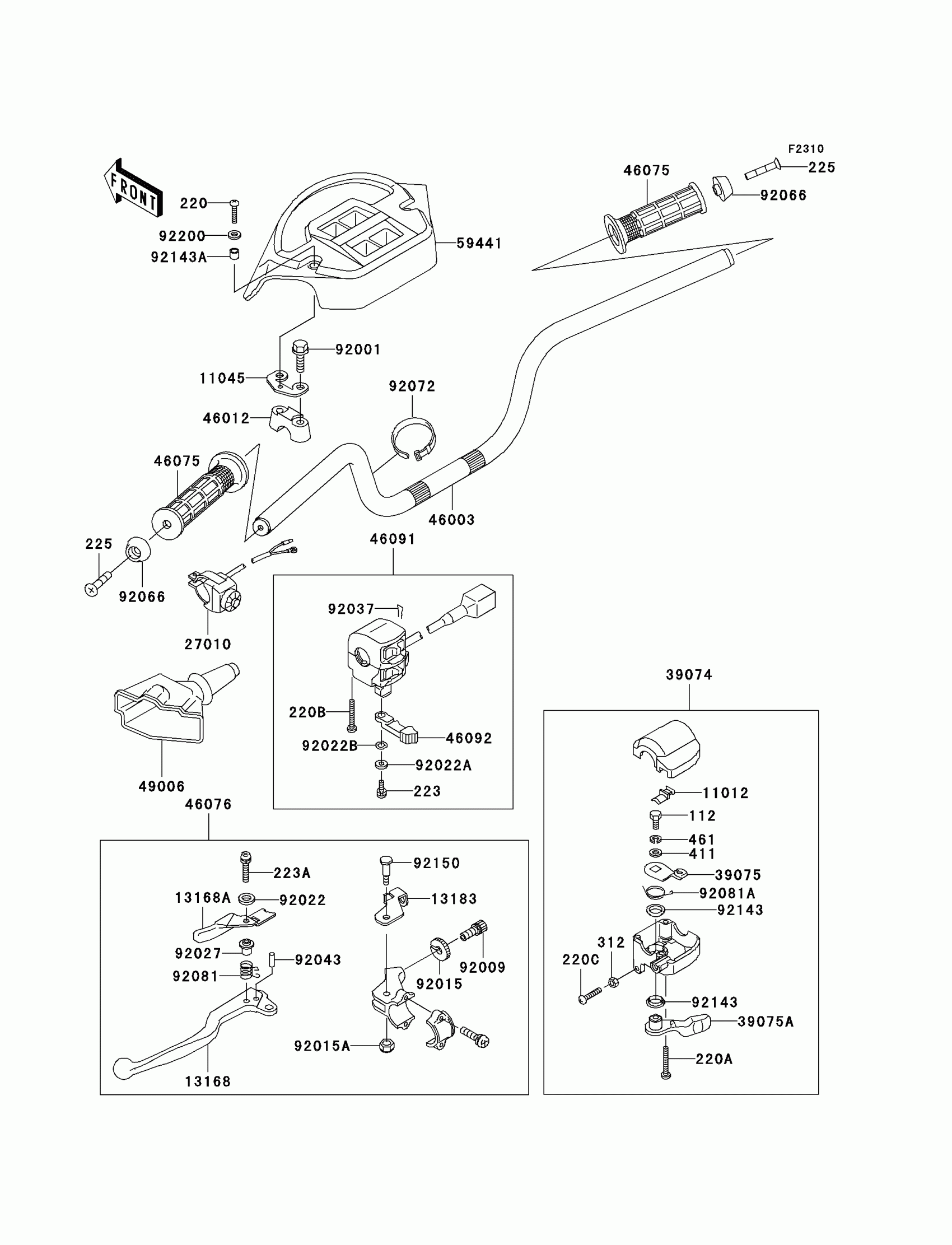

1998 Kawasaki Prairie 400 4X4 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

112

BOLT-UPSET

112D0614

1
Out of stock

220

SCREW-PAN-CROS,4X16

220C0416

1
Out of stock

220A

SCREW-PAN-CROS,5X30

220C0530

1
Out of stock

220B

SCREW-PAN-CROS,5X35

220C0535

1
Out of stock

220C

SCREW-PAN HEAD,6X30

220C0630

1
Out of stock

11012

CAP

11012-1425

1
Out of stock

11045

BRACKET,HANDLE COVER,RH

11045-1925

1
Out of stock

13168

LEVER,LH

13168-1449

1
Out of stock

13168A

LEVER,LOCK

13168-1450

1
Out of stock

13183

PLATE,LOCK

13183-1609

1
Out of stock

27010

SWITCH,LIMITTER

27010-1363

1
Out of stock

39074

LEVER-ASSY-THROTTLE

39074-1055

1

$80.61

In stock

39075

LEVER-THROTTLE,ARM

39075-1054

1

$11.03

In stock

39075A

LEVER-THROTTLE

39075-1059

1
Out of stock

46003

HANDLE

46003-1452

1
Out of stock

46012

HOLDER-HANDLE

46012-1168

1

$15.44

In stock

46075

GRIP

46075-1056

1

$23.47

In stock

46076

LEVER-ASSY-GRIP,LH

46076-1178

1

$55.99

In stock

46091

HOUSING-ASSY-CONTROL,LH

46091-1462

1
Out of stock

46092

LEVER-GRIP,CHOKE

46092-1149

1
Out of stock

49006

BOOT,CLUTCH LEVER

49006-1057

1
Out of stock

59441

COVER-HANDLE

59441-1119

1
Out of stock

92001

BOLT,FLANGED,8X58

92001-1005

1
Out of stock

92009

SCREW,CABLE ADJUST,8MM

92009-1435

1
Out of stock

92015

NUT,CABLE ADJUST LOCK,8MM

92015-1596

1
Out of stock

92015A

NUT

92015-1829

1
Out of stock

92022

WASHER,4MM

92022-1647

1
Out of stock

92022A

WASHER,5MM

92022-1837

1
Out of stock

92022B

WASHER,WAVE,5MM

92022-1838

1
Out of stock

92027

COLLAR,RETURN SPRING

92027-1336

1
Out of stock

92037

CLAMP,CLIP

92037-1836

1
Out of stock

92043

PIN,SPRING,3X16

92043-1268

1
Out of stock

92066

PLUG,HANDLE

92066-1191

1
Out of stock

92072

BAND,L=149

92072-031

1
Out of stock

92081

SPRING,LOCK RETURN

92081-1358

1
Out of stock

92081A

SPRING

92081-1685

1
Out of stock

92143

COLLAR

92143-1138

1
Out of stock

92143A

COLLAR,5.6X8X7

92143-1336

1
Out of stock

92150

BOLT

92150-1420

1
Out of stock

92200

WASHER,4.5X11.5X0.8

92200-1361

1
Out of stock

223

SCREW-PAN-WS-CROS,5X12

223C0512

1
Out of stock

223A

SCREW-PAN-WS-CROS,4X20

223D0420

1
Out of stock

225

SCREW-PAN-WSP-CROS,6X20

225C0620

1
Out of stock

312

NUT-HEX,6MM,BLACK

312C0600

1
Out of stock

411

WASHER-PLAIN,6MM

411E0600

1
Out of stock

461

WASHER-SPRING

461L0600

1
Out of stock
