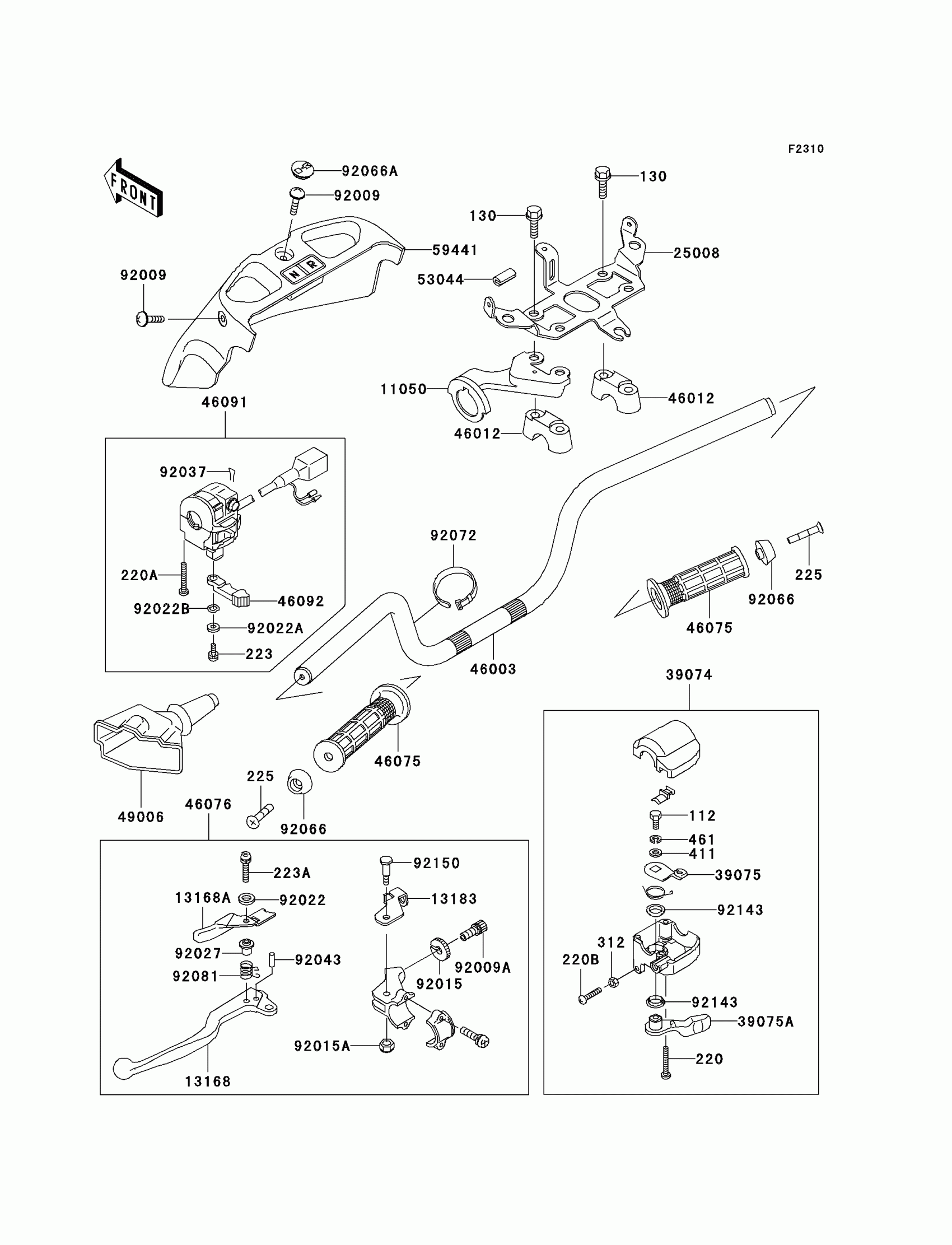

Kawasaki Prairie 400 4X4 Handlebar(C1) Diagram

#

Description
Price

112

BOLT-UPSET

112D0614

$0.53

130

BOLT-FLANGED,8X60

130P0860

Unavailable

220

SCREW-PAN-CROS,5X30

220C0530

Unavailable

11050

BRACKET,HANDLE COVER,LH

11050-1727

$16.44

13168

LEVER,LH

13168-1449

$39.50

13168A

LEVER,LOCK

13168-1673

Unavailable

13183

PLATE,LOCK

13183-1609

Unavailable

25008

BRACKET-METER

25008-1222

$40.78

39074

LEVER-ASSY-THROTTLE

39074-1055

$80.61

39075

LEVER-THROTTLE,ARM

39075-1054

$11.03

39075A

LEVER-THROTTLE

39075-1059

Unavailable

46003

HANDLE

46003-1452

$91.73

46012

HOLDER-HANDLE

46012-1168

$15.44

46075

GRIP

46075-1056

$23.47

46076

LEVER-ASSY-GRIP,LH

46076-1178

$55.99

46091

HOUSING-ASSY-CONTROL,LH

46091-1726

$233.64

46092

LEVER-GRIP,CHOKE

46092-1205

$4.34

49006

BOOT,CLUTCH LEVER

49006-1057

$20.61

53044

TRIM,L=20

53044-1292

$2.53

59441

COVER-HANDLE,F.BLACK

59441-1139-6Z

$41.63

92009

SCREW,TAPPING,5X10

92009-1332

$3.12

92009A

SCREW,CABLE ADJUST,8MM

92009-1435

$12.92

92015

NUT,CABLE ADJUST LOCK,8MM

92015-1596

$7.04

92015A

NUT

92015-1829

$3.36

92022

WASHER,4MM

92022-1647

Unavailable

92022A

WASHER,5MM

92022-1837

$2.68

92022B

WASHER,WAVE,5MM

92022-1838

$2.68

92027

COLLAR,RETURN SPRING

92027-1336

$13.56

92037

CLAMP,CLIP

92037-1836

$4.68

92043

PIN,SPRING,3X16

92043-1268

$9.92

92066

PLUG,HANDLE

92066-1191

Unavailable

92066A

PLUG,F.BLACK

92066-1498-6Z

$4.66

92072

BAND,L=149

92072-031

$3.97

92081

SPRING,LOCK RETURN

92081-1358

$4.80

92143

COLLAR

92143-1138

$3.15

92150

BOLT

92150-1420

Unavailable

220A

SCREW-PAN-CROS,5X35

220C0535

$1.73

220B

SCREW-PAN HEAD,6X30

220C0630

$1.63

223

SCREW-PAN-WS-CROS,5X12

223C0512

$3.43

223A

SCREW-PAN-WS-CROS,4X20

223D0420

Unavailable

225

SCREW-PAN-WSP-CROS,6X20

225C0620

Unavailable

312

NUT-HEX,6MM,BLACK

312C0600

Unavailable

411

WASHER-PLAIN,6MM

411E0600

$1.19

461

WASHER-SPRING

461L0600

$0.68
