1998 Kawasaki Prairie 400 4X4 Guard Diagram

← All diagrams

Find the part on the Guard diagram for your 1998 Kawasaki Prairie 400 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

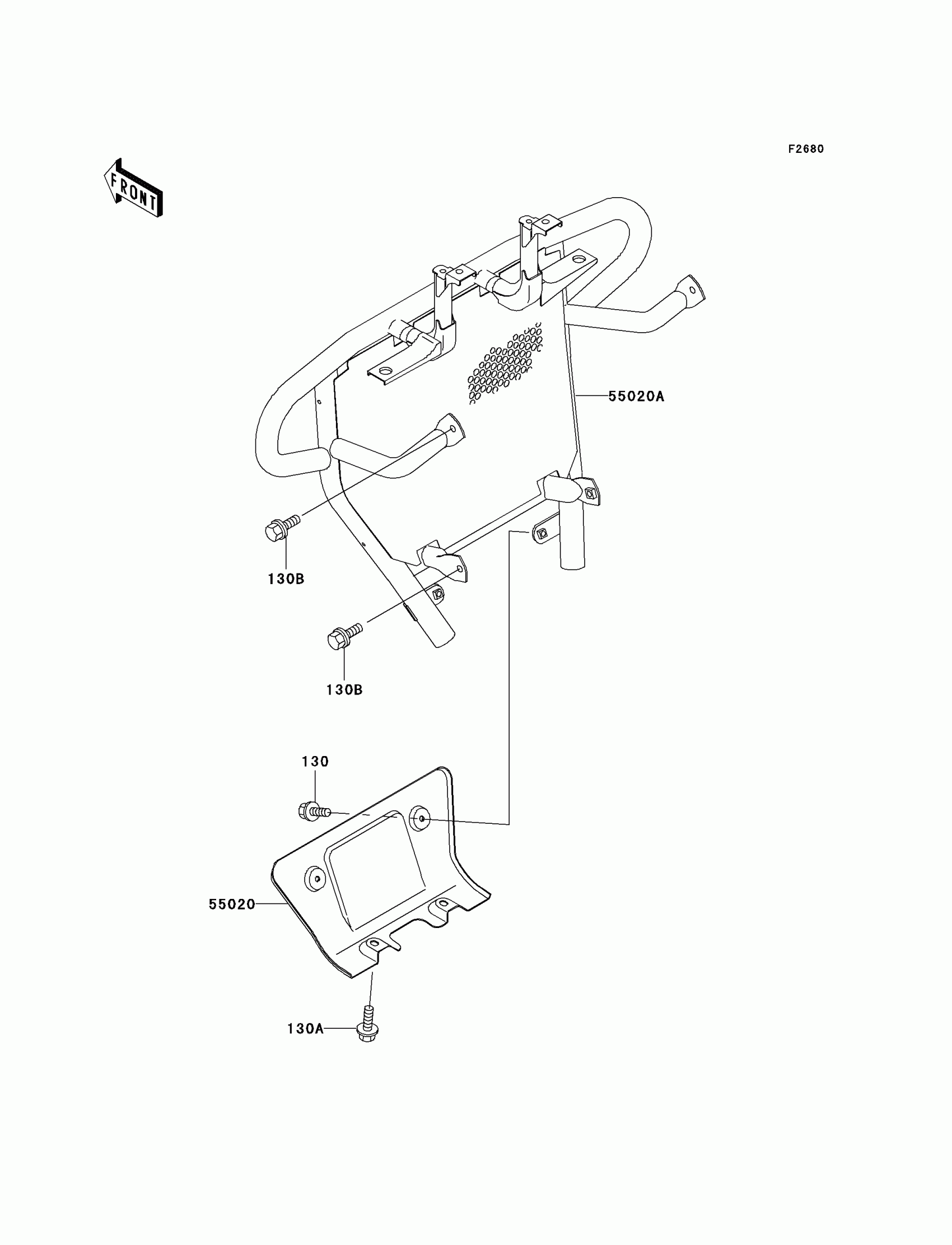

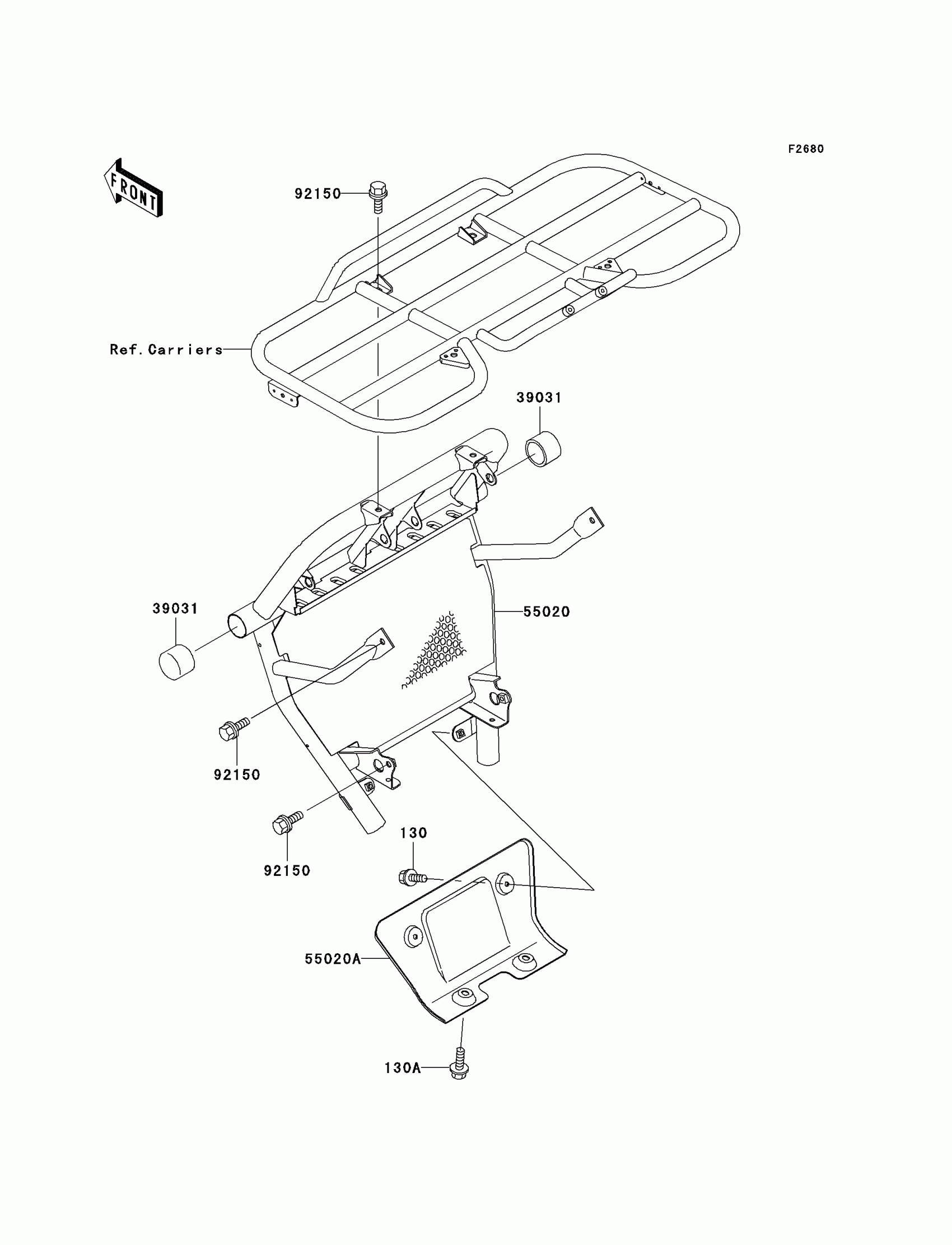

1998 Kawasaki Prairie 400 4X4 Guard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

130A

BOLT-FLANGED,8X12

130J0812

1
Out of stock

39031

CAP-END,BUMPER PIPE

39031-1059

1

$7.58

In stock

55020

GUARD,FR,S.GRAY

55020-1548-1U

1
Out of stock

55020A

GUARD,FRONT DIFF,SILVER

55020-1549-5A

1
Out of stock

92150

BOLT,8X12

92150-1780

1
Out of stock
