1998 Kawasaki Prairie 400 4X4 Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 1998 Kawasaki Prairie 400 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

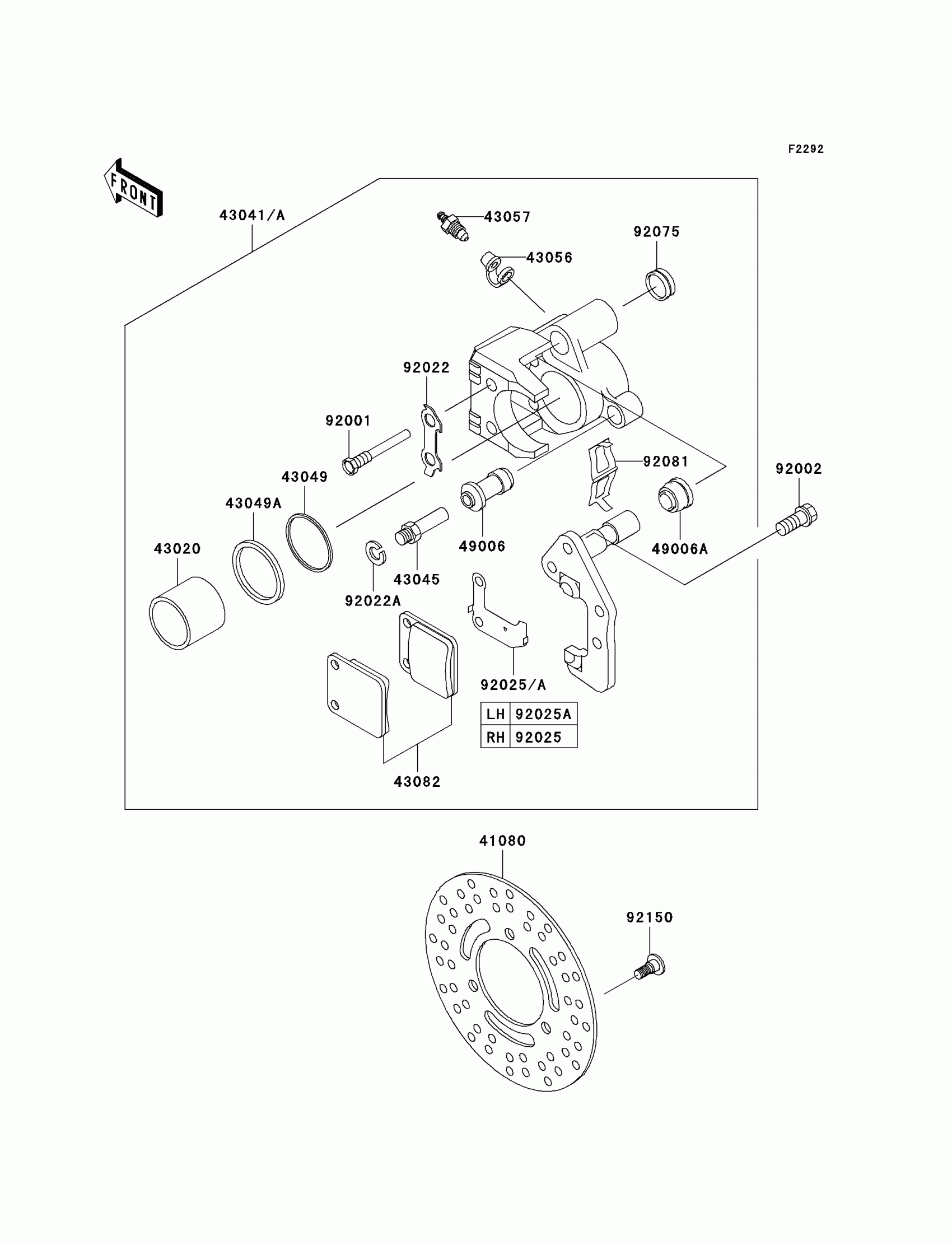

1998 Kawasaki Prairie 400 4X4 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,FR

41080-1216

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1114

1
Out of stock

43041

CALIPER-ASSY,FR,LH

43041-1592

1
Out of stock

43041A

CALIPER-ASSY,FR,RH

43041-1593

1
Out of stock

43045

SHAFT-CALIPER

43045-1010

1
Out of stock

43049

PACKING

43049-1081

1
Out of stock

43049A

PACKING

43049-1082

1
Out of stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-1201

1
Out of stock

49006

BOOT,CALIPER

49006-1088

1
Out of stock

49006A

BOOT,CALIPER

49006-1089

1
Out of stock

92001

BOLT,PAD HOLDER

92001-1723

1
Out of stock

92002

BOLT,FLANGED,8X13

92002-1737

1
Out of stock

92022

WASHER,LOCK

92022-1372

1
Out of stock

92022A

WASHER,WAVE

92022-1373

1
Out of stock

92025

SHIM,PAD

92025-1344

1
Out of stock

92025A

SHIM,PAD

92025-1817

1
Out of stock

92075

DAMPER

92075-1414

1
Out of stock

92081

SPRING,PAD

92081-1502

1
Out of stock

92150

BOLT,SOCKET,8X20

92150-1760

1
Out of stock
