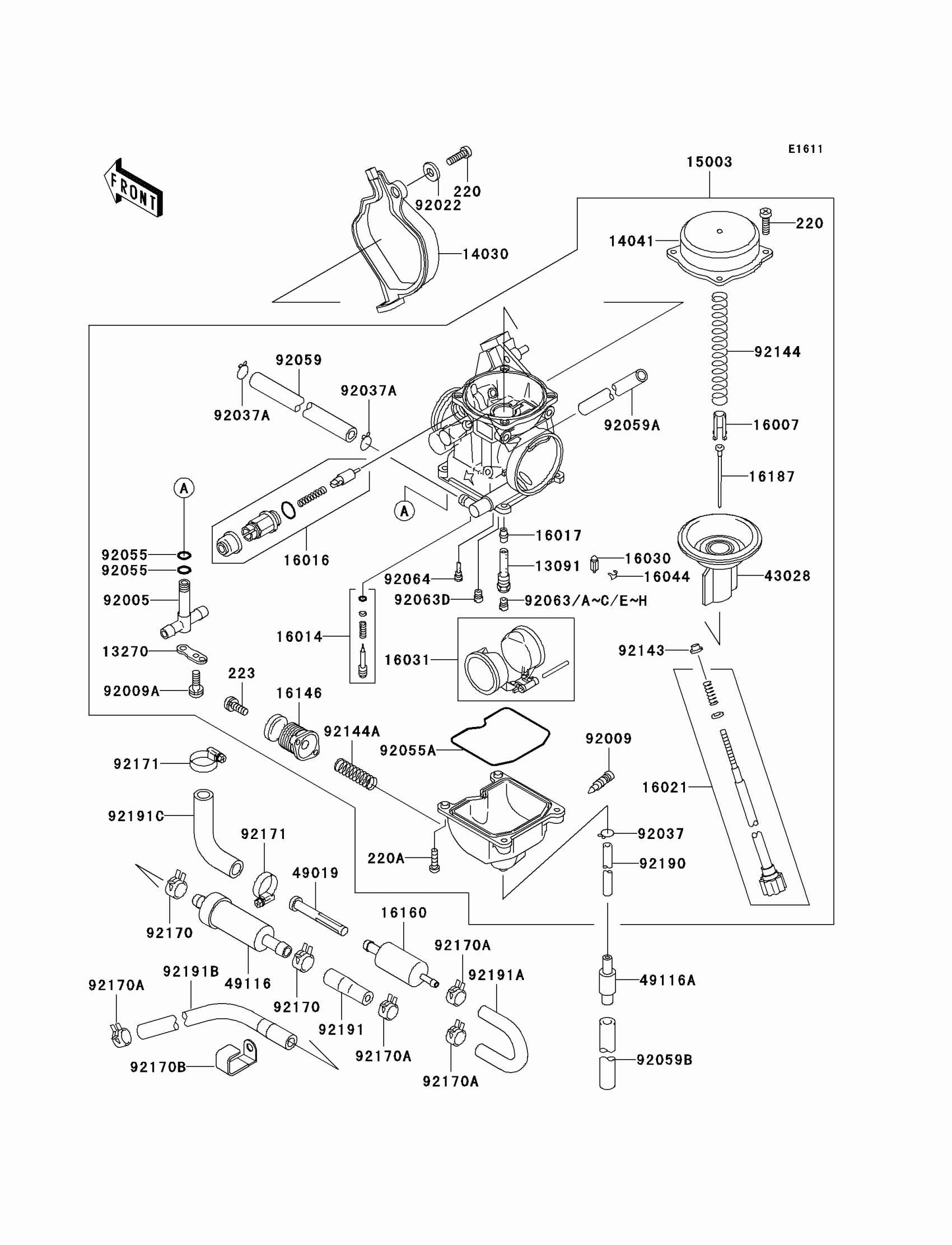

Find the part on the Carburetor diagram for your 2002 Kawasaki Prairie 400 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki Prairie 400 4X4 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,NEEDLE JET

13091-1259

1
Out of stock

13270

PLATE,FITTING STAY

13270-1063

1

$29.64

In stock

14030

COVER-CARBURETOR

14030-1054

1

$11.75

In stock

14041

1

$73.52

In stock

15003

CARBURETOR-ASSY

15003-1446

1
Out of stock

16007

SEAT-SPRING,VALVE

16007-1134

1
Out of stock

16014

SCREW-PILOT AIR

16014-1081

1
Out of stock

16016

PLUNGER,STARTER

16016-1101

1
Out of stock

16017

JET-NEEDLE,#6

16017-1400

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1213

1
Out of stock

16030

VALVE-FLOAT

16030-1007

1
Out of stock

16031

FLOAT

16031-1077

1
Out of stock

16044

CLAMP,FLOAT VALVE

16044-007

1
Out of stock

16146

COVER-ASSY,PUMP

16146-1129

1
Out of stock

16160

BODY,FILTER

16160-1151

1
Out of stock

16187

NEEDLE-JET,N6OI

16187-1092

1
Out of stock

43028

DIAPHRAGM,VALVE

43028-1081

1
Out of stock

49019

FILTER-WATER

49019-1068

1
Out of stock

49116

VALVE-ASSY

49116-1081

1
Out of stock

49116A

VALVE-ASSY

49116-1126

1
Out of stock

92005

FITTING

92005-1235

1
Out of stock

92009

SCREW,DRAIN,M6X0.75

92009-1551

1
Out of stock

92009A

SCREW

92009-1713

1
Out of stock

92022

WASHER,5.2X13X1

92022-1380

1
Out of stock

92037

CLAMP,TUBE

92037-1201

1
Out of stock

92037A

CLAMP,TUBE

92037-1531

1
Out of stock

92055

RING-O,4.5X1.5

92055-1427

1
Out of stock

92055A

RING-O,FLOAT CHAMBER

92055-1518

1
Out of stock

92059

TUBE,6.5X11.5X200

92059-1538

1
Out of stock

92059A

TUBE,6.5X9.5X260

92059-1598

1
Out of stock

92059B

TUBE,7X10X100

92059-1736

1
Out of stock

92063

JET-MAIN,#140

92063-1013

—
Out of stock

92063A

JET-MAIN,#138

92063-1015

—
Out of stock

92063B

JET-MAIN,#142

92063-1016

—
Out of stock

92063C

JET-MAIN,#145

92063-1017

—
Out of stock

92063D

JET-MAIN,#85

92063-1023

1
Out of stock

220

SCREW PAN HEAD 4X8

220B0408

1
Out of stock

220A

SCREW-PAN-CROS,4X14

220D0414

1
Out of stock

223

SCREW-PAN-WS-CROS

223C0412

1
Out of stock

92063E

JET-MAIN,#148

92063-1324

—
Out of stock

92063F

JET-MAIN,#150

92063-1330

1
Out of stock

92063G

JET-MAIN,#152

92063-1331

—
Out of stock

92063H

JET-MAIN,#155

92063-1332

—
Out of stock

92064

JET-PILOT,#35

92064-1101

1
Out of stock

92143

COLLAR

92143-1589

1
Out of stock

92144

SPRING,VACUUM VALVE

92144-1066

1
Out of stock

92144A

SPRING,PUMP

92144-1672

1
Out of stock

92170

CLAMP

92170-1492

1

$3.97

In stock

92170A

CLAMP

92170-1493

1

$3.97

In stock

92170B

CLAMP

92170-1863

1

$24.36

In stock

92171

CLAMP

92171-1158

1
Out of stock

92190

TUBE,4.5X8X330

92190-1557

1
Out of stock

92191

TUBE

92191-1427

1
Out of stock

92191A

TUBE

92191-1428

1
Out of stock

92191B

TUBE

92191-1429

1
Out of stock

92191C

TUBE

92191-1430

1
Out of stock
