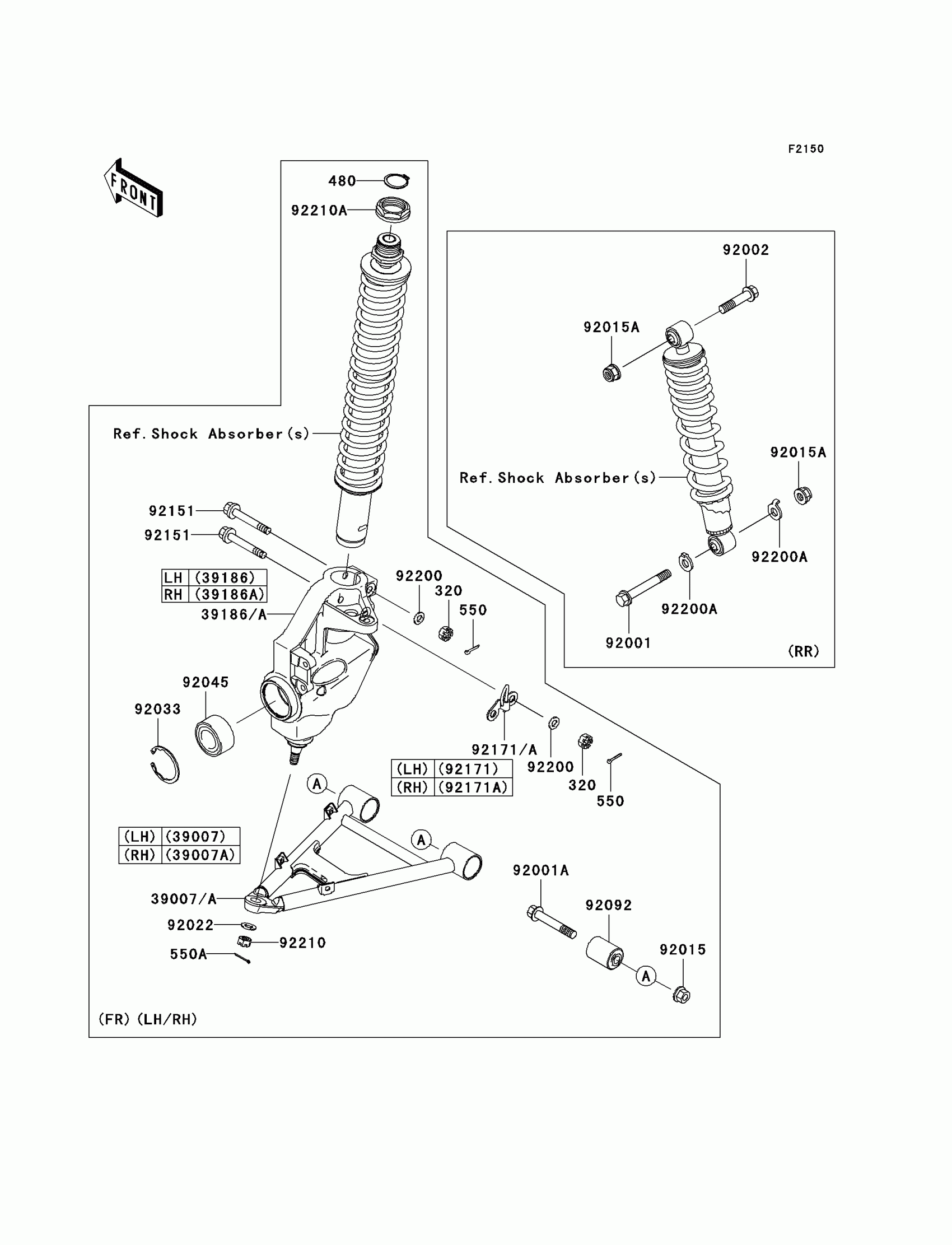

Kawasaki Prairie 360 Suspension Diagram

#

Description
Price

320

NUT-CASTLE

320H1000

Unavailable

321

NUT-CASTLE,12MM

321H1200

Unavailable

480

CIRCLIP-TYPE-C,32MM

480J3200

$1.28

550

PIN COTTER 2.0X15

550D2015

Unavailable

550A

PIN-COTTER,3.0X25

550D3025

Unavailable

39007

ARM-SUSP,LH

39007-0053

$92.68

39007A

ARM-SUSP,RH

39007-0054

$92.68

39186

KNUCKLE ASSY,FR,LH

39186-0043

$269.60

39186A

KNUCKLE ASSY,FR,RH

39186-0044

$269.60

92001

BOLT,FLANGED,12X88

92001-1693

$14.76

92001A

BOLT,FLANGED,12X75

92001-1986

$9.54

92002

BOLT,FLANGED,12X55

92002-1840

$9.02

92015

NUT,12MM

92015-1426

$5.61

92015A

NUT,LOCK,12MM

92015-1617

$6.85

92022

WASHER,12.3X22X1.6

92022-1065

$3.58

92033

RING-SNAP,55MM

92033-1274

$7.18

92045

BEARING-BALL,30BWD08A

92045-1448

$90.61

92092

BUSHING-RUBBER

92092-7501

$17.01

92151

BOLT,FLANGED,10X70

92151-1879

$11.81

92171

CLAMP,LH

92171-1499

$16.24

92171A

CLAMP,RH

92171-1500

$16.24

92200

WASHER,10.5X19X2.3

92200-1042

$2.99

92200A

WASHER,CLAW,12.7X25.4X3.4

92200-7501

Unavailable

92210

NUT,35MM

92210-1066

$18.15
