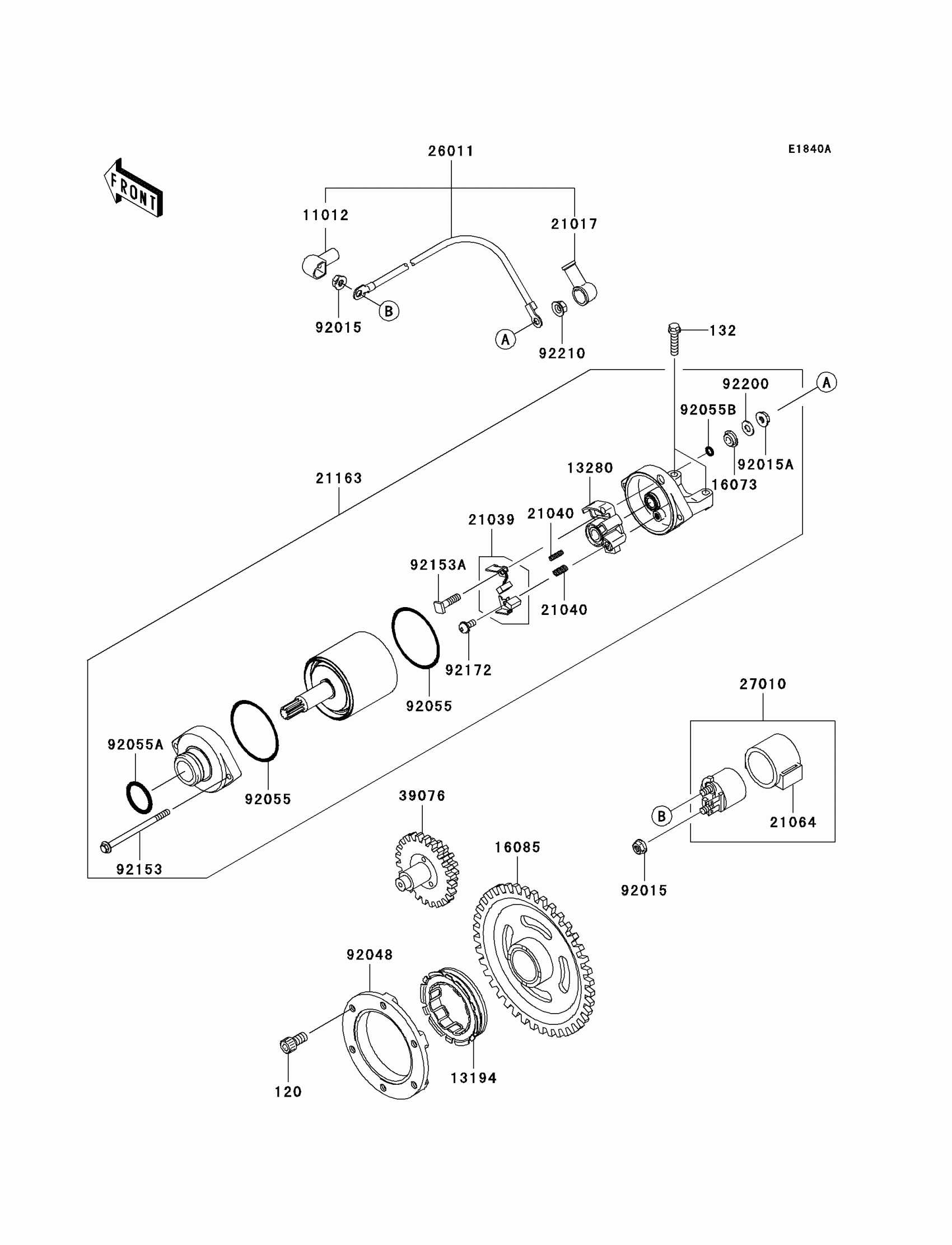

Find the part on the Starter Motor diagram for your 2009 Kawasaki Prairie® 360, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Prairie® 360 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X16

120CA0816

1
Out of stock

132

1

$4.28

In stock

11012

CAP,TERMINAL

11012-1354

1
Out of stock

13194

CLUTCH-ONEWAY

13194-1094

1
Out of stock

13280

HOLDER

13280-0261

1

$15.78

In stock

16073

INSULATOR

16073-0053

1
Out of stock

16085

GEAR,STARTER

16085-1346

1
Out of stock

21017

GROMMET,STARTER TERMINAL

21017-017

1
Out of stock

21039

BRUSH,CARBON SET

21039-0005

1
Out of stock

21040

SPRING-BRUSH

21040-0003

1
Out of stock

21064

DAMPER,MAGNETIC SWITCH

21064-002

1
Out of stock

21163

STARTER-ELECTRIC

21163-0047

1
Out of stock

26011

WIRE-LEAD,STARTER CABLE

26011-0111

1
Out of stock

27010

SWITCH,MAGNETIC

27010-1098

1
Out of stock

39076

LIMITER,STARTER

39076-1066

1

$153.19

In stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92048

RACE,ONE WAY CLUTCH

92048-0002

1
Out of stock

92055

RING-O

92055-0136

1
Out of stock

92055A

RING-O

92055-1276

1
Out of stock

92055B

RING-O,4.5X2.0

92055-1370

1
Out of stock

92153

BOLT,SET

92153-1851

1
Out of stock

92153A

BOLT

92153-1866

1
Out of stock

92172

SCREW

92172-0334

1
Out of stock

92200

WASHER

92200-0386

1
Out of stock

92210

NUT,6MM

92210-0188

1
Out of stock
