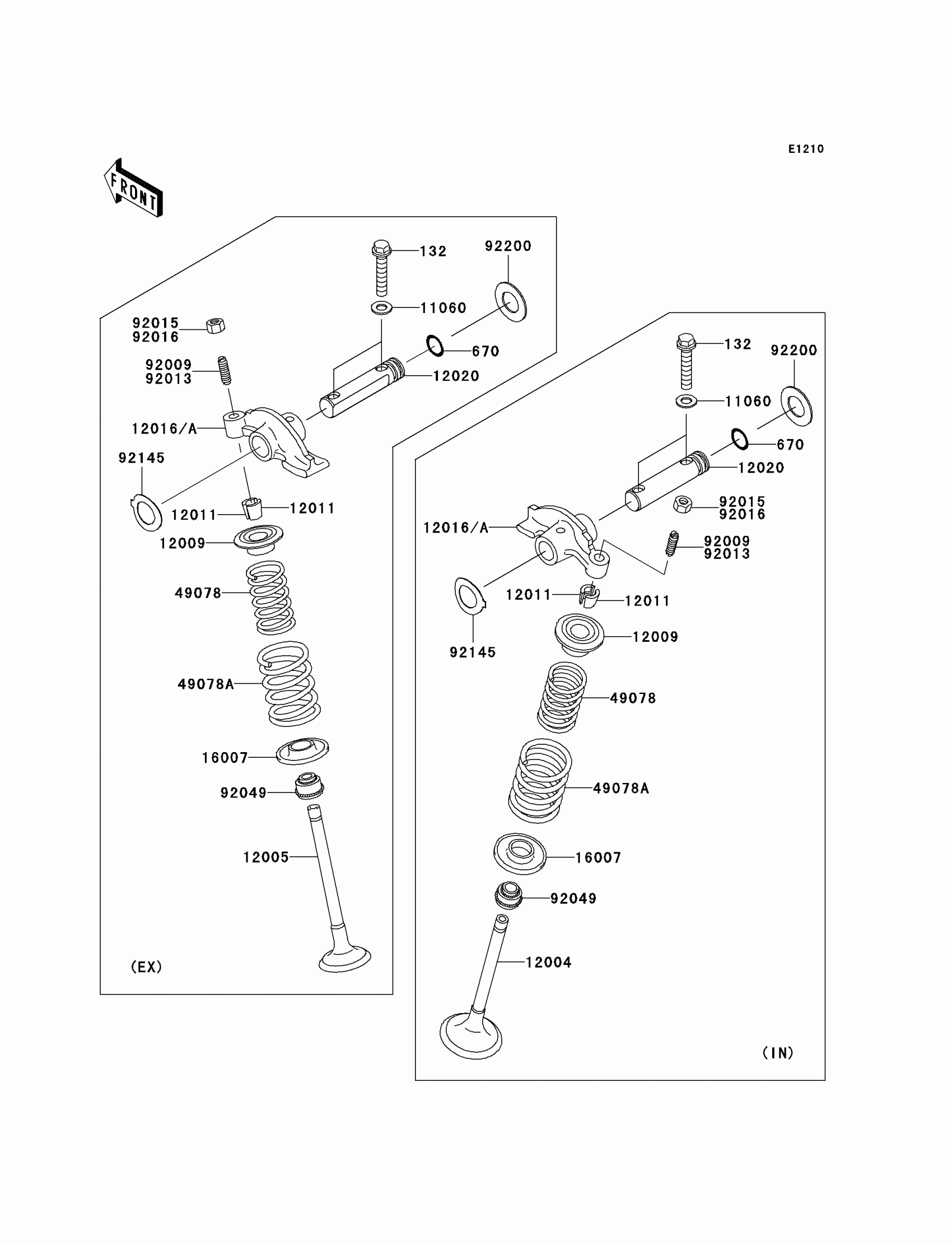

Kawasaki Prairie 360 4X4 Realtree APG HD Valve(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X30

132BD0630

$2.92

670

O RING,10MM

670D1510

$3.72

11060

GASKET,6.2X12X0.3

11060-1994

$1.98

12004

VALVE-INTAKE

12004-1155

$41.50

12005

VALVE-EXHAUST

12005-1326

$68.80

12009

RETAINER-VALVE SPRING

12009-005

$10.37

12011

COLLET,RETAINER

12011-004

$4.34

12016

ARM-ROCKER

12016-0024

$112.32

12020

SHAFT-ROCKER

12020-1085

$34.60

16007

SEAT-SPRING,VALVE

16007-1024

$5.15

49078

SPRING-ENGINE VALVE,INNER

49078-1209

$9.75

49078A

SPRING-ENGINE VALVE,OUTER

49078-1210

$9.75

92009

SCREW,VALVE ADJUST

92009-1109

$1.49

92015

NUT,VALVE ADJUST LOCK

92015-1137

$0.93

92049

SEAL-OIL,RV37129.5

92049-016

$14.42

92145

SPRING,ROCKER SHAFT

92145-1532

$3.17

92200

WASHER,13.4X25X1.0

92200-0045

$2.97
