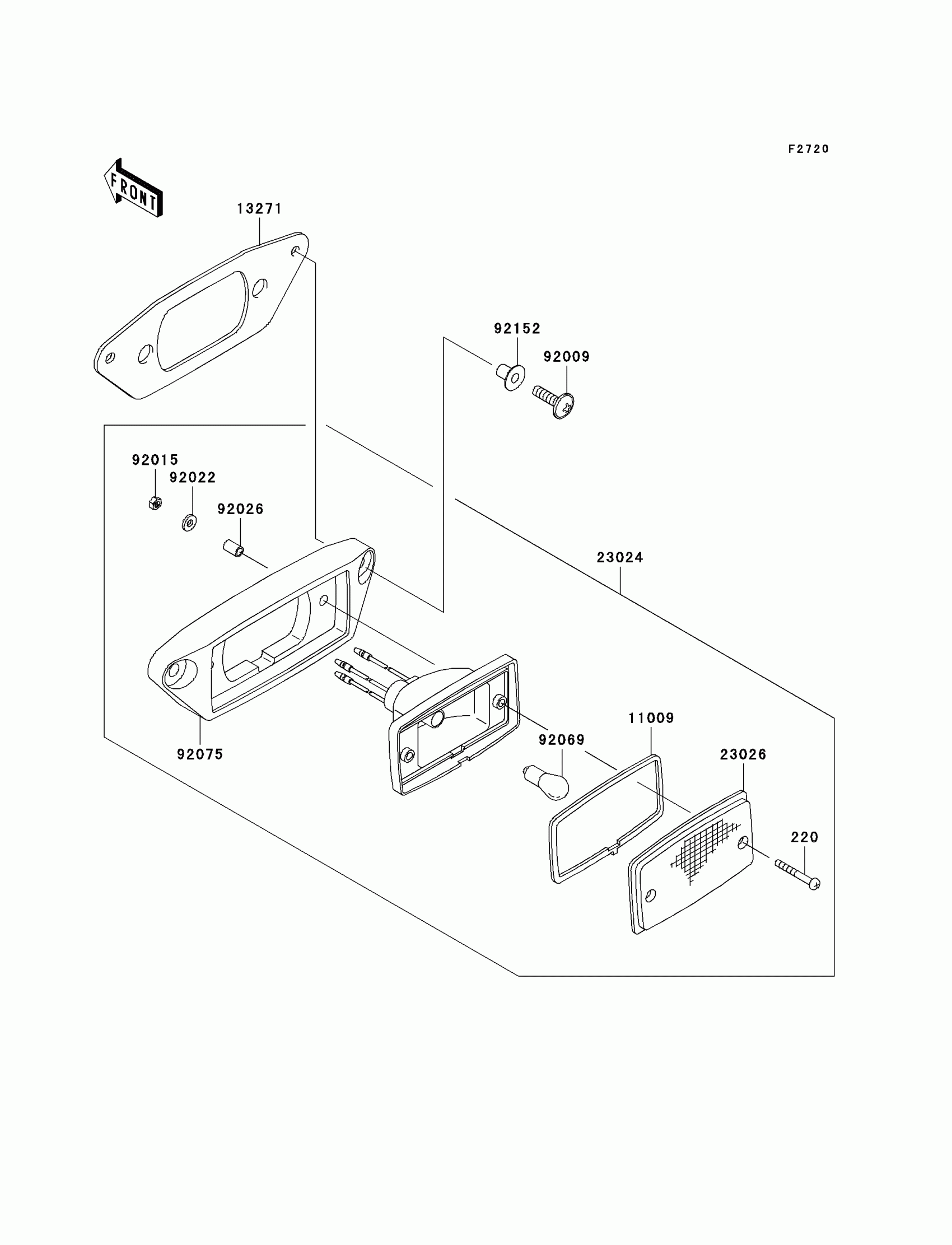

Kawasaki Prairie 360 4X4 Realtree APG HD Taillight(s) Diagram

Description

Price

220

SCREW-PAN-CROS,4X30

220AB0430

$3.53

11009

GASKET,TAIL LAMP

11009-4004

$7.49

13271

PLATE,TAIL LAMP

13271-0033

$1.75

23024

LAMP-ASSY-TAIL

23024-0001

$127.06

23026

LENS,TAIL LAMP

23026-1239

$16.56

92009

SCREW,6X22,BLACK

92009-1256

$2.04

92015

NUT,4MM

92015-1550

$2.68

92022

WASHER,PLAIN,4MM

92022-1762

$2.68

92026

SPACER,4.5X6.5X10

92026-1261

$4.61

92069

BULB,12V 18/5W

92069-1089

$3.17

92075

DAMPER,TAIL LAMP

92075-1782

$44.48

92152

COLLAR

92152-0015

$1.66
