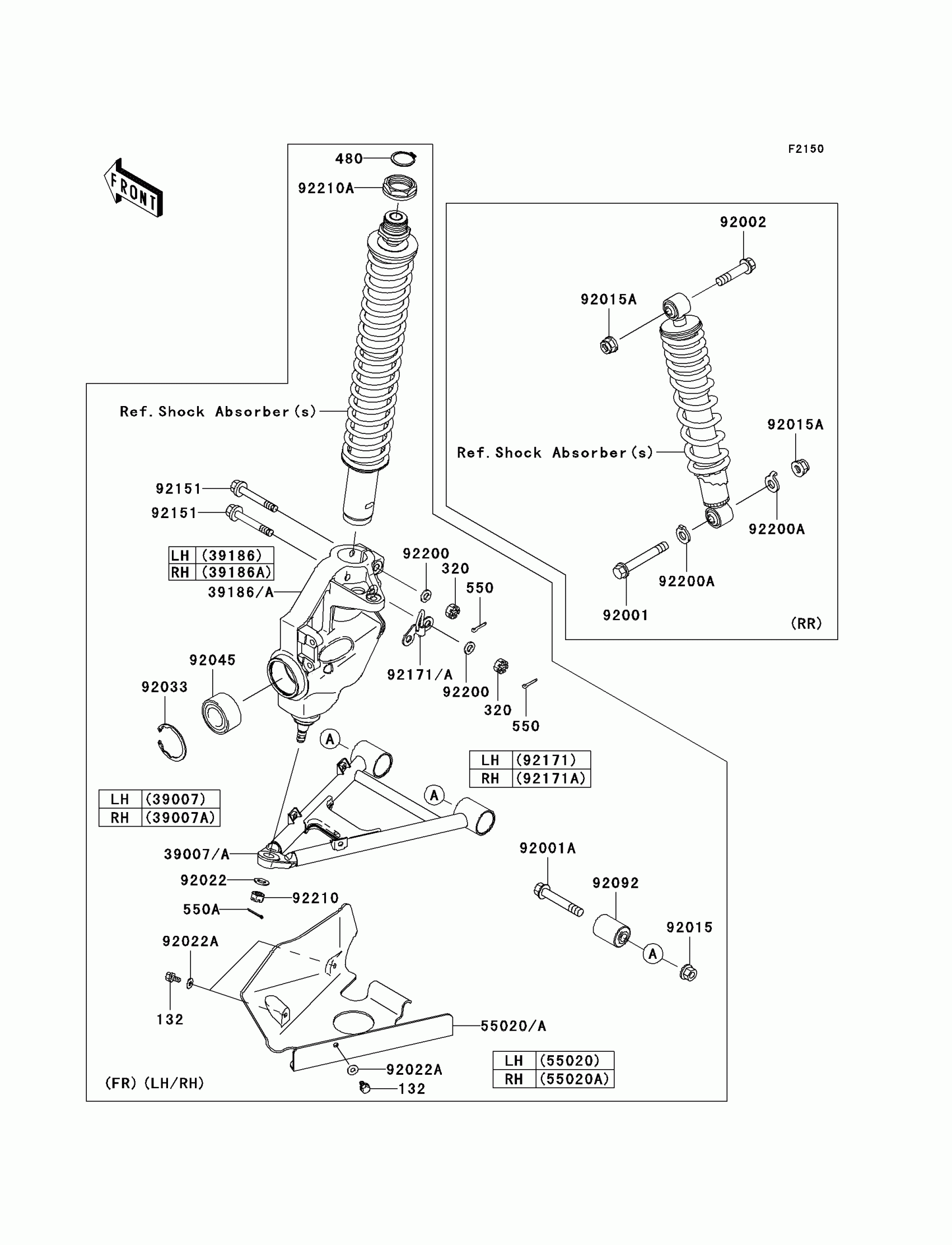

Kawasaki Prairie 360 4X4 Realtree APG HD Suspension Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$1.55

320

NUT-CASTLE

320BA1000

$8.27

480

CIRCLIP-TYPE-C,32MM

480J3200

$1.34

550

PIN-COTTER,2.0X15

550AA2015

$0.94

550A

PIN-COTTER,3.0X25

550AA3025

$0.61

39007

ARM-SUSP,LH

39007-0053

$92.68

39007A

ARM-SUSP,RH

39007-0054

$92.68

39186

KNUCKLE ASSY,FR,LH

39186-0043

$269.60

39186A

KNUCKLE ASSY,FR,RH

39186-0044

$269.60

55020

GUARD,FRONT AXLE,LH

55020-1768

$11.01

55020A

GUARD,FRONT AXLE,RH

55020-1769

$13.19

92001

BOLT,FLANGED,12X88

92001-1693

$14.76

92001A

BOLT,FLANGED,12X75

92001-1986

$9.54

92002

BOLT,FLANGED,12X55

92002-1840

$9.02

92015

NUT,12MM

92015-1426

$5.84

92015A

NUT,LOCK,12MM

92015-1617

$7.14

92022

WASHER,12.3X22X1.6

92022-1065

$3.58

92022A

WASHER,7X16X1.2

92022-1344

$3.12

92033

RING-SNAP,55MM

92033-1274

$7.48

92045

BEARING-BALL,30BWD08ACA13

92045-0095

Unavailable

92092

BUSHING-RUBBER

92092-7501

$17.72

92151

BOLT,FLANGED,10X70

92151-1879

$11.81

92171

CLAMP,LH

92171-1499

$16.24

92171A

CLAMP,RH

92171-1500

$16.24

92200

WASHER,10.5X19X2.3

92200-1042

$3.12

92200A

WASHER,CLAW,12.7X25.4X3.4

92200-7501

Unavailable

92210

NUT,CASTLE,12MM

92210-0395

$3.07

92210A

NUT,35MM

92210-1066

$18.15
