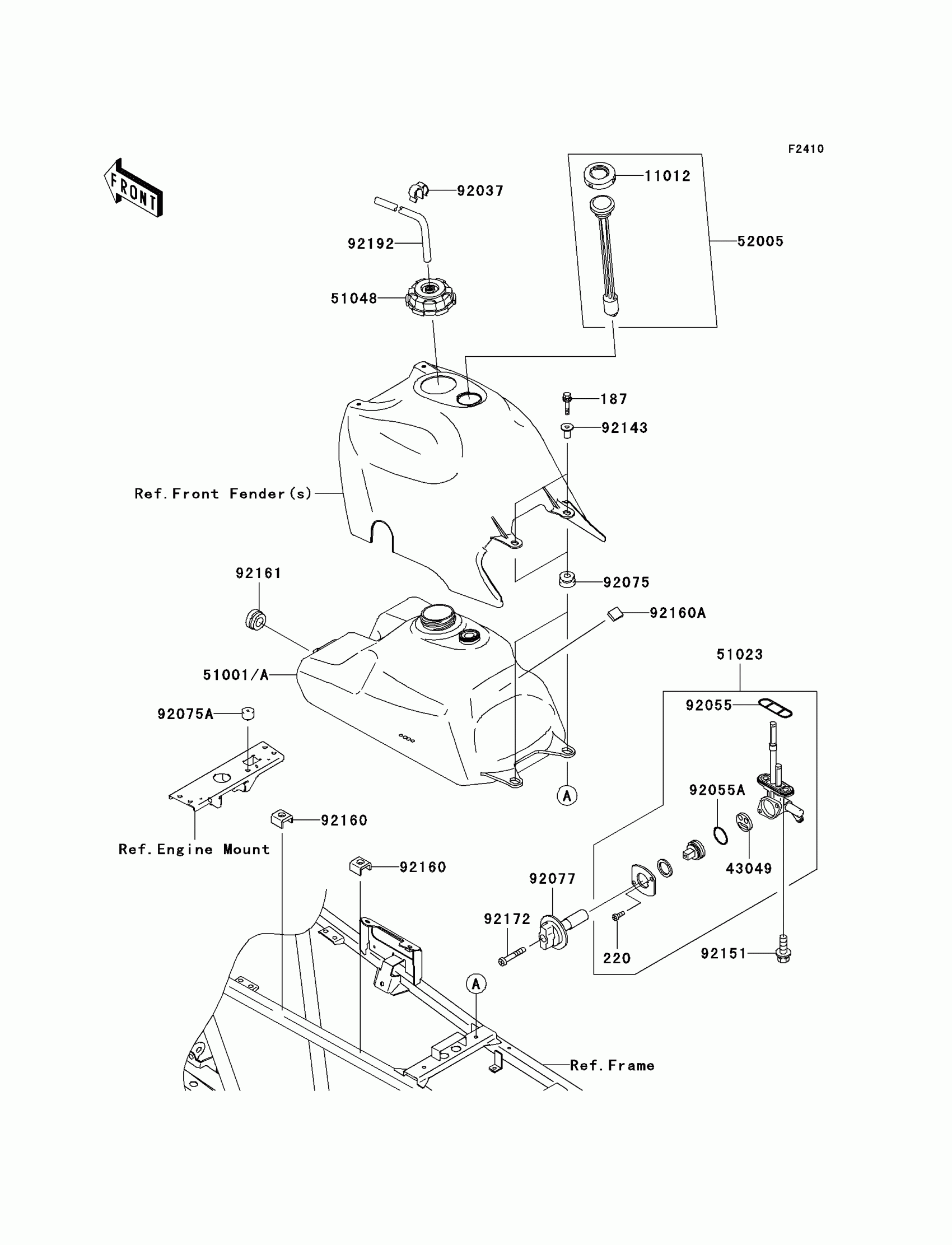

Kawasaki Prairie 360 4X4 Realtree APG HD Fuel Tank Diagram

Description

Price

187

BOLT-UPSET-WSP,6X35

187BA0635

$1.04

220

SCREW-PAN-CROS,3X8

220AA0308

$0.56

11012

CAP,FUEL GAUGE

11012-1627

$13.41

43049

PACKING,TAP VALVE

43049-1091

$5.77

51001

TANK-COMP-FUEL

51001-0199

$165.81

51023

TAP-ASSY,FUEL

51023-1402

$115.49

51048

CAP-ASSY-TANK,FUEL

51048-1133

$59.59

52005

GAUGE,FUEL

52005-7501

Unavailable

92037

CLAMP

92037-1458

$5.66

92055

RING-O,FUEL TAP PACKING

92055-1112

$3.97

92055A

RING-O,TAP LEVER

92055-1419

$3.97

92075

DAMPER

92075-1787

$5.14

92075A

DAMPER

92075-1876

$10.02

92077

KNOB,FUEL TAP

92077-1098

$15.42

92143

COLLAR,L=19.6

92143-1100

$6.20

92151

BOLT,6X14

92151-1198

$3.92

92160

DAMPER

92160-1773

$3.29

92160A

DAMPER,25X25

92160-3864

$2.66

92161

DAMPER

92161-7502

$5.51

92172

SCREW,4X25

92172-1073

$1.87

92192

TUBE,5X9X450

92192-0750

$9.42
