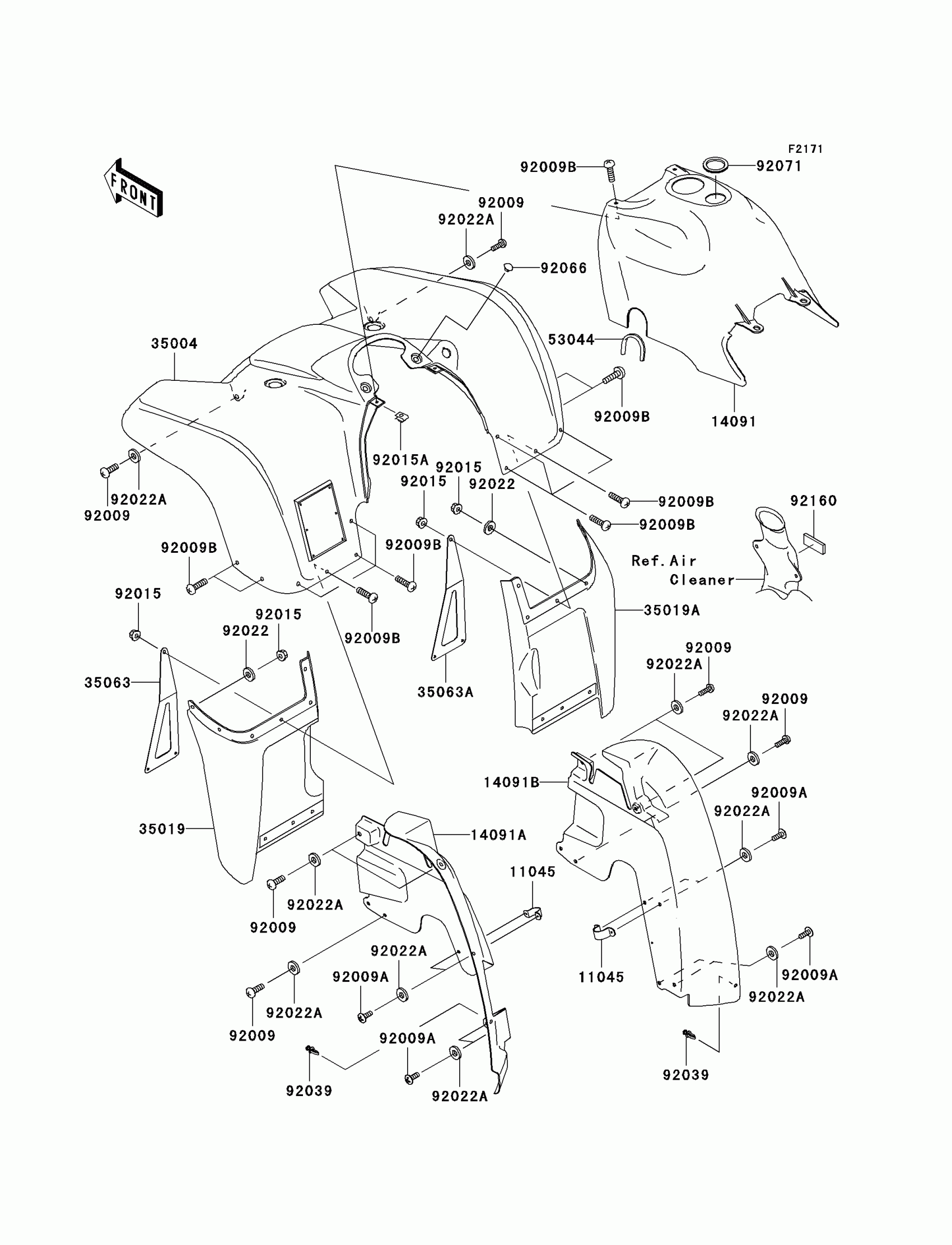

Kawasaki Prairie 360 4X4 Realtree APG HD Front Fender(s) Diagram

Description

Price

11045

BRACKET,FENDER

11045-1882

$7.56

14091

COVER,FUEL TANK,CAMOUFLAGE

14091-0007-16P

Unavailable

14091B

COVER,INNER FLAP,LH

14091-7521

$30.55

14091C

COVER,INNER FLAP,RH

14091-7527

$30.55

35004

FENDER-FRONT,CAMOUFLAGE

35004-0001-16P

Unavailable

35019

FLAP,FR,LH,F.BLACK

35019-0021-6Z

$21.17

35019A

FLAP,FR,RH,F.BLACK

35019-0022-6Z

$21.03

35063

STAY,FRONT FENDER,LH

35063-7506

$8.93

35063A

STAY,FRONT FENDER,RH

35063-7507

$8.93

53044

TRIM,L=150

53044-1303

$3.92

92009

SCREW,TAPPING,6X16

92009-1166

$4.36

92009A

SCREW,TAPPING,5X14

92009-1197

$3.12

92009B

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM

92015-1367

$2.93

92015A

NUT,CLAMP,6MM

92015-1678

$4.37

92022

WASHER,6.5X16X1.0

92022-1093

$1.73

92022A

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.53

92039

RIVET

92039-1229

$0.80

92066

PLUG

92066-1485

$2.02

92071

GROMMET,FUEL TANK COVER

92071-7503

Unavailable

92160

DAMPER

92160-1834

$5.07
